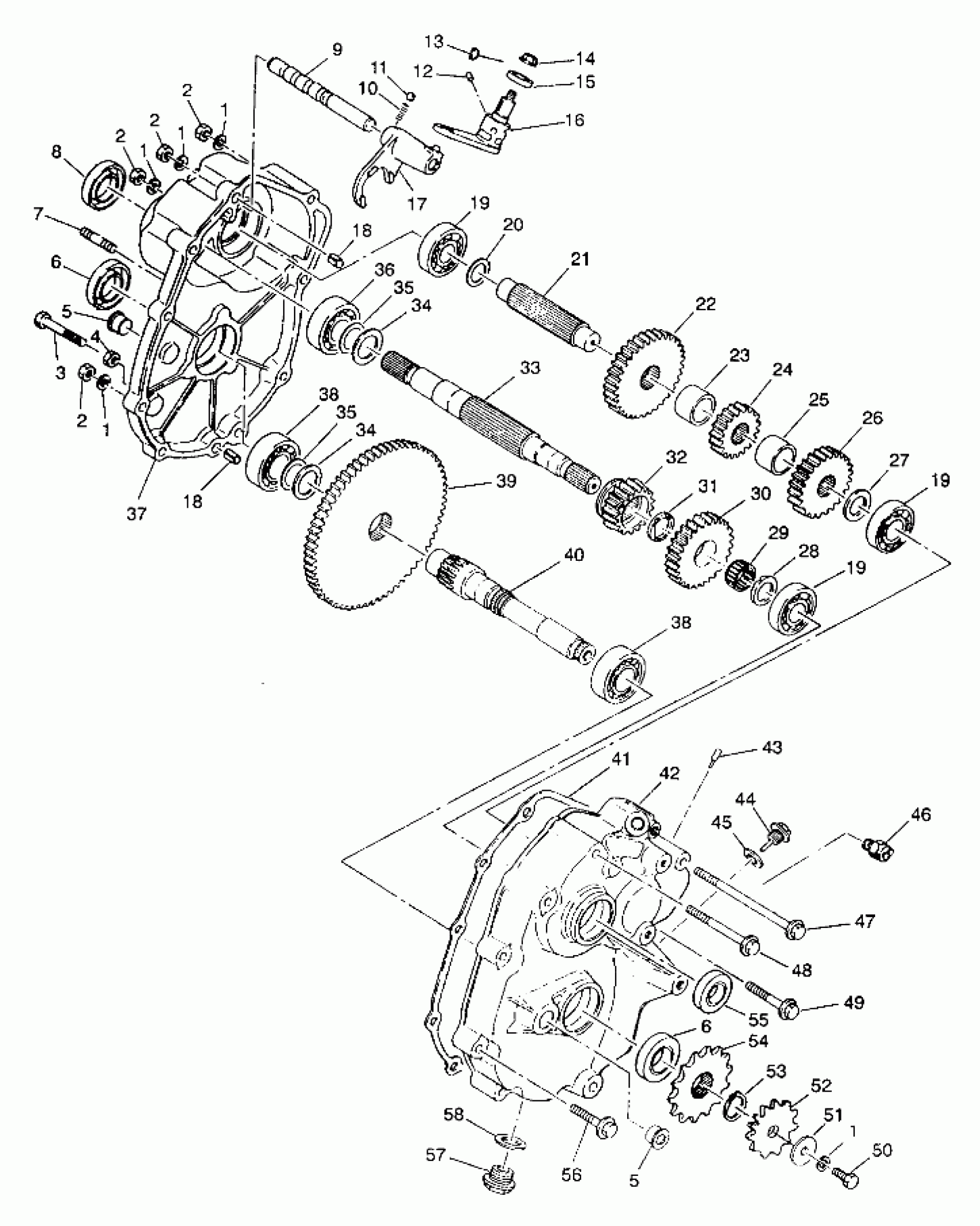

Polaris 250 4X4 - W938127 GEARCASE ASSEMBLY 4X4 250 W938127 (4924042404031A) Diagram

#

Description
Price

-

TRANSMISSION(4X4) [Cannot Purchase as Assembly] (Incl. 1-58)

1341066

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

3

BOLT(10)

7515485

$3.03

4

NUT(10)

7542404

$1.59

5

SUPPORT

3231517

Unavailable

5

SUPPORT

3231517

Unavailable

6

SEAL, OIL

3231516

Unavailable

6

SEAL, OIL

3231516

Unavailable

7

STUD

3231608

Unavailable

8

SEAL, OIL

3231507

Unavailable

9

SHAFT, SHIFT

3231579

$13.59

10

SPRING

3231550

$1.49

11

BALL, STEEL

3231502

Unavailable

12

PIN

3231607

Unavailable

13

KEY, HI-PRO

7721113

Unavailable

14

NUT, LOCK

3231555

Unavailable

15

SEAL, OIL

3231521

Unavailable

16

SHAFT, SELECT

3231584

Unavailable

17

SHIFTER

3231501

$78.39

18

PIPE, KNOCK

3231543

$1.41

18

PIPE, KNOCK

3231543

$1.41

19

BEARING

3231511

Unavailable

19

BEARING

3231511

Unavailable

19

BEARING

3231511

Unavailable

20

SHIM 20, 0.3 (0.3)

3231564

Unavailable

20

SHIM 20, 0.1 (0.1)

3231565

Unavailable

21

SHAFT

3231512

$34.70

22

GEAR

3231514

Unavailable

23

COLLAR

3231581

$3.60

24

GEAR (18T)

3231510

$29.59

25

COLLAR

3231587

Unavailable

26

GEAR

3231529

$55.54

27

Washer

3231513

$4.39

28

WASHER

3231527

Unavailable

29

BEARING,NEEDLE

3231526

Unavailable

30

GEAR

3231524

$57.14

31

WASHER

3231525

Unavailable

32

GEAR (18)

3231585

Unavailable

33

SHAFT, INPUT

3231580

Unavailable

34

WASHER

3231505

$3.40

34

WASHER

3231505

$3.40

35

SHIM 25, 0.3 (0.3)

3231562

Unavailable

35

SHIM 25, 0.1 (0.1)

3231563

Unavailable

35

SHIM 25, 0.3 (0.3)

3231562

Unavailable

35

SHIM 25, 0.1 (0.1)

3231563

Unavailable

36

BEARING

3231506

Unavailable

37

CASE, LH

3231594

Unavailable

38

BEARING

3231609

Unavailable

38

BEARING

3231609

Unavailable

39

GEAR (66)

3231582

Unavailable

40

SHAFT, OUTPUT

3231588

Unavailable

41

PACKING

3231553

Unavailable

42

CASE, RH

3231583

Unavailable

43

PIPE,BREATHER

3231548

Unavailable

44

PLUG, OIL

3231561

Unavailable

45

GASKET

3231539

Unavailable

46

SW,REV./NEUT.INDIC.

4110062

$32.37

47

BOLT

3231606

Unavailable

48

BOLT

3231603

Unavailable

49

BOLT

3231605

Unavailable

50

BOLT

3231536

Unavailable

51

WASHER(10)

3231599

Unavailable

52

SPKT,13T,SPLINED (Optional) Splined

3221041

$43.99

52

SPKT, 11T

3221058

$74.99

53

C RING

3231531

Unavailable

54

SPKT, 12T

3221044

$43.99

55

SEAL, OIL

3231528

Unavailable

56

BOLT

3231602

Unavailable

57

PLUG,DRAIN,20MM,MAGNET

3231569

Unavailable

58

GASKET

3231592

Unavailable
