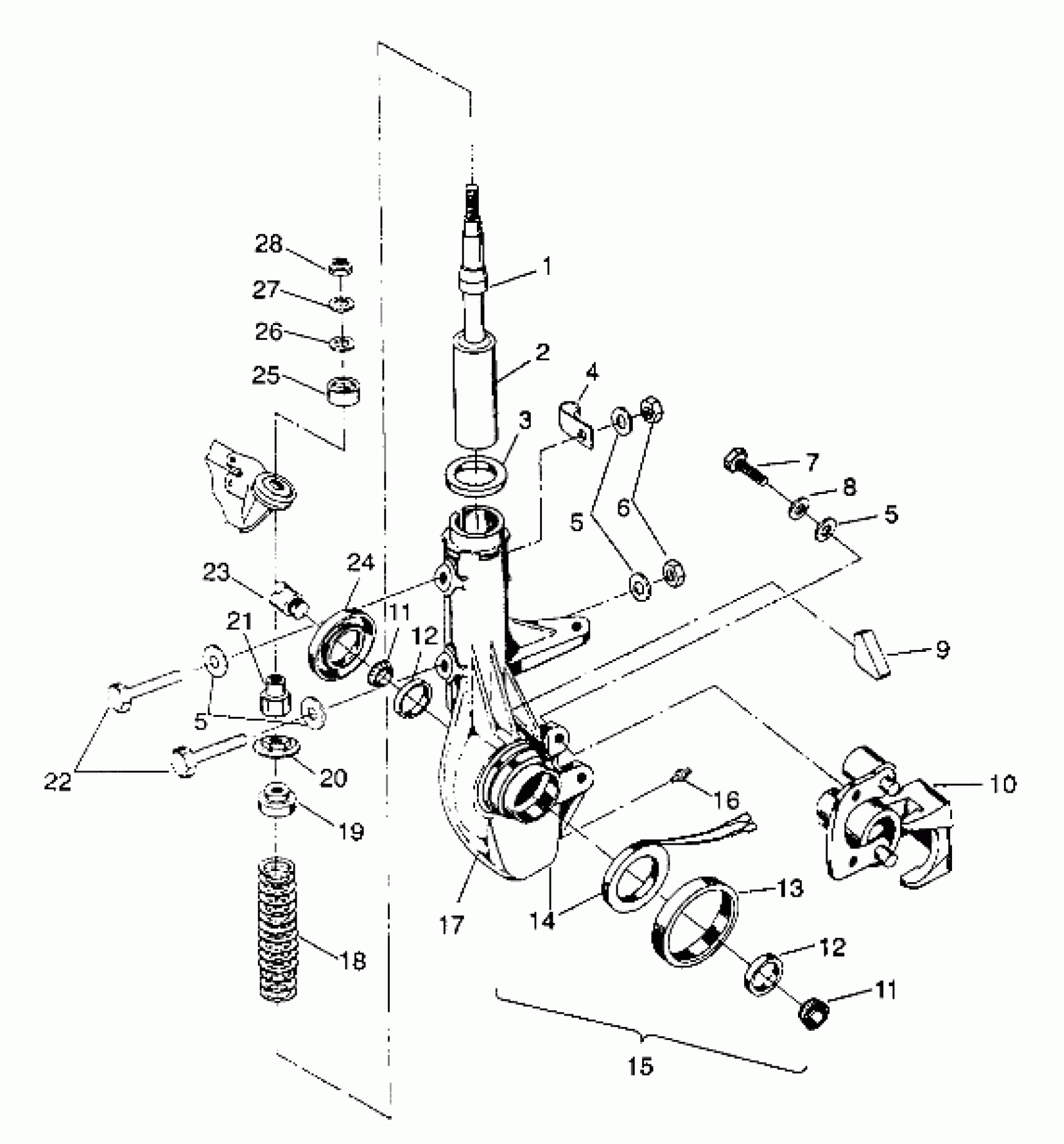

Polaris 250 4X4 - W938127 FRONT STRUT ASSEMBLY 4X4 250 W938127 (4924042404013A) Diagram

#

Description
Price

1

BUMPER, RUBBER

5410429

Unavailable

2

SHOCK,FR.STRUT Substituted by 7041451

7041211

Unavailable

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP(10) Substituted by 7080573

7080347

Unavailable

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

NUT FLEX-LOC(10)

7542303

$6.39

7

SCREW, CAP(10)

7512365

$1.49

8

LOCK WASHER(10)

7552901

$1.49

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

CALIPER ASM,RH BRAKE Substituted by 1910174

1910075

Unavailable

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

SLEEVE,STRUT HUB SEAL

5222193

$59.99

14

COIL, MAGNETIC

4170003

$59.99

15

HUB STRUT ASM,LH (Incl. 9,13-15,17)

1843033

Unavailable

15

HUB STRUT ASM,RH (Incl. 9,13-15,17)

1843034

Unavailable

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

17

SUPPORT,LH HUB STRUT [No Longer Available]

5130702

Unavailable

17

SUPPORT,RH HUB STRUT [No Longer Available]

5130703

Unavailable

18

SPRING,COIL,FR.SHOCK

7041238-067

Unavailable

19

RETAINER,SPRING,TOP

5220602

Unavailable

20

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

21

SPACER,THREADED

5130668

$27.99

22

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

23

Asm., Drive Shaft w/Sleeve (See CV Joint Pg.12, Ref.10)

-------

Unavailable

24

SEAL, HUB STRUT

3610028

$31.99

25

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

26

SPACER-RUBBER

5810291

$3.99

27

WASHER(10)

7555749

$1.49

28

NUT,FLEX LOC(10)

7542507

$3.99
