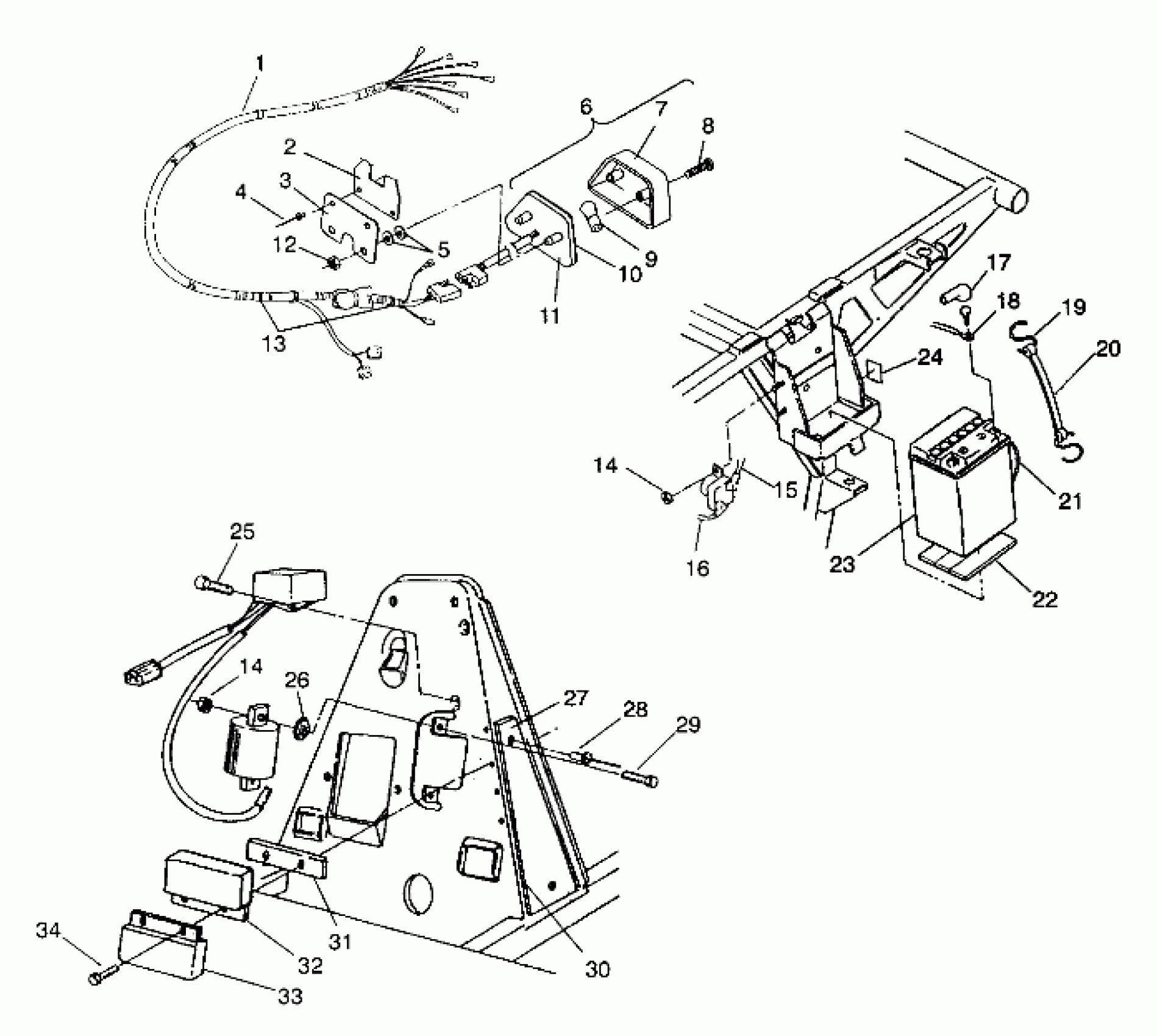

Polaris 250 4X4 - W938127 ELECTRICAL/TAILLIGHT ASSEMBLY 4X4 250 W938127 (4924042404033A) Diagram

#

Description
Price

1

HARNESS, MAIN WIRE,4WHL

2460405

Unavailable

2

BRACKET,T/L MOUNT

5240244-067

Unavailable

3

ISOLATOR,TAILLIGHT

5211391-067

$13.39

4

RIVET(50)

7621470

$3.17

5

WASHER(10) Substituted by 7558301

7555776

Unavailable

6

TAIL LIGHT ASM.

2432034

$55.99

7

LENS,TAILLIGHT

4032046

$32.37

8

Screw, Taillight

4032029

$4.79

9

BULB,TAILLIGHT

4030043

$6.46

10

GASKET,TAILLIGHT

4032045

$4.03

11

BACKING,TAILLIGHT

4032064

$83.99

12

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

NUT(10)

7541925

$1.49

14

NUT(10)

7541925

$1.49

15

CABLE,SOLENOID-STRTR.

4010075

Unavailable

16

CABLE,SOLENOID/STARTER

4010064

Unavailable

17

INSULATOR-CABLE

5410346

$6.39

18

CABLE,BATTERY-SOLENOID

4010076

Unavailable

19

HOOK-BATT.H/D(10)

7010032

$1.59

20

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

21

KIT-TANK VENT

2200190

Unavailable

22

PAD-BATTERY

5810290

$7.27

23

Battery

4140006

$99.99

24

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

25

BOLT(10)

7512232

$1.49

26

WASHER(10)

7571602

$4.79

27

BOARD,TERMINAL

4040022

Unavailable

28

RIVET, POP(50)

7621322

$0.56

29

SCREW(10)

7512007

$3.99

30

SHIELD,TERM.BOARD

5431152

Unavailable

31

HEAT SINK

5210650

Unavailable

32

RECTIFIER, VOLTAGE

4060087

Unavailable

33

LIMITER,REV.SPEED

4060085

Unavailable

34

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
