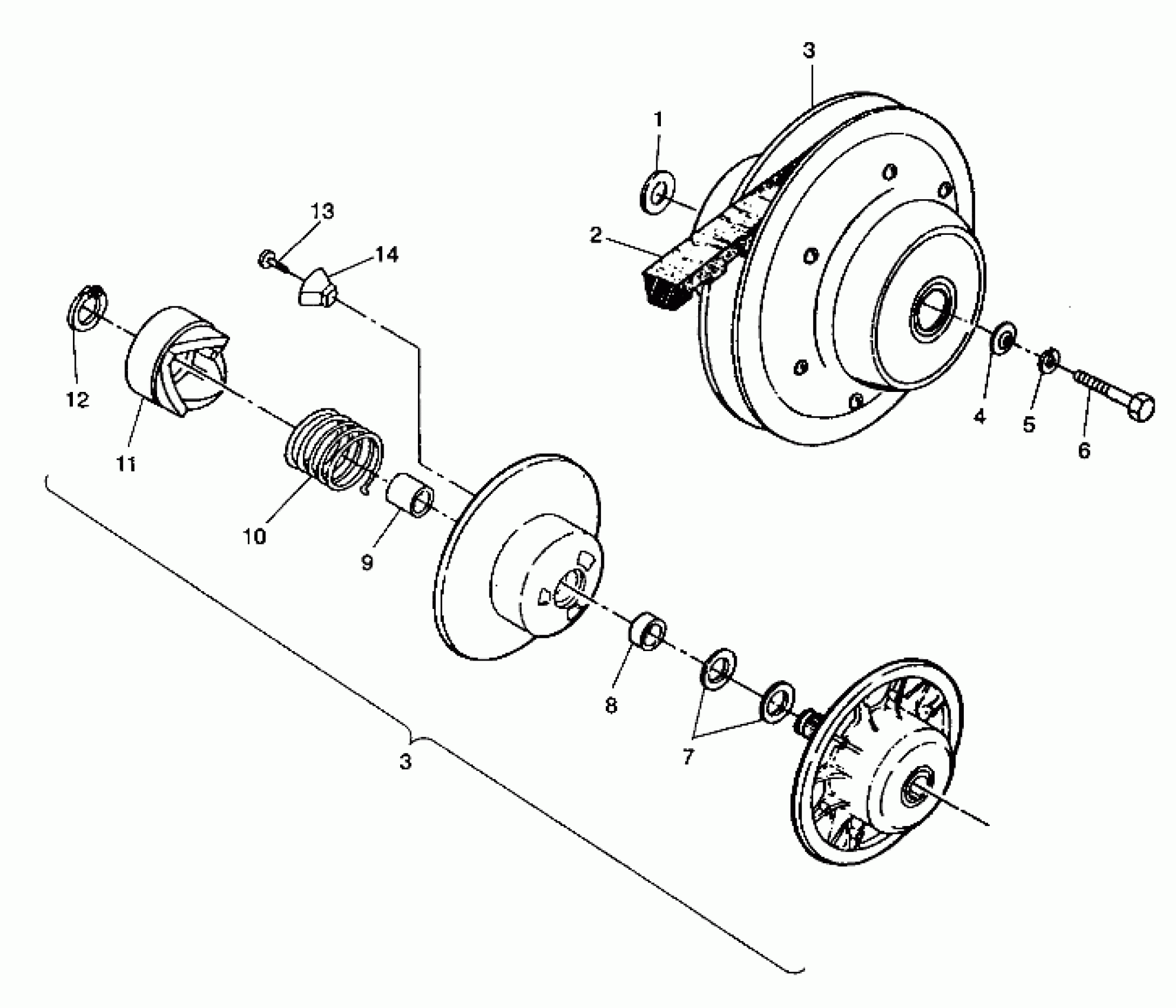

Polaris 250 4X4 - W938127 DRIVEN CLUTCH ASSEMBLY 4X4 250 W938127 (4924042404024A) Diagram

#

Description
Price

1

BUSHING(10)

7556401

Unavailable

2

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

3

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

3

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

4

WASHER, DOMED(10)

5220646

$2.39

5

LOCK WASHER(10)

7552901

$1.49

6

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

7

WASHER(10)

7556804

$1.49

8

BUSHING, DRIVEN

3576504

$23.99

9

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

10

SPRING,CLUTCH,(RED)

7041198

$52.60

11

RAMP, STATIONARY

5130738

Unavailable

12

RETAINING RING(10)

7714401

$2.63

13

BOLT(10)

7511854

$1.49

14

BUTTON,RAMP

5430766

Unavailable
