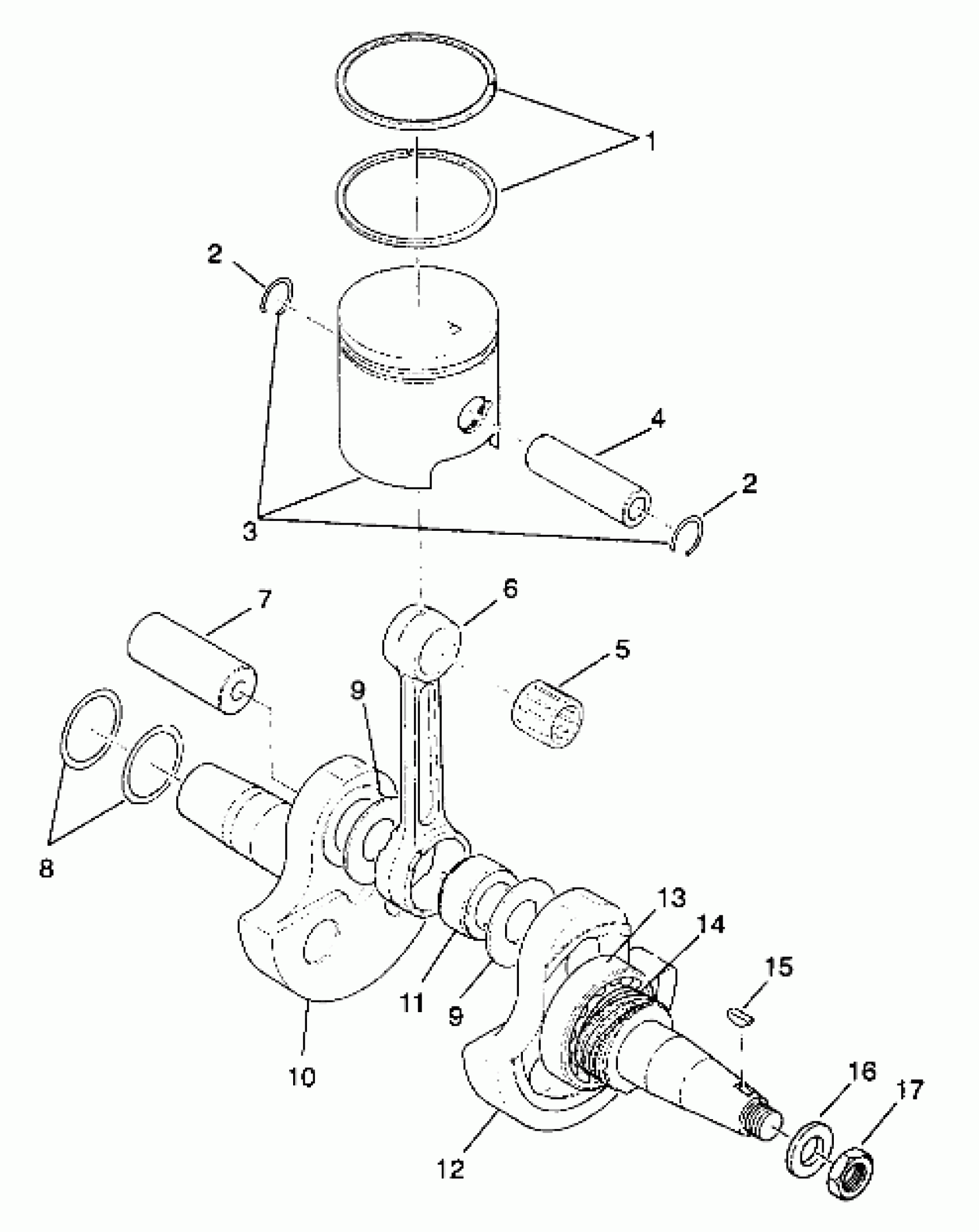

Polaris 250 4X4 - W938127 CRANKSHAFT and PISTON 4X4 250 W938127 (4924042404035A) Diagram

#

Description
Price

-

RING,.020 O/S

3083717

$28.56

-

RING,PISTON(O/S,1.0MM)

3083974

$37.99

1

RING, PISTON

3083546

Unavailable

1

RING,.010 O/S

3083678

Unavailable

2

CLIP,PISTON PIN,(10)

3083839

$4.75

2

CLIP,PISTON PIN,(10)

3083839

$4.75

3

SET,PISTON,.040"/1.00MM O/S* [1.00mm/.04" O/S]

3083972

Unavailable

3

PISTON *

3083942

Unavailable

3

PISTON,.020 O/S

3083944

Unavailable

3

PISTON,.010 O/S

3083943

Unavailable

4

Pin, Piston

3083838

$27.78

5

BEARING, SMALL END

3083626

Unavailable

6

ROD CONNECTING

3082790

Unavailable

7

CRANK PIN PTO

3082796

Unavailable

8

SPACER #1

3083629

Unavailable

8

SPACER #3

3083630

Unavailable

9

Spacer

3083804

$19.84

9

Spacer

3083804

$19.84

10

CRANKSHAFT,#2

3083802

Unavailable

11

BEARING,LGE.END

3083803

Unavailable

12

CRANKSHAFT ASM.

3084582

Unavailable

13

Bearing, Ball

3084580

Unavailable

14

GEAR,CRANKSHAFT

3083745

Unavailable

15

KEY WOODRUFF

3081543

$13.75

16

WASHER Substituted by 3086767

3083904

Unavailable

17

LOCKNUT

3083905

Unavailable
