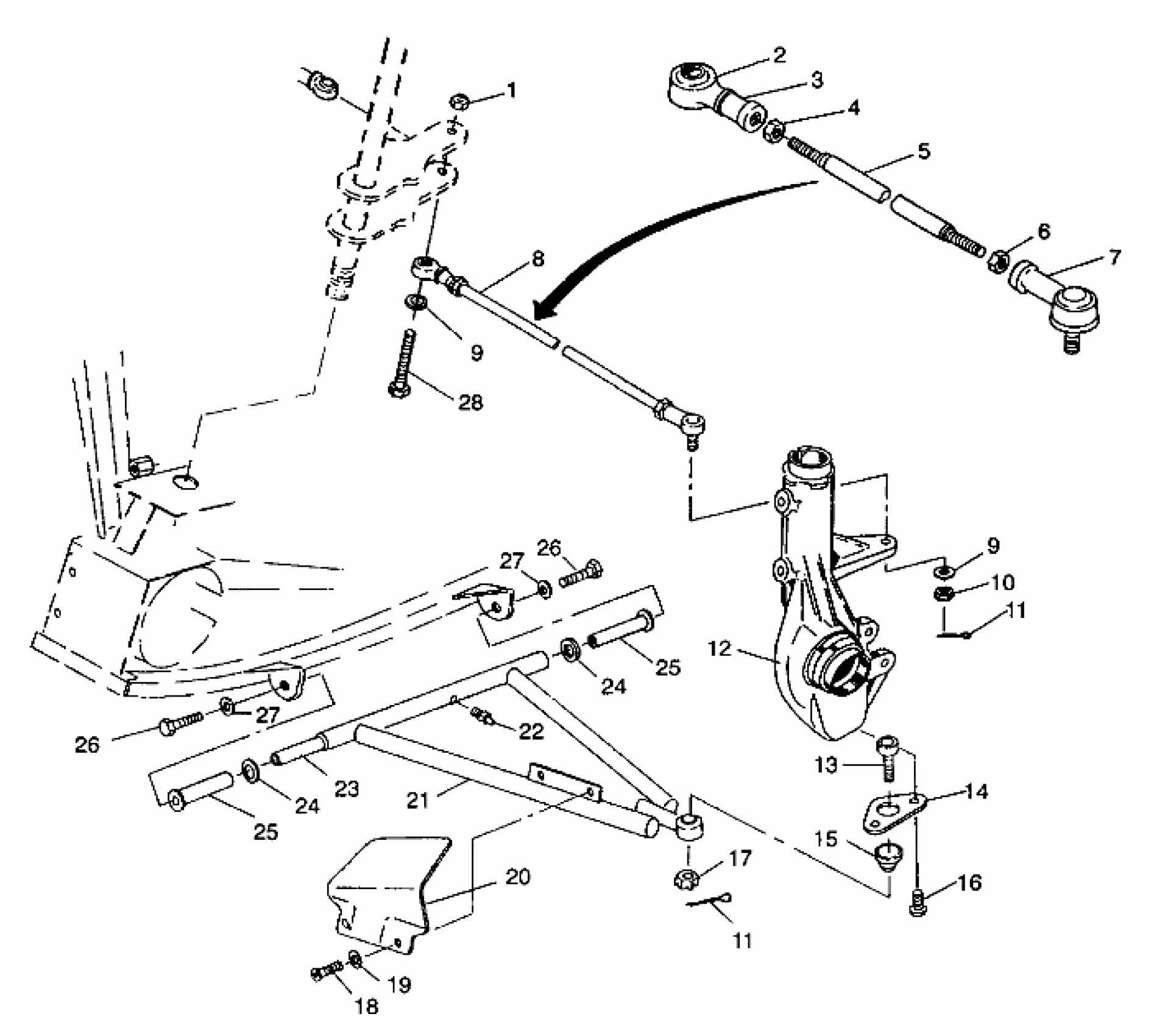

Polaris 250 4X4 - W938127 A-ARM/STRUT MOUNTING 4X4 250 W938127 (4924042404018A) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.17

2

BOOT, SEAL, ROD END

5410540

$7.14

3

ROD END, RH Substituted by 1822179

7060149

Unavailable

4

NUT HEX(10)

7542401

$2.38

5

TIE ROD

5020528

Unavailable

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END

7060147

$60.70

8

TIE ROD ASM. Substituted by 1822310

1822081

Unavailable

9

WASHER(10)

7555806

$0.79

9

WASHER(10)

7555806

$0.79

10

NUT, CASTLE(10)

7546904

$4.76

11

PIN COTTER(10)

7661203

$1.19

11

PIN COTTER(10)

7661203

$1.19

12

HUB STRUT ASM,LH

1843033

Unavailable

12

HUB STRUT ASM,RH

1843034

Unavailable

13

BALL JOINT Substituted by 7080673

7080364

$28.32

14

BRACKET-BALL JOINT

5211121

$32.37

15

Boot, Rubber

5410548

$4.84

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

SCREW(10)

7512017

$4.76

19

WASHER(10)

7555792

$4.76

20

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

20

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

21

A-FRAME, LH, BLK. Substituted by 2200481

1580056-067

Unavailable

21

A-FRAME, RH, BLK. Substituted by 2200482

1580057-067

$159.75

22

ZERK,FITTING,THREADED(10)

7080433

$1.19

23

Shaft, A-Arm

5020681

$33.24

24

BUSHING,A-ARM SPACER(10)

5020677

$10.32

24

BUSHING,A-ARM SPACER(10)

5020677

$10.32

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

25

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

26

BOLT(10) Substituted by 7512492

7515458

$1.19

26

BOLT(10) Substituted by 7512492

7515458

$1.19

27

WASHER(10)

7552603

$0.79

27

WASHER(10)

7552603

$0.79

28

BOLT

7515512

Unavailable
