SWING ARM/SHOCK MOUNTING - W937527 (4924022402b009)

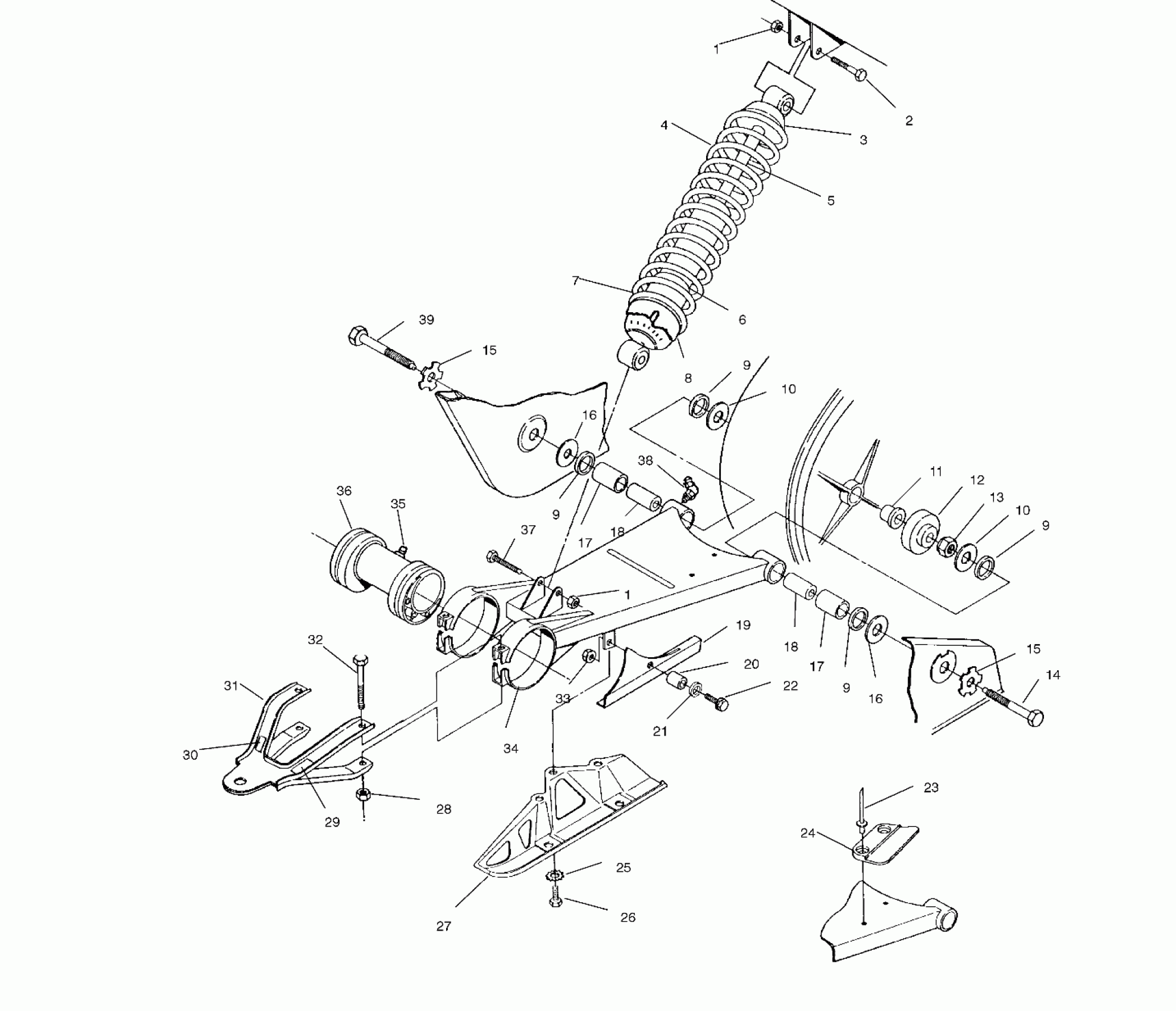

Polaris 250 2X4 - W937527 SWING ARM/SHOCK MOUNTING - W937527 (4924022402b009) Diagram
#
1
NUT-LOCK(10)
7542439
$1.49
1
NUT-LOCK(10)
7542439
$1.49
2
BOLT(10)
7515415
$1.49
3
RETAINER, SHOCK
5222118
Unavailable
4
SPRING,COMP,REAR
7041204-067
$64.99
5
SHOCK, REAR
7041218
$146.71
6
SLEEVE,SPRING PROTECTOR
5431032
$31.99
7
ADAPTER,SPRING,SEAT
5630351
Unavailable
8
CAM,ADJUSTING SPRING
5630334
$32.37
9
SEAL,OIL
3610016
$28.32
9
SEAL,OIL
3610016
$28.32
9
SEAL,OIL
3610016
$28.32
9
SEAL,OIL
3610016
$28.32
10
WASHER(10)
7555779
Unavailable
10
WASHER(10)
7555779
Unavailable
11
Support (See Pg. 28)
-------
Unavailable
12
ROLLER,CHAIN GUIDE
5431003
Unavailable
13
NUT,CROWN LOCK(10)
7542601
Unavailable
14
BOLT, SHOULDER
7512702
Unavailable
15
PLATE,BOLT LOCK
5220958
$35.99
15
PLATE,BOLT LOCK
5220958
$35.99
16
BUSHING, MACH.(10)
7555752
Unavailable
16
BUSHING, MACH.(10)
7555752
Unavailable
17
BEARING,SWINGARM
3576512
Unavailable
17
BEARING,SWINGARM
3576512
Unavailable
18
BUSHING,SWING ARM
5010255
Unavailable
18
BUSHING,SWING ARM
5010255
Unavailable
19
GUARD,CHAIN(MODIFIED) Substituted by 5430776
5430952
$34.74
20
Bushing
5332828
$9.59
21
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
22
SCREW-FLANGED(10)
7515304
$5.59
23
RIVET(50)
7621433
$1.49
24
GUIDE, CHAIN
5431017
$1.83
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
26
SCREW(10)
7512252
Unavailable
27
GUARD, SWING ARM
1040166-067
Unavailable
28
NUT,FLANGE(10)
7542522
$5.59
29
DECAL,CHAIN TENSION Substituted by 7074752
7074177
Unavailable
30
DECAL, HITCH Substituted by 7078261
7072533
Unavailable
31
HITCH WELD, BLK. Substituted by 2200472
1040294-067
Unavailable
32
BOLT(10)
7512576
$7.99
33
NUT LOCK(10)
7542321
$1.49
34
ARM, SWING
1580048-067
Unavailable
35
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
36
HOUSING, AXLE
5130663
Unavailable
37
BOLT(10)
7515438
$4.79
38
FITTING, LUBE.
7080438
$10.39
39
BOLT, SHOULDER
7512701
$23.99
