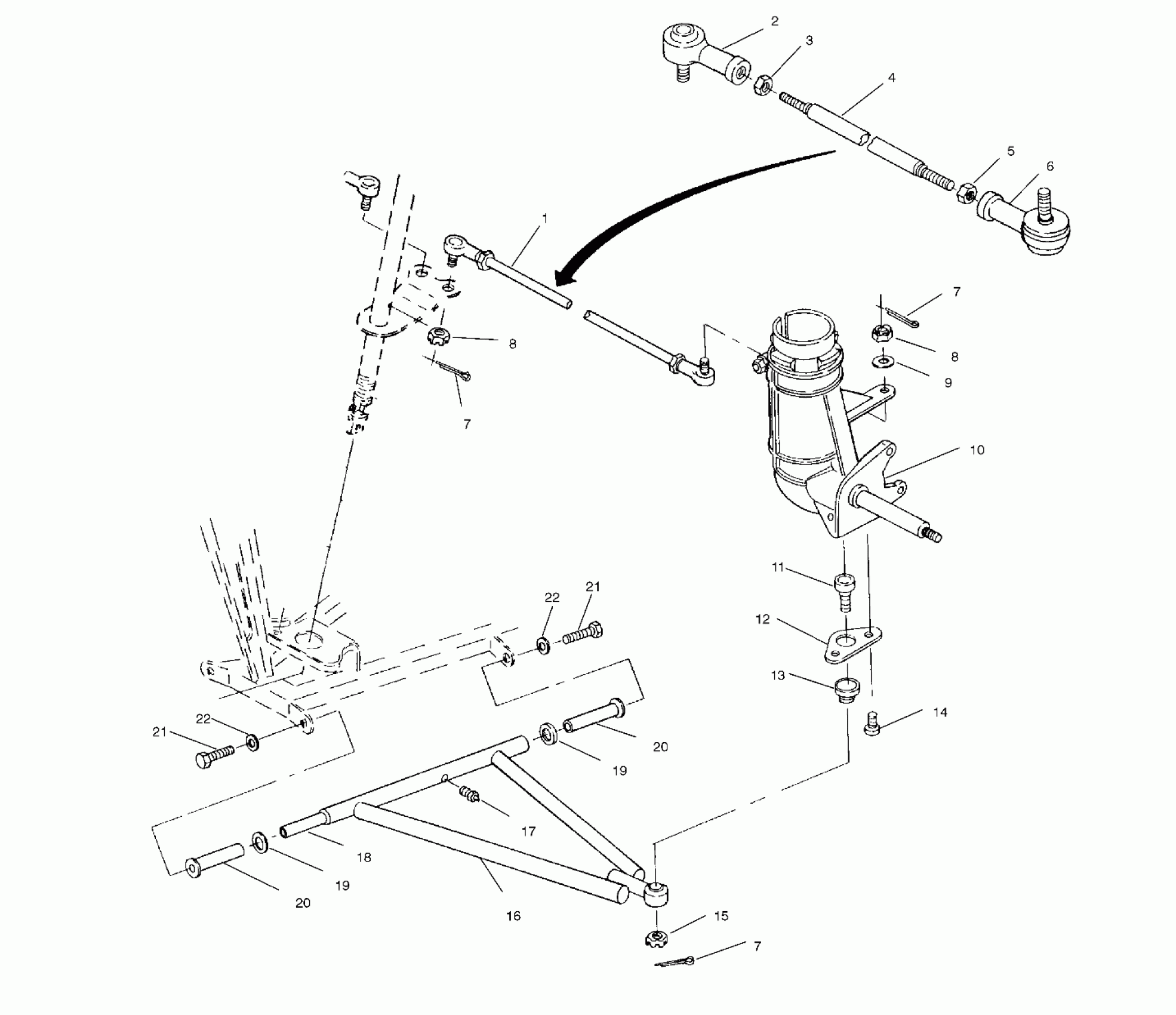

Polaris 250 2X4 - W937527 STEERING/A-ARM ASSEMBLY - W937527 (4924022402b006) Diagram

#

Description
Price

1

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

2

ROD END, RH Substituted by 7060172

7060138

$60.70

3

NUT, RH, 10 MM.(10)

7546901

$2.38

4

TIE ROD

5020478

$52.60

5

NUT, LH, 10 MM.(10)

7546902

Unavailable

6

ROD END

7060147

$60.70

7

PIN COTTER(10)

7661203

$1.19

7

PIN COTTER(10)

7661203

$1.19

7

PIN COTTER(10)

7661203

$1.19

8

NUT, CASTLE(10)

7546904

$4.76

8

NUT, CASTLE(10)

7546904

$4.76

9

WASHER(10)

7555806

$0.79

10

Support, Strut & Spindle, LH (See Pg. B1)

----

Unavailable

10

Support, Strut & Spindle, RH (See Pg. B1)

----

Unavailable

11

BALL JOINT Substituted by 7080673

7080364

$28.32

12

BRACKET-BALL JOINT

5211121

$32.37

13

Boot, Rubber

5410548

$4.84

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

15

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

16

A-FRAME, LH, BLK. Substituted by 2200479

1580058-067

Unavailable

16

A-FRAME, RH, BLK. Substituted by 2200480

1580059-067

Unavailable

17

ZERK,FITTING,THREADED(10)

7080433

$1.19

18

SHAFT, A-ARM,(2X4)

5020680

Unavailable

19

BUSHING,A-ARM SPACER(10)

5020677

$10.32

19

BUSHING,A-ARM SPACER(10)

5020677

$10.32

20

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

20

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

21

BOLT(10) Substituted by 7512492

7515458

$1.19

21

BOLT(10) Substituted by 7512492

7515458

$1.19

22

WASHER(10)

7552603

$0.79

22

WASHER(10)

7552603

$0.79
