Description

Price

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15, 16)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15, 16)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15, 16)

3084403

Unavailable

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

O-RING

3084408

Unavailable

6

Bolt, Through

3084407

Unavailable

7

BRACKET Substituted by 3086780

3084214

Unavailable

8

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

9

Washer Set

3083754

$2.39

10

ARMATURE ASM. * (Incl. 11,12)

3084404

$207.99

11

O RING

3083934

Unavailable

12

BALL BEARING

3083777

$31.99

13

O RING

3083741

$9.37

14

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

15

GASKET

3083835

Unavailable

16

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

17

CLIP

3084409

$7.19

18

SPRING, RETURN

3084410

$2.47

19

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 14,17-21)

3083647

Unavailable

20

SPRING, WEIGHT

3084411

$15.67

21

CLIP

3084412

$9.59

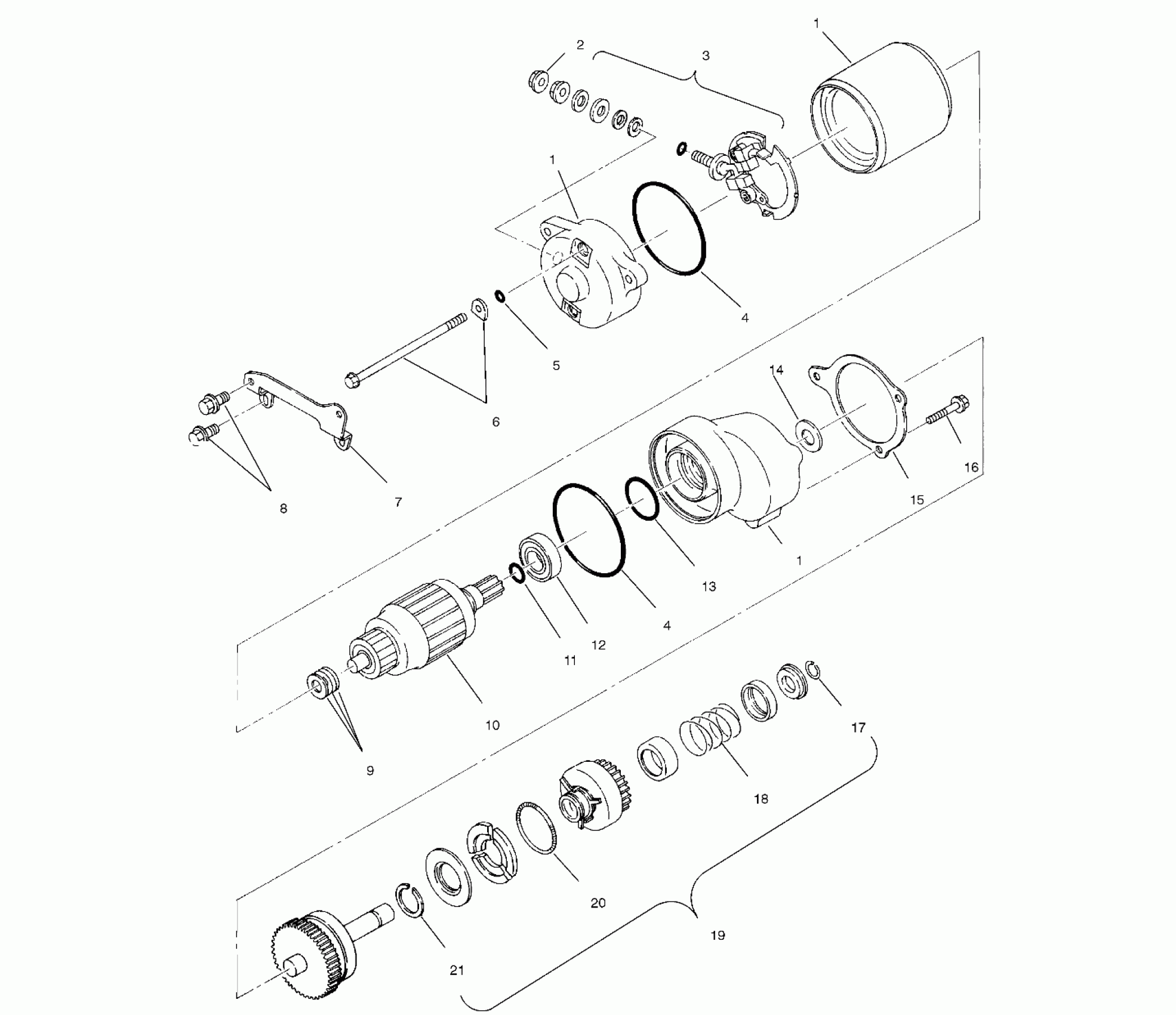

Polaris 250 2X4 - W937527 STARTING MOTOR - W937527 (4924022402c013) Diagram

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15, 16)

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15, 16)

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15, 16)

NUT, FLANGE(10)

BRUSH,COMPL.2-POLE *

RING, RUBBER

RING, RUBBER

O-RING

Bolt, Through

BRACKET Substituted by 3086780

BOLT, FLANGE(10) Substituted by 3087035

Washer Set

ARMATURE ASM. * (Incl. 11,12)

O RING

BALL BEARING

O RING

WASHER, GEARSHAFT Substituted by 7555908

GASKET

BOLT, FLANGE Substituted by 3086781

CLIP

SPRING, RETURN

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 14,17-21)

SPRING, WEIGHT

CLIP
