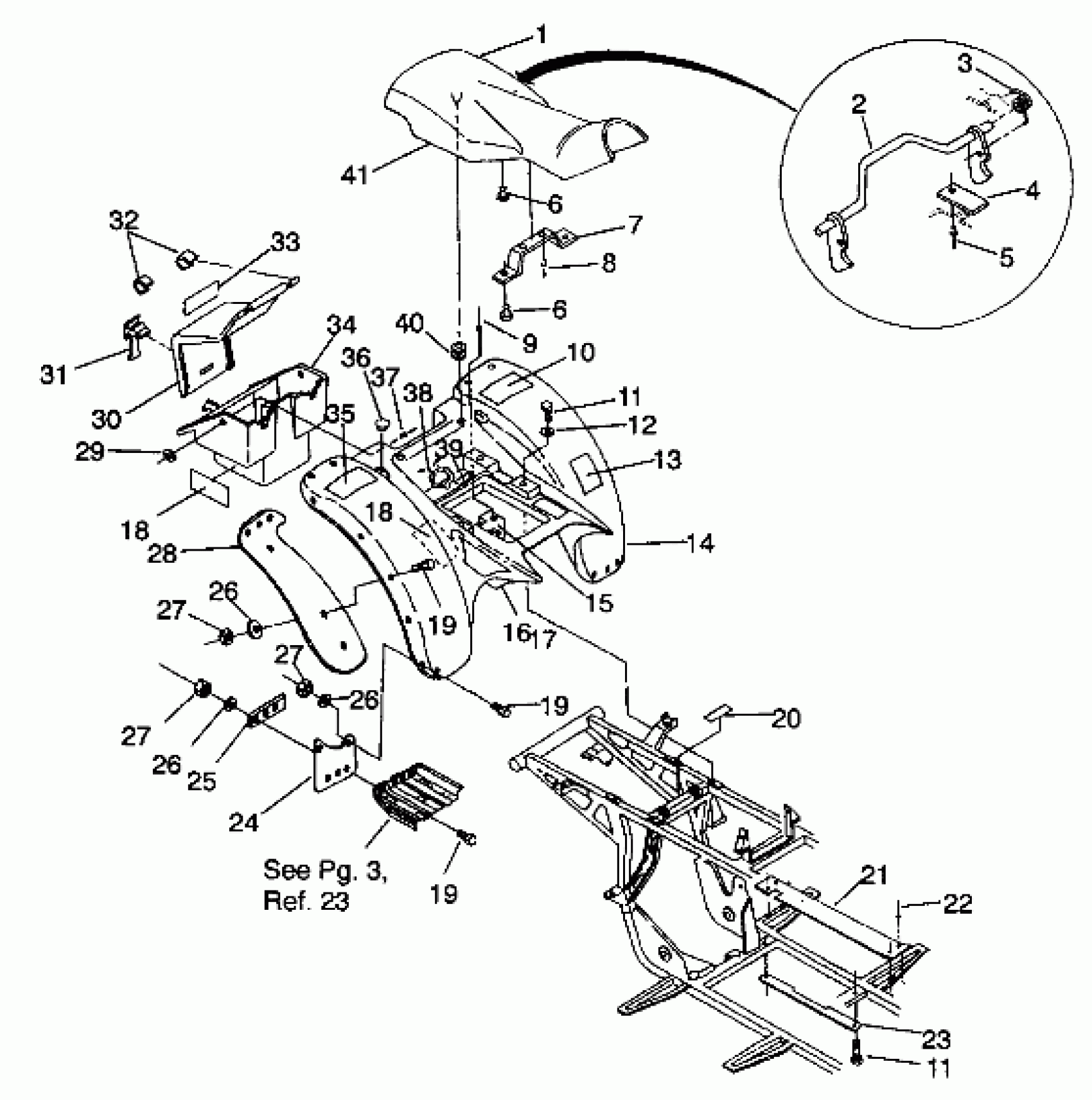

Polaris 250 2X4 - W937527 REAR CAB ASSEMBLY - W937527 (4924082408002A) Diagram

#

Description
Price

1

SEAT ASM,

2681512

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

6

Bumper, Rubber

5410414

$3.17

6

Bumper, Rubber

5410414

$3.17

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET

7621481

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.19

10

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

11

BOLT(10)

7512232

$1.19

11

BOLT(10)

7512232

$1.19

12

WASHER,WROUGHT(10)

7558302

$1.59

13

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072809

Unavailable

14

CAB,REAR

5430991-143

Unavailable

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

17

TAPE, FOIL

5810424

Unavailable

18

TAPE, FOIL

5810310

Unavailable

18

TAPE, FOIL

5810310

Unavailable

19

BOLT, BLACK(10)

7512282

Unavailable

19

BOLT, BLACK(10)

7512282

Unavailable

19

BOLT, BLACK(10)

7512282

Unavailable

20

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

21

GUARD,CLUTCH,OUTER

5222860-067

$7.06

22

RIVET, (MONOBOLT) Substituted by 7661637

7661620

$1.19

23

GUARD,CLUTCH,INNER

5211359-067

Unavailable

24

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

24

MUDFLAP,RH,LOW REAR

5850071

Unavailable

25

BRKT, LH MUD FLAP

5211131-067

Unavailable

26

WASHER, FLAT(10)

7555859

$1.19

26

WASHER, FLAT(10)

7555859

$1.19

26

WASHER, FLAT(10)

7555859

$1.19

27

NUT-LOCK(10)

7542122

$1.19

27

NUT-LOCK(10)

7542122

$1.19

27

NUT-LOCK(10)

7542122

$1.19

28

FLAP,MUD,LH REAR

5850060

Unavailable

28

FLAP,MUD,RH REAR

5850061

Unavailable

29

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

30

LID,TOOLBOX,(WHITE)

5430769-133

Unavailable

31

STRAP,TOOL COMPARTMENT

5410425

Unavailable

32

CLIP, LID HINGE(10)

7670050

Unavailable

33

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

34

BOX,TOOL COMP.

5430882

Unavailable

35

DECAL,LOAD DIST.(4 WHL.)

7074110

Unavailable

36

PLUG, RACK HOLE

5430887

Unavailable

37

RIVET(50)

7621462

$1.19

38

RETAINER,TOOL POUCH

7080385

Unavailable

39

DECAL,CARB.INFO.

7073761

Unavailable

40

GROMMET

5410413

Unavailable

41

COVERING, SEAT, BONNIE BLUE

2681513

Unavailable
