- 1993
- 250 2X4 - W937527
REAR BRAKE/FOOT PEDAL ASSEMBLY - W937527 (4924022402b014)

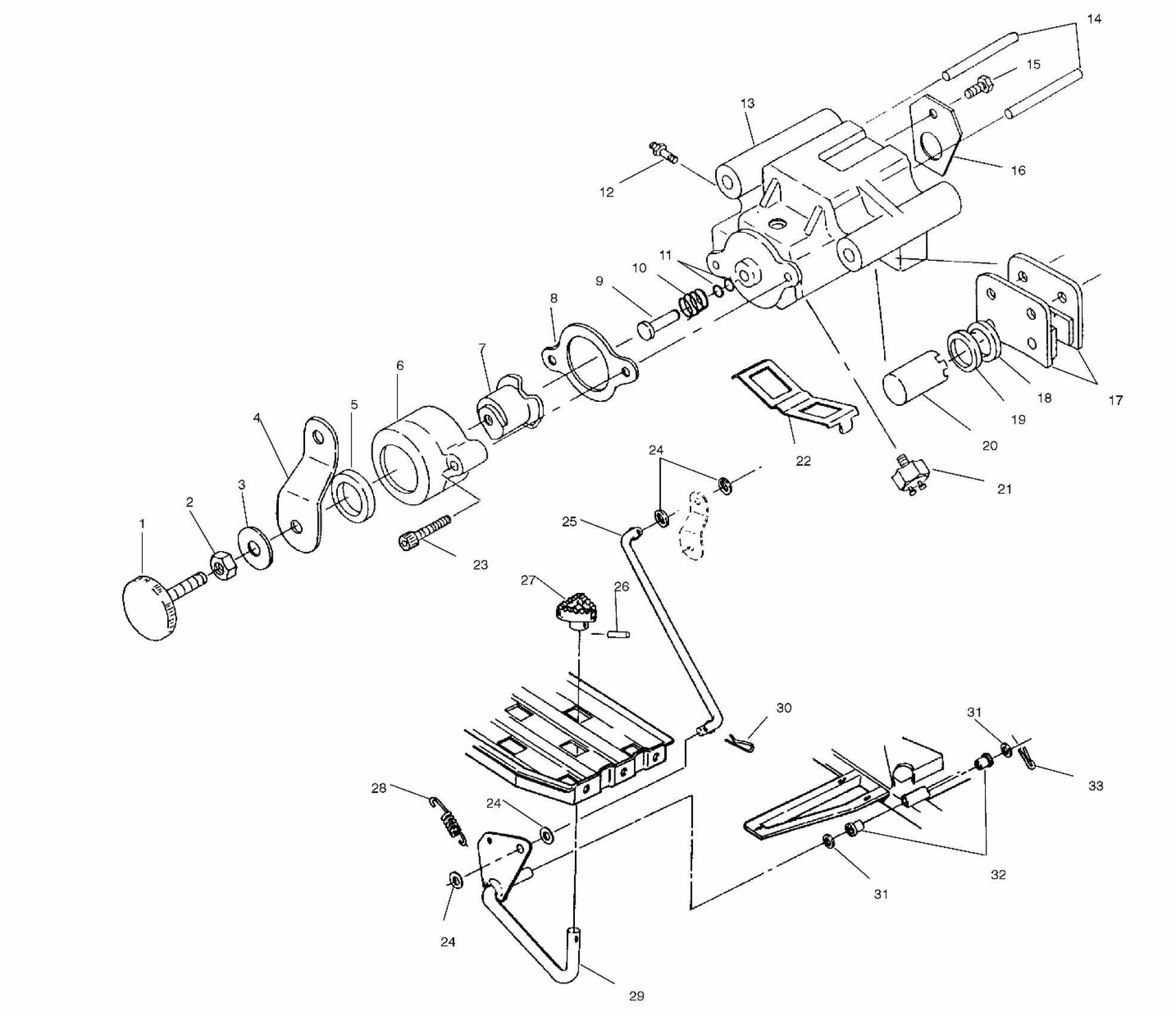

Polaris 250 2X4 - W937527 REAR BRAKE/FOOT PEDAL ASSEMBLY - W937527 (4924022402b014) Diagram
#
Description
Price
1
KNOB,BRAKE ADJUSTOR
1930691
Unavailable
2
NUT(10)
7542129
$4.79
3
WASHER, SPRING(10)
7555828
Unavailable
4
ARM,BRAKE,CALIPER
5222664
Unavailable
5
SEAL, BRAKE
3610026
$7.99
6
RAMP,STATION.BRAKE Substituted by 2200391
5630395
Unavailable
7
RAMP,MOVE.BRAKE Substituted by 2200391
5630394
Unavailable
8
GASKET, BRAKE
5830009
$9.99
9
PIN, BRAKE ADJUSTER
5020523
Unavailable
10
SPRING,BRAKE,COMP.
7041219
$24.99
11
O RING-.364X.504X.07
5410542
Unavailable
12
SCREW,BLEEDER
7080352
$3.19
13
CALIPER,REAR BRAKE
5130714
Unavailable
13
CALIPER, R.BRAKE
1910073
Unavailable
14
PIN, DOWEL(10)
7661820
$13.99
15
SCREW, SEMS(10)
7512020
$2.39
16
PLATE, PIN
5211143
Unavailable
17
KIT,BRAKEPAD,REAR (Incl. Pins)
2200464
$31.99
18
RING,SQUARE,(.120) (.120 sq.)
5410518
$7.19
19
RING, SQUARE (.066 sq.)
5410519
Unavailable
20
PISTON, BRAKE
5020521
Unavailable
21
SWITCH, STOPLIGHT
4110089
Unavailable
22
SPRING,ANTI-RATTLE
5222232
Unavailable
23
BOLT, SOC. HD.(10)
7512292
Unavailable
24
WASHER(10)
7555827
$3.99
24
WASHER(10)
7555827
$3.99
24
WASHER(10)
7555827
$3.99
25
ROD,BRAKE LINKAGE Substituted by 5224446
5224394
Unavailable
26
PIN, SPIRAL(10)
7661416
Unavailable
27
PEDAL,FOOT
5130715-067
Unavailable
28
SPRING-EXHAUST(10)
7042029
$4.84
29
PEDAL, BRAKE
1910063-067
$13.08
30
PIN, COTTER(10)
7661103
$4.99
31
WASHER THRUST(10)
7558702
$1.59
31
WASHER THRUST(10)
7558702
$1.59
32
BUSHING-PEDAL PIVOT
5431107
$8.79
33
COTTER PIN(10)
7661401
$1.49
