GEARCASE ASSEMBLY - W937527 (4924022402c003)

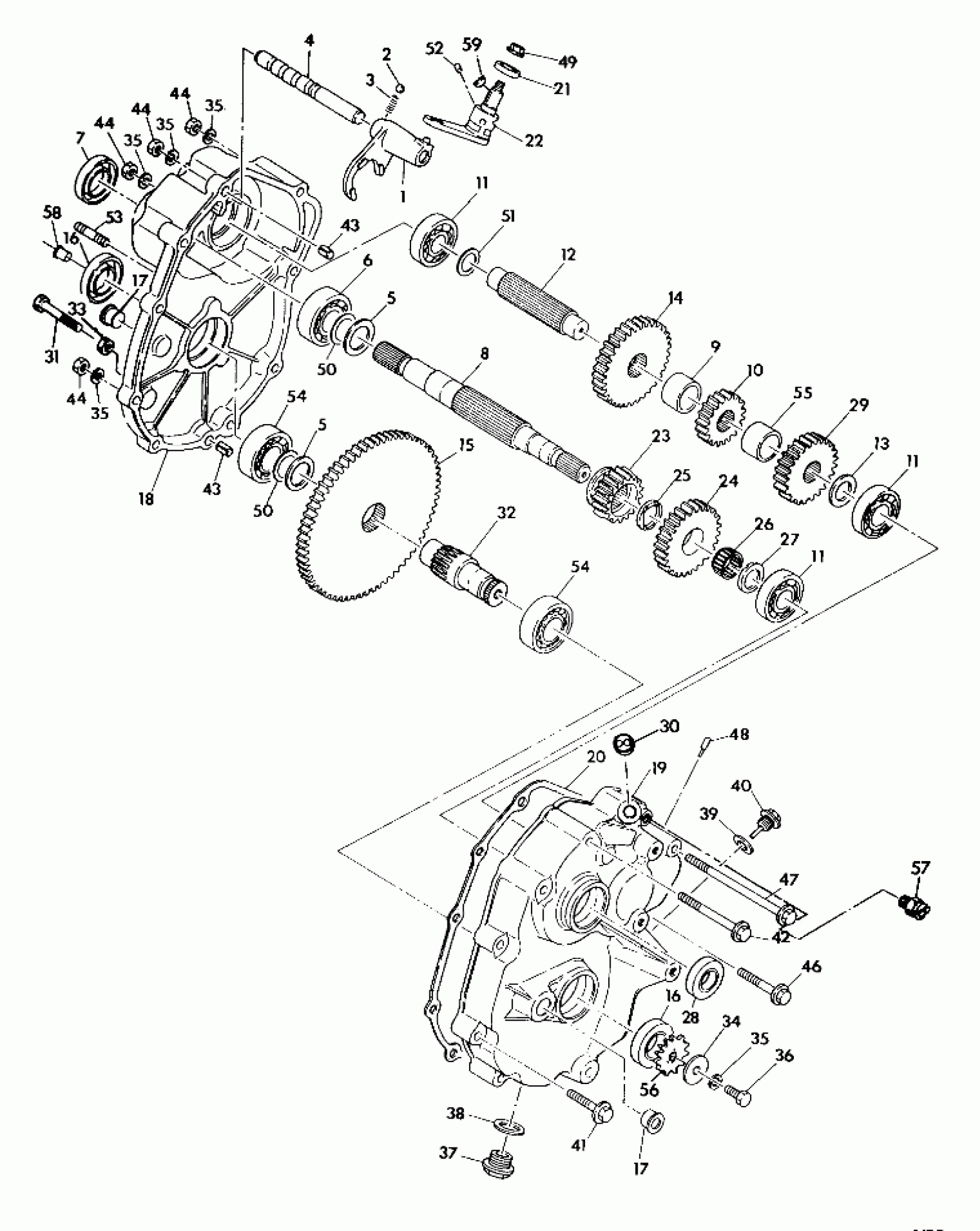

Polaris 250 2X4 - W937527 GEARCASE ASSEMBLY - W937527 (4924022402c003) Diagram
#
-
GEARCASE ASM(2X4,4X6) [Cannot Purchase as Assembly] (Incl. 1 -59)
1341065
Unavailable
1
SHIFTER
3231501
$78.39
2
BALL, STEEL
3231502
Unavailable
3
SPRING
3231550
$1.49
4
SHAFT, SHIFT
3231579
$13.59
5
WASHER
3231505
$3.40
5
WASHER
3231505
$3.40
6
BEARING
3231506
Unavailable
7
SEAL, OIL
3231507
Unavailable
8
SHAFT, INPUT
3231580
Unavailable
9
COLLAR
3231581
$3.60
10
GEAR
3231510
$29.59
11
BEARING
3231511
Unavailable
11
BEARING
3231511
Unavailable
11
BEARING
3231511
Unavailable
12
SHAFT
3231512
$34.70
13
Washer
3231513
$4.39
14
GEAR
3231514
Unavailable
15
GEAR (66)
3231582
Unavailable
16
SEAL, OIL
3231516
Unavailable
16
SEAL, OIL
3231516
Unavailable
17
SUPPORT
3231517
Unavailable
17
SUPPORT
3231517
Unavailable
18
CASE, LH
3231594
Unavailable
19
CASE, RH
3231583
Unavailable
20
PACKING
3231553
Unavailable
21
SEAL, OIL
3231521
Unavailable
22
SHAFT, SELECT
3231584
Unavailable
23
GEAR (18)
3231585
Unavailable
24
GEAR
3231524
$57.14
25
WASHER
3231525
Unavailable
26
BEARING,NEEDLE
3231526
Unavailable
27
WASHER
3231527
Unavailable
28
SEAL, OIL
3231528
Unavailable
29
GEAR
3231529
$55.54
30
SW,REV./NEUT.INDIC.
4110062
$32.37
31
BOLT(10)
7515485
$3.03
32
SHAFT, OUTPUT
3231586
Unavailable
33
NUT(10)
7542404
$1.59
34
WASHER(10)
3231599
Unavailable
35
WASHER, SPRING(10)
3231545
Unavailable
35
WASHER, SPRING(10)
3231545
Unavailable
35
WASHER, SPRING(10)
3231545
Unavailable
35
WASHER, SPRING(10)
3231545
Unavailable
35
WASHER, SPRING(10)
3231545
Unavailable
36
BOLT
3231536
Unavailable
37
PLUG,DRAIN,20MM,MAGNET
3231569
Unavailable
38
GASKET
3231592
Unavailable
39
GASKET
3231539
Unavailable
40
PLUG, OIL
3231561
Unavailable
41
BOLT
3231602
Unavailable
42
BOLT
3231603
Unavailable
43
PIPE, KNOCK
3231543
$1.41
43
PIPE, KNOCK
3231543
$1.41
44
NUT(10)
3231604
Unavailable
44
NUT(10)
3231604
Unavailable
44
NUT(10)
3231604
Unavailable
44
NUT(10)
3231604
Unavailable
46
BOLT
3231605
Unavailable
47
BOLT
3231606
Unavailable
48
PIPE,BREATHER
3231548
Unavailable
49
NUT, LOCK
3231555
Unavailable
50
SHIM 25, 0.3
3231562
Unavailable
50
SHIM 25, 0.1
3231563
Unavailable
50
SHIM 25, 0.3
3231562
Unavailable
50
SHIM 25, 0.1
3231563
Unavailable
51
SHIM 20, 0.3
3231564
Unavailable
51
SHIM 20, 0.1
3231565
Unavailable
52
PIN
3231607
Unavailable
53
STUD
3231608
Unavailable
54
BEARING
3231609
Unavailable
54
BEARING
3231609
Unavailable
55
COLLAR
3231587
Unavailable
56
SPKT, 11T (Optional)
3221043
$39.99
56
SPKT, 12T (Standard)
3221041
$43.99
57
SW,REV./NEUT.INDIC.
4110062
$32.37
58
BUSHING,SPEEDO.DRIVE
3280133
Unavailable
59
KEY, HI-PRO
7721113
Unavailable
