Description

Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

DECAL, WARNING, AGE

7074827

Unavailable

3

COVER,FUELTANK

5431197-157

Unavailable

4

COVER, OIL TANK/HEADLAMP

5430973-157

$64.29

5

RIVET(50)

7621457

$1.49

6

CAB,FR

2631549-143

Unavailable

7

DECAL,WARNING(CPSC)

7072693

Unavailable

8

FASTENER, PUSH ON CLIP

7670052

$1.99

9

DECAL(CPSC),WARNING DISC

7073147

Unavailable

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

11

WASHER,WROUGHT(10)

7558302

$1.59

12

SCREW

7512232

$1.49

13

NUT-LOCK(10)

7542122

$1.49

14

WASHER, FLAT(10)

7555859

$1.49

15

BRKT, LH MUD FLAP

5211131-067

Unavailable

15

BRKT,RH MUD FLAP

5211020-067

Unavailable

16

MUDFLAP,LH FRONT

5850082-070

$11.59

16

MUDFLAP,RH,FRONT

5850083-070

$7.14

17

BUMPER, RUBBER

5411426

Unavailable

18

COVER, SIDE PANEL, LH

5430970-157

Unavailable

18

COVER, SIDE PANEL, RH

5430971-157

Unavailable

19

DECAL,'POLARIS'SIDEPANEL

7073794

Unavailable

20

DECAL,'2X4'

7073793

Unavailable

21

DECAL,LH TANK SIDE

7073791

Unavailable

21

DECAL,RH,TANKSIDE(93-350 4X4)

7073792

Unavailable

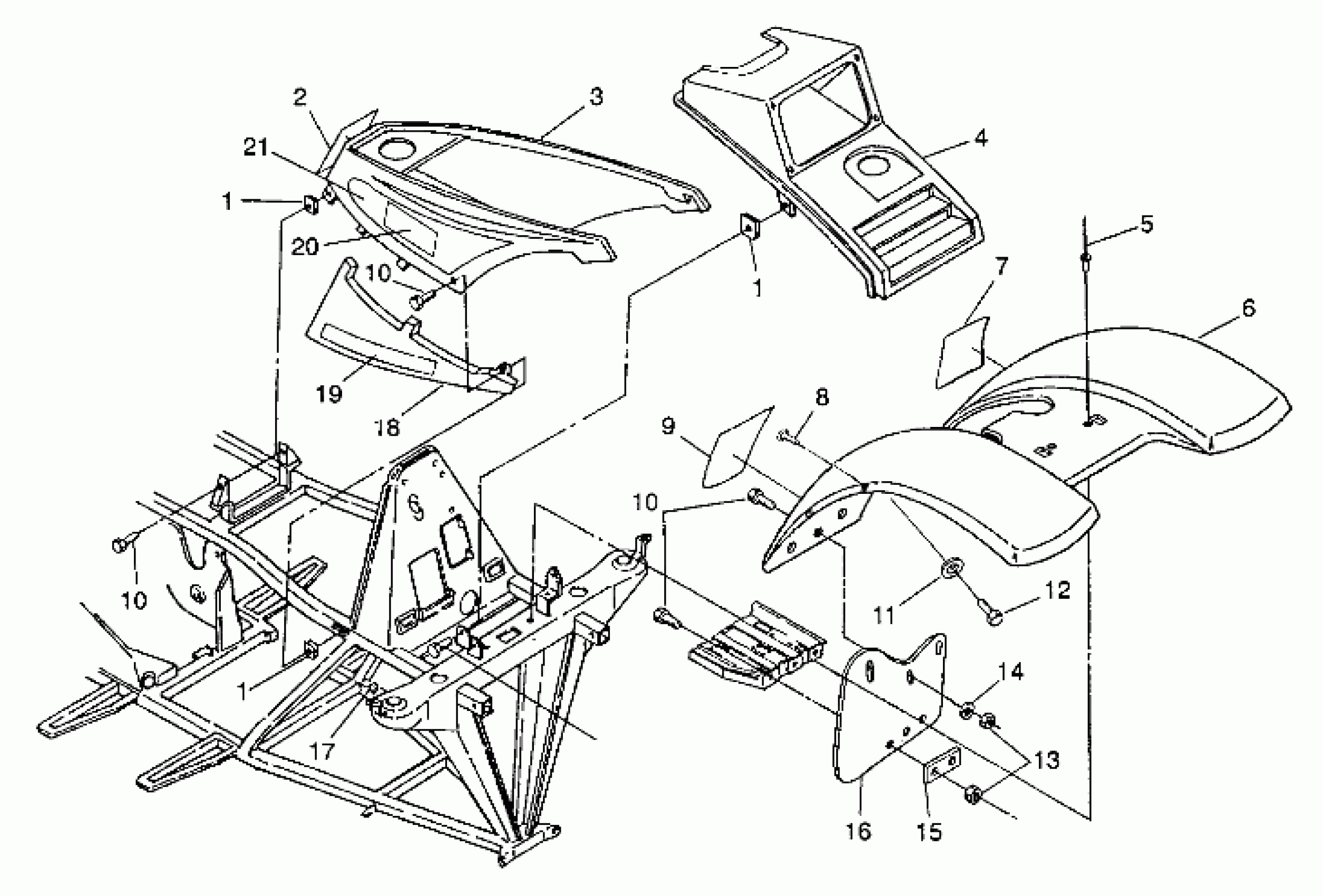

Polaris 250 2X4 - W937527 FRONT CAB ASSEMBLY - W937527 (4924022402a005) Diagram

NUT, SPEED(10)

NUT, SPEED(10)

NUT, SPEED(10)

DECAL, WARNING, AGE

COVER,FUELTANK

COVER, OIL TANK/HEADLAMP

RIVET(50)

CAB,FR

DECAL,WARNING(CPSC)

FASTENER, PUSH ON CLIP

DECAL(CPSC),WARNING DISC

BOLT, BLACK(10)

BOLT, BLACK(10)

BOLT, BLACK(10)

WASHER,WROUGHT(10)

SCREW

NUT-LOCK(10)

WASHER, FLAT(10)

BRKT, LH MUD FLAP

BRKT,RH MUD FLAP

MUDFLAP,LH FRONT

MUDFLAP,RH,FRONT

BUMPER, RUBBER

COVER, SIDE PANEL, LH

COVER, SIDE PANEL, RH

DECAL,'POLARIS'SIDEPANEL

DECAL,'2X4'

DECAL,LH TANK SIDE

DECAL,RH,TANKSIDE(93-350 4X4)
