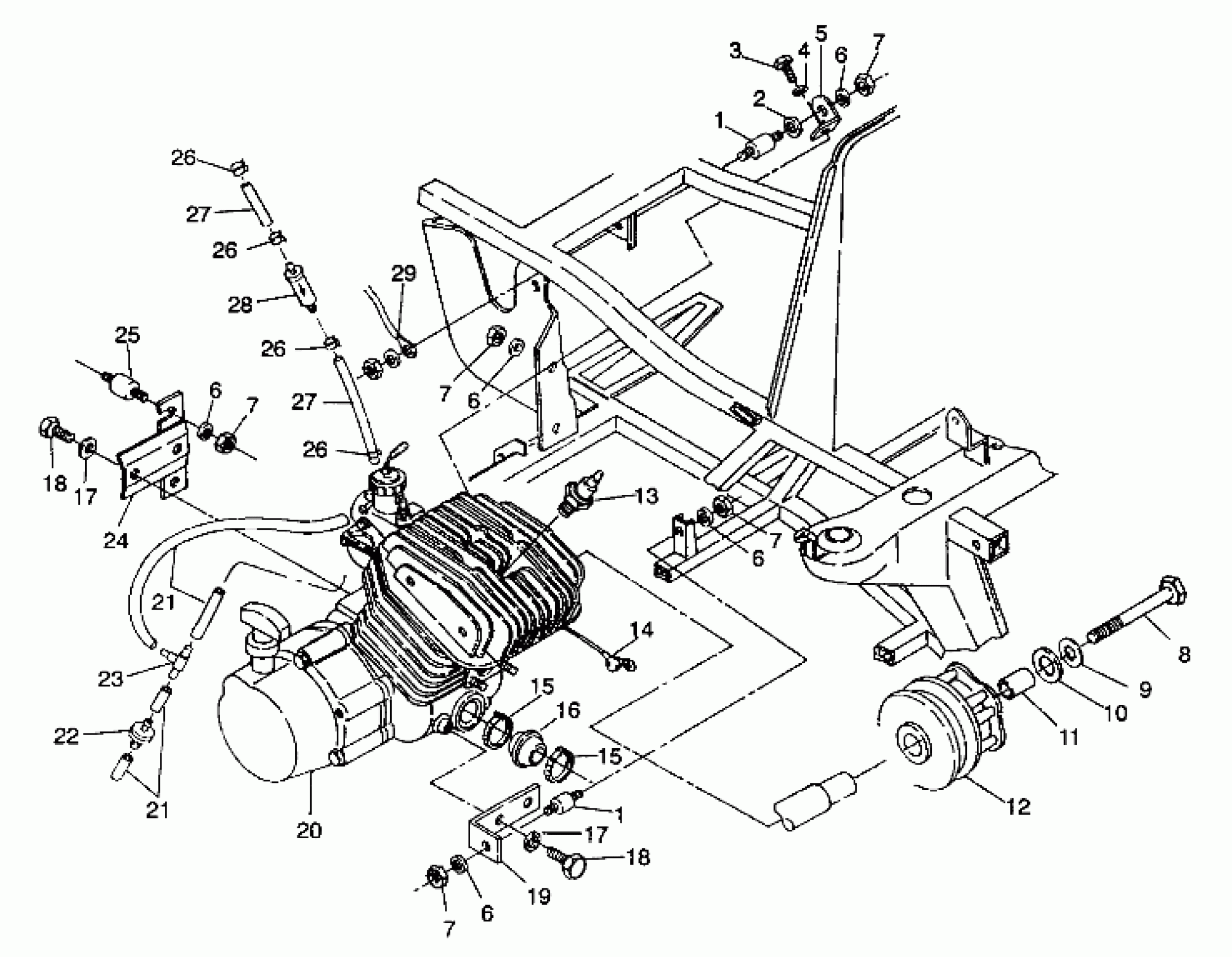

Polaris 250 2X4 - W937527 ENGINE MOUNTING - W937527 (4924042404004A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

7

NUT

7542403

$3.99

7

NUT

7542403

$3.99

7

NUT

7542403

$3.99

7

NUT

7542403

$3.99

7

NUT

7542403

$3.99

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

Asm., Drive Clutch (See Drive Clutch Assembly pg.23)

-------

Unavailable

13

SPARKPLUG (10)

3070156

$3.99

14

INSULATOR-CABLE

5410346

$6.39

15

CLAMP, NARROW BAND(10)

7080511

$4.79

16

BOOT,CLUTCH INTAKE

5410421

$11.19

17

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

17

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

18

SCREW(10)

7512490

$3.99

18

SCREW(10)

7512490

$3.99

19

PLATE,FR.MTR.MT.

5220881-067

Unavailable

20

ENG.EC25PF-08 Substituted by 3084717

1211534

Unavailable

21

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

21

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

22

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

23

Fitting, Tee

7052005

Unavailable

24

MOUNT, REAR Substituted by 5241056-067

5220757-067

Unavailable

25

MOUNT, MOTOR

3110028

Unavailable

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

27

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable

27

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable

28

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

29

CABLE,GROUND/ENG.

4010067

Unavailable
