ELECTRICAL/TAILLIGHT ASSEMBLY - W937527 (4924072407026A)

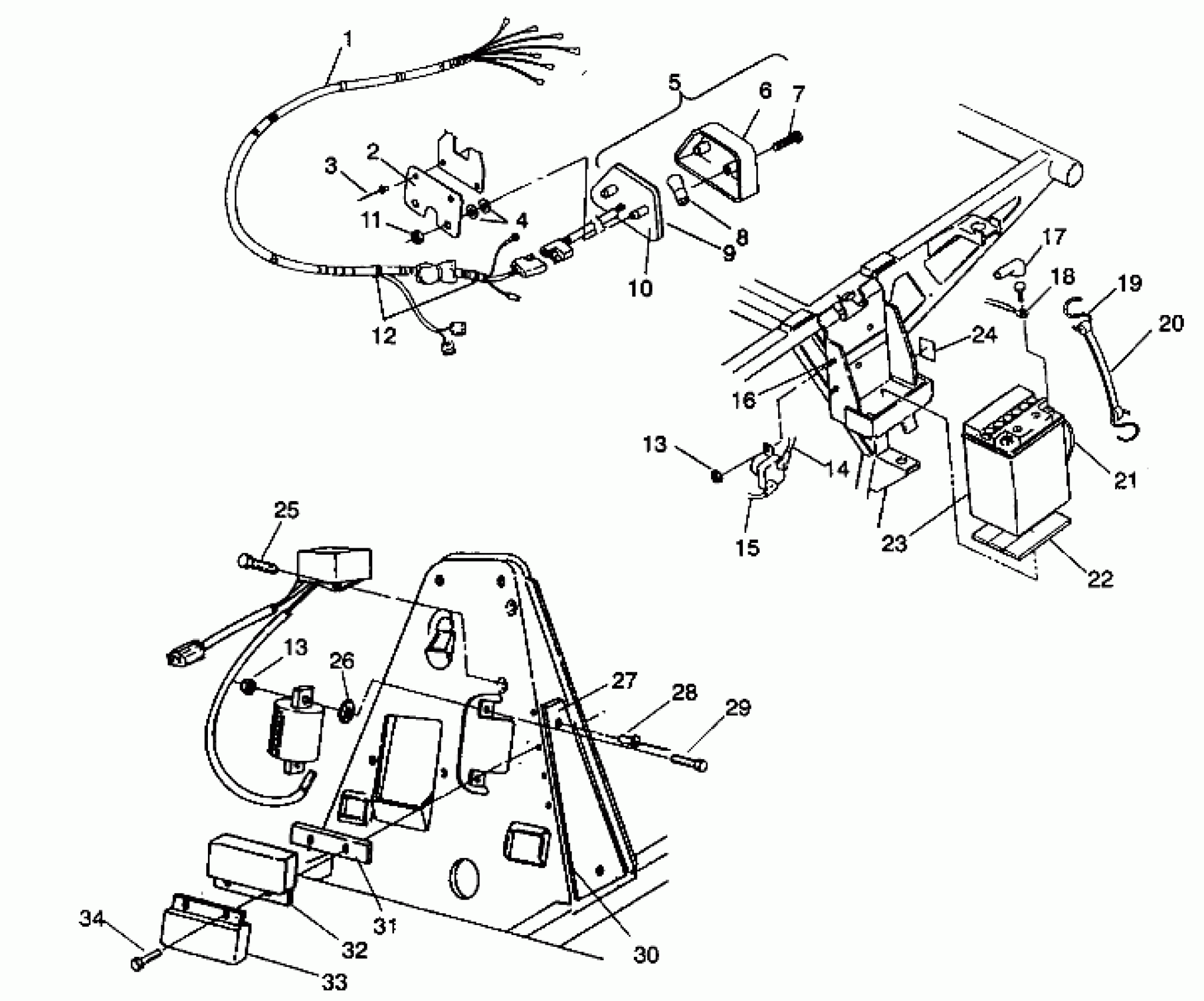

Polaris 250 2X4 - W937527 ELECTRICAL/TAILLIGHT ASSEMBLY - W937527 (4924072407026A) Diagram
#
Description
Price
1
HARNESS, MAIN WIRE,4WHL
2460405
Unavailable
2
ISOLATOR,TAILLIGHT
5211391-067
$13.39
3
RIVET(50)
7621470
$3.17
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
TAIL LIGHT ASM.
2432034
$55.99
6
LENS,TAILLIGHT
4032046
$32.37
7
Screw, Taillight
4032029
$4.79
8
BULB,TAILLIGHT
4030043
$6.46
9
GASKET,TAILLIGHT
4032045
$4.03
10
BACKING,TAILLIGHT
4032064
$83.99
11
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
12
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
13
NUT(10)
7541925
$1.49
13
NUT(10)
7541925
$1.49
14
CABLE,SOLENOID-STRTR.
4010075
Unavailable
15
CABLE,SOLENOID/STARTER
4010064
Unavailable
16
SCREW(10)
7512027
$1.49
17
INSULATOR-CABLE
5410346
$6.39
18
CABLE,BATTERY-SOLENOID
4010076
Unavailable
19
HOOK-BATT.H/D(10)
7010032
$1.59
20
STRAP,BATTERY HOLDDOWN
5410424
Unavailable
21
KIT-TANK VENT
2200190
Unavailable
22
PAD-BATTERY
5810290
$7.27
23
Battery
4140006
$99.99
24
DECAL, BATTERY [No Longer Available]
7072606
Unavailable
25
BOLT(10)
7512232
$1.49
26
WASHER(10)
7571602
$4.79
27
BOARD,TERMINAL
4040022
Unavailable
28
RIVET, POP(50)
7621322
$0.56
29
SCREW(10)
7512007
$3.99
30
SHIELD,TERM.BOARD
5431152
Unavailable
31
HEAT SINK
5210650
Unavailable
32
RECTIFIER, VOLTAGE
4060087
Unavailable
33
LIMITER,REV.SPEED
4060085
Unavailable
34
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
