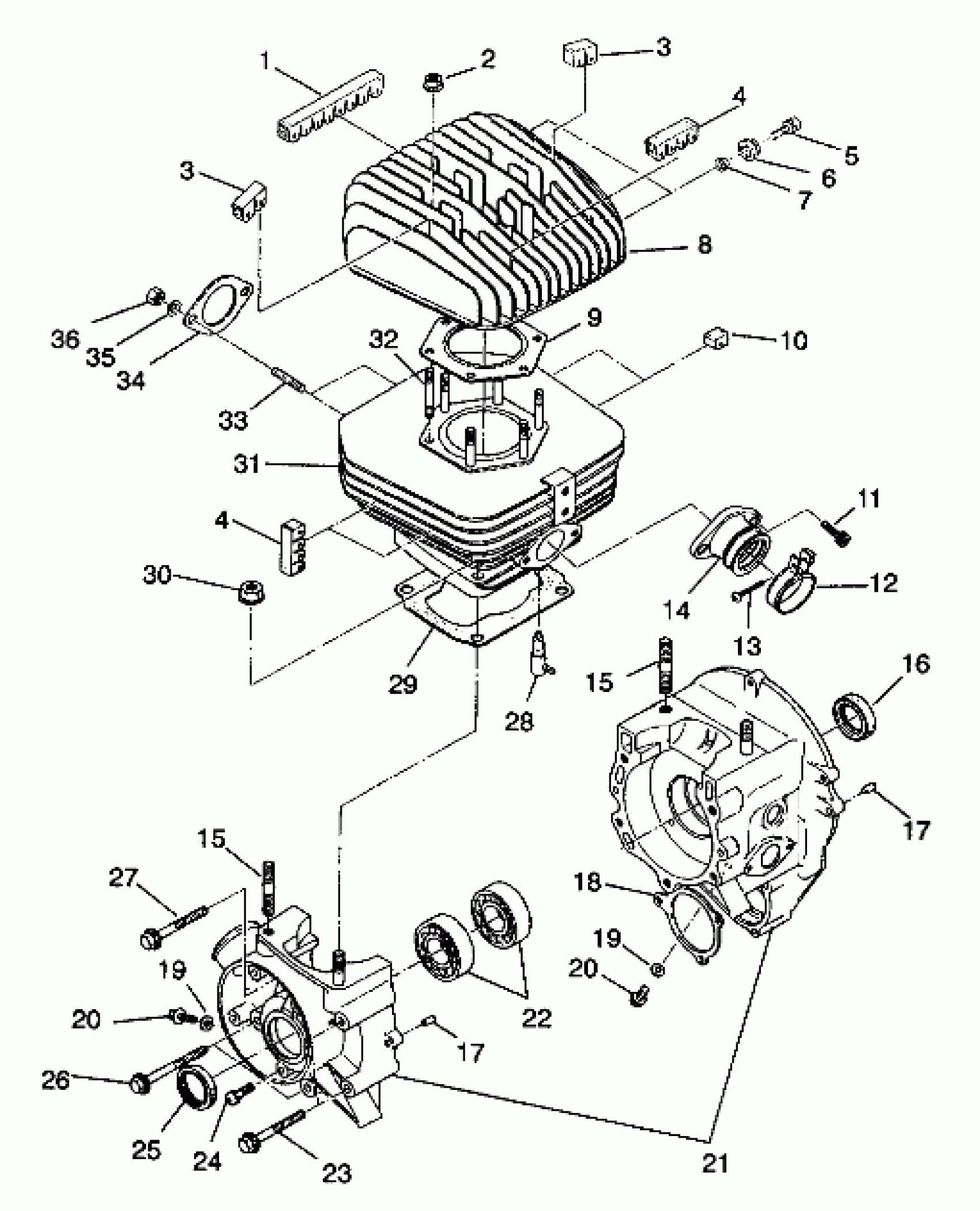

Polaris 250 2X4 - W937527 CRANKCASE and CYLINDER - W937527 (4924042404034A) Diagram

#

Description
Price

1

FIN DAMPER #3

3083931

Unavailable

2

NUT-FLANGE(10)

3082910

Unavailable

3

FIN DAMPER #4

3083932

$18.10

3

FIN DAMPER #4

3083932

$18.10

4

FIN DAMPER #1

3083929

Unavailable

4

FIN DAMPER #1

3083929

Unavailable

5

BOLT&WASHER

3083730

$4.76

6

MOUNTING,RUBBER

3083731

$4.92

7

COLLAR

3083732

Unavailable

8

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

9

GASKET, HEAD (Head)

3083768

Unavailable

10

FIN DAMPER #2

3083930

Unavailable

11

Bolt, Allen

3081330

$3.97

12

BAND ASSY

3082011

Unavailable

13

SCREW,(10)

3081497

$2.38

14

ADAPTER, CARB. Substituted by 3085013

3083412

$109.27

15

STUD Substituted by 3085713

3080746

$3.17

15

STUD Substituted by 3085713

3080746

$3.17

16

SEAL,OIL Substituted by 3082162

3080006

$40.46

17

PIN, DOWEL Substituted by 3086838

3080103

$7.14

17

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

GASKET

3083835

Unavailable

19

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

19

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

20

PLUG, DRAIN

3083767

Unavailable

20

PLUG, DRAIN

3083767

Unavailable

21

CRANKCASE ASM.

3084579

$504.99

22

Bearing, Ball

3084580

Unavailable

23

BOLT W/WASHER

3080739

$6.35

24

SCREW&WASHER ASM.

3081635

Unavailable

25

SEAL, OIL, PTO

3084581

$28.32

26

BOLT&WASHER ASSY.

3083615

Unavailable

27

BOLT AND WASHER ASSY.

3082096

$1.43

28

VALVE, CHECK Substituted by 3086785

3083337

$56.65

29

GASKET,CYLINDER

3083733

$40.46

30

NUT-FLANGE(10)

3082911

$1.99

31

CYLINDER Substituted by 3085541

3083769

Unavailable

32

Stud

3080283

$13.75

33

STUD (10)

3080016

$5.71

34

GASKET, EXHAUST

3083770

Unavailable

35

WASHER LOCK ,(10)

3080530

$3.17

36

NUT(10)

3080285

Unavailable
