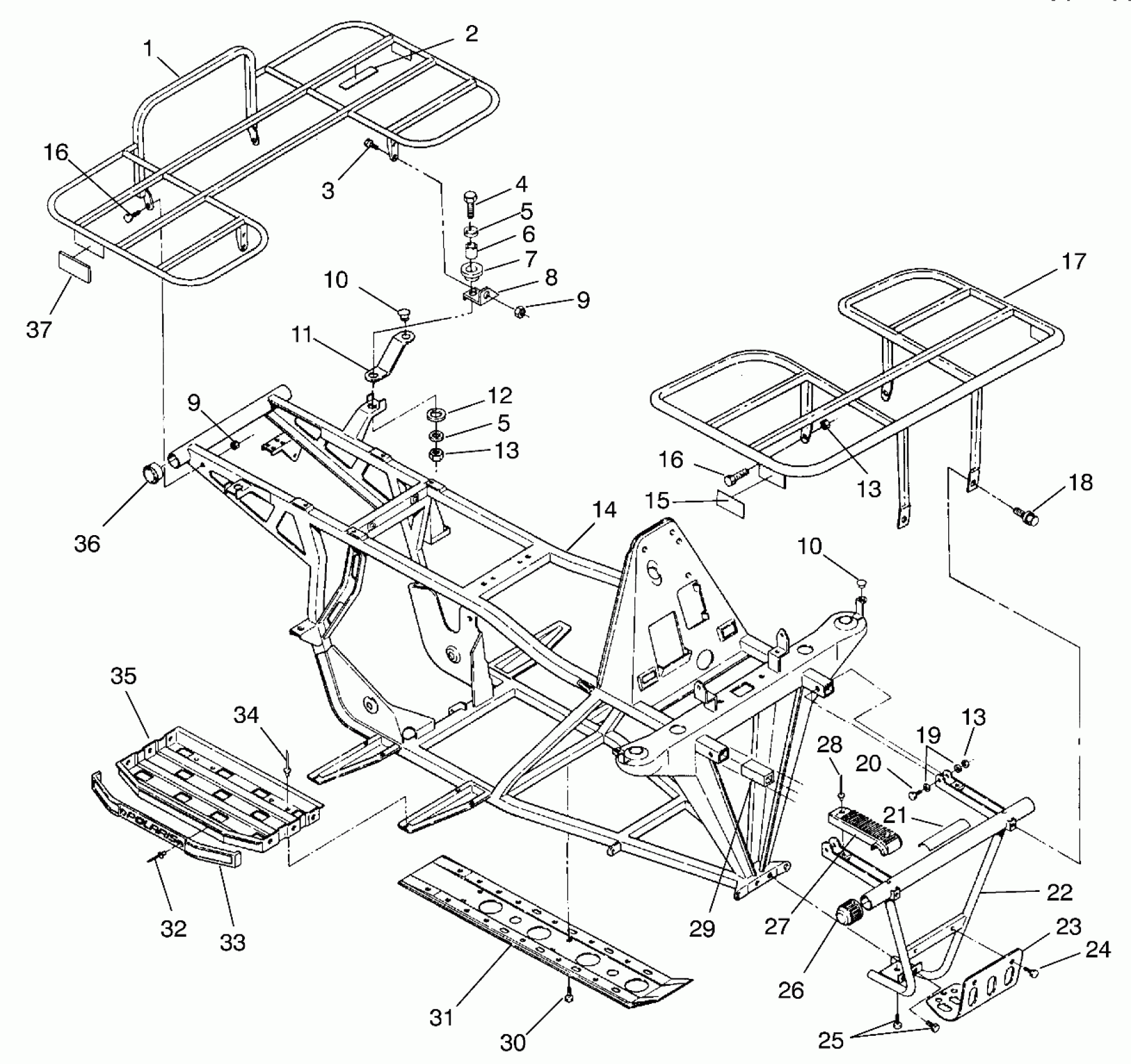

Polaris 250 2X4 - W937527 BUMPER/RACK MOUNTING - W937527 (4924022402a007) Diagram

#

Description
Price

1

RACK,REAR

2670136-067

Unavailable

2

PAD,RACK MOUNT

5810455

$3.19

3

SCREW(10)

7515355

Unavailable

4

SCREW-FLANGED(10)

7515304

$5.59

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

6

BUSHING-RES. MT.

5010192

$6.39

7

DAMPENER

5410241

Unavailable

8

BRKT,RH SUPPORT RACK, BLACK

5243469-067

Unavailable

8

BRKT,LH SUPPORT RACK, BLACK

5243468-067

Unavailable

9

NUT, NYLOK(10)

7542327

$4.79

9

NUT, NYLOK(10)

7542327

$4.79

10

BUMPER,RUBBER-HOLE,.5DIA(10)

5411426

Unavailable

10

BUMPER,RUBBER-HOLE,.5DIA(10)

5411426

Unavailable

11

SUPPORT,R.FENDER

5220902-067

$48.40

12

WASHER,RUBBER

5410436

$1.59

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

FRAME, MAIN

1040252-067

Unavailable

15

REFLECTOR ASM,AMBER

2670134

$9.70

16

BOLT

7512307

$3.99

16

BOLT

7512307

$3.99

17

RACK, FRONT

2670135-067

Unavailable

18

Screw

7512252

Unavailable

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

Bolt

7512329

$3.99

21

DECAL, F.SUSP.

7073455

Unavailable

22

BUMPER,FRT,BLK

2670106-067

Unavailable

23

PLATE, SKID, BUMPER, FRONT

5220981

Unavailable

24

SCREW(10)

7512208

$3.99

25

BOLT

7512399

$5.59

26

CAP, FRONT BUMPER END

5431013-157

$12.39

27

COVER, BUMPER MOUNTING BRACKET

5431023

$10.71

28

Rivet

7621229

Unavailable

29

PLUG, FRAME

5810467

Unavailable

30

BOLT(10)

7512232

$1.49

31

GUARD, ROCK, BLK.

5220922-067

$61.99

32

RIVET,(50)

7661825

$1.49

33

Trim, Footrest

5431484

Unavailable

34

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

35

FOOTPAD,LH,(ATV) Substituted by 1040274-117

1040274

$81.75

36

PLUG, BUMPER CAP(10) Substituted by 5432047

5410794

$4.92

37

REFLECTOR ASM,RED

2670133

$5.75
