10- Swimmer Heating System

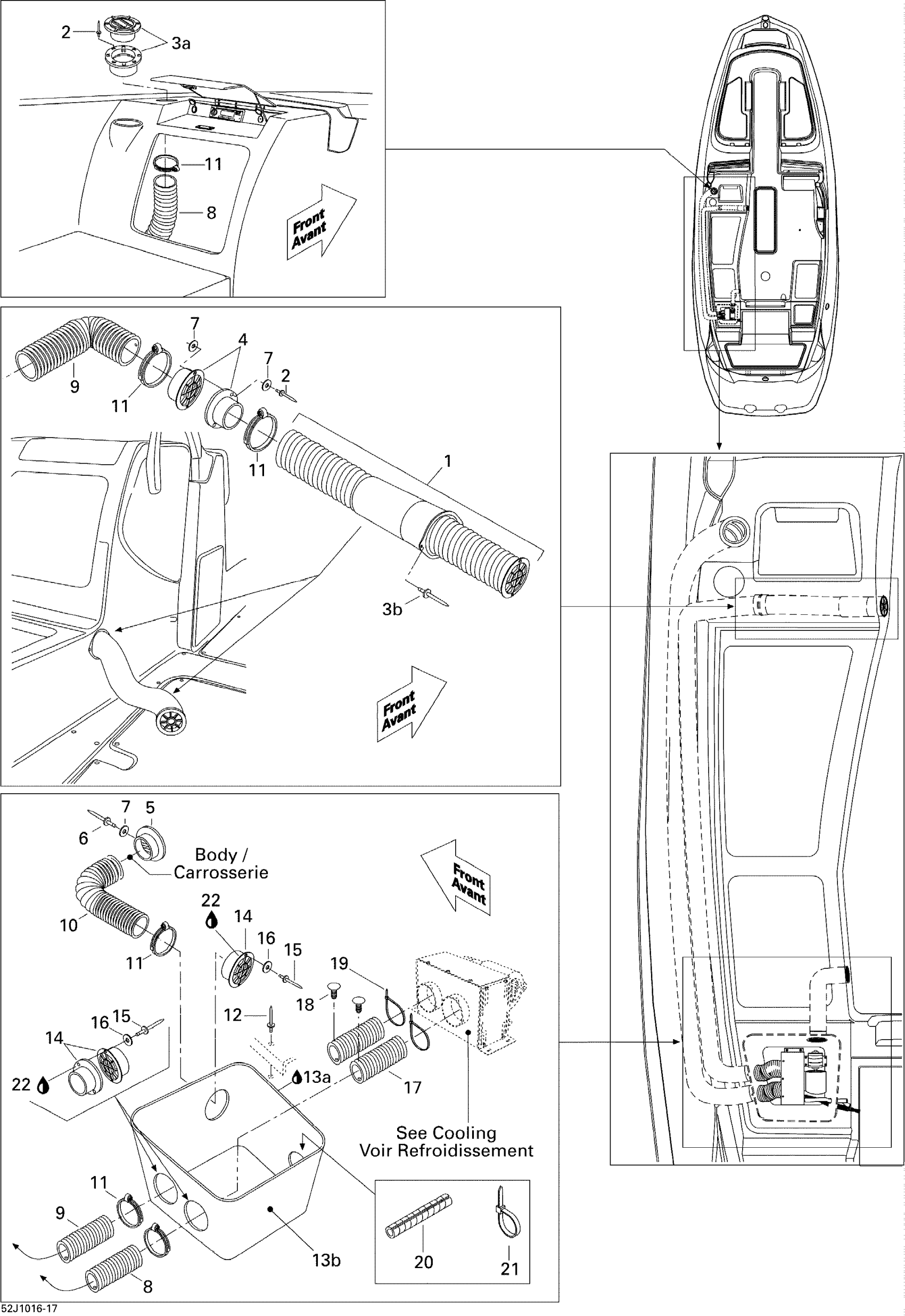

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 10- Swimmer Heating System Diagram
#
Description
Price
1
HEATER TUBE ASS'Y - Call your local BRP dealership
204073799
Unavailable
2
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
3a
HEATER VENT GRILL - Call your local BRP dealership
204072852
Unavailable
3b
Pop Rivet 1/8”
293150015
$0.40
4
HEATER GRILL - Call your local BRP dealership
204072853
Unavailable
5
GRILL S/S - INTAKE/HEATER - Call your local BRP dealership This part replaces 204073011.
204073852
Unavailable
6
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
7
Flat Washer 3 mm, Stainless Steel
234031600
$0.55
8
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
9
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
10
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
11
Tridon Clamp
293650179
$11.49
12
Pop Rivet 3/16”
204100051
Unavailable
13a
Regular Seat Strap (Yellow)
269000309
Unavailable
13b
Heater Storage
204073509
Unavailable
14
HEATER GRILL - Call your local BRP dealership
204072853
Unavailable
15
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
16
Flat Washer M3, Stainless
234032600
$0.55
17
VENT HOSE - Call your local BRP dealership
204073009
Unavailable
18
Black, Dart
293730006
$0.99
19
Tie Wrap 368 mm
293750008
$1.04
20
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
21
Tie-Rap 180 mm
414115200
$0.11
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
