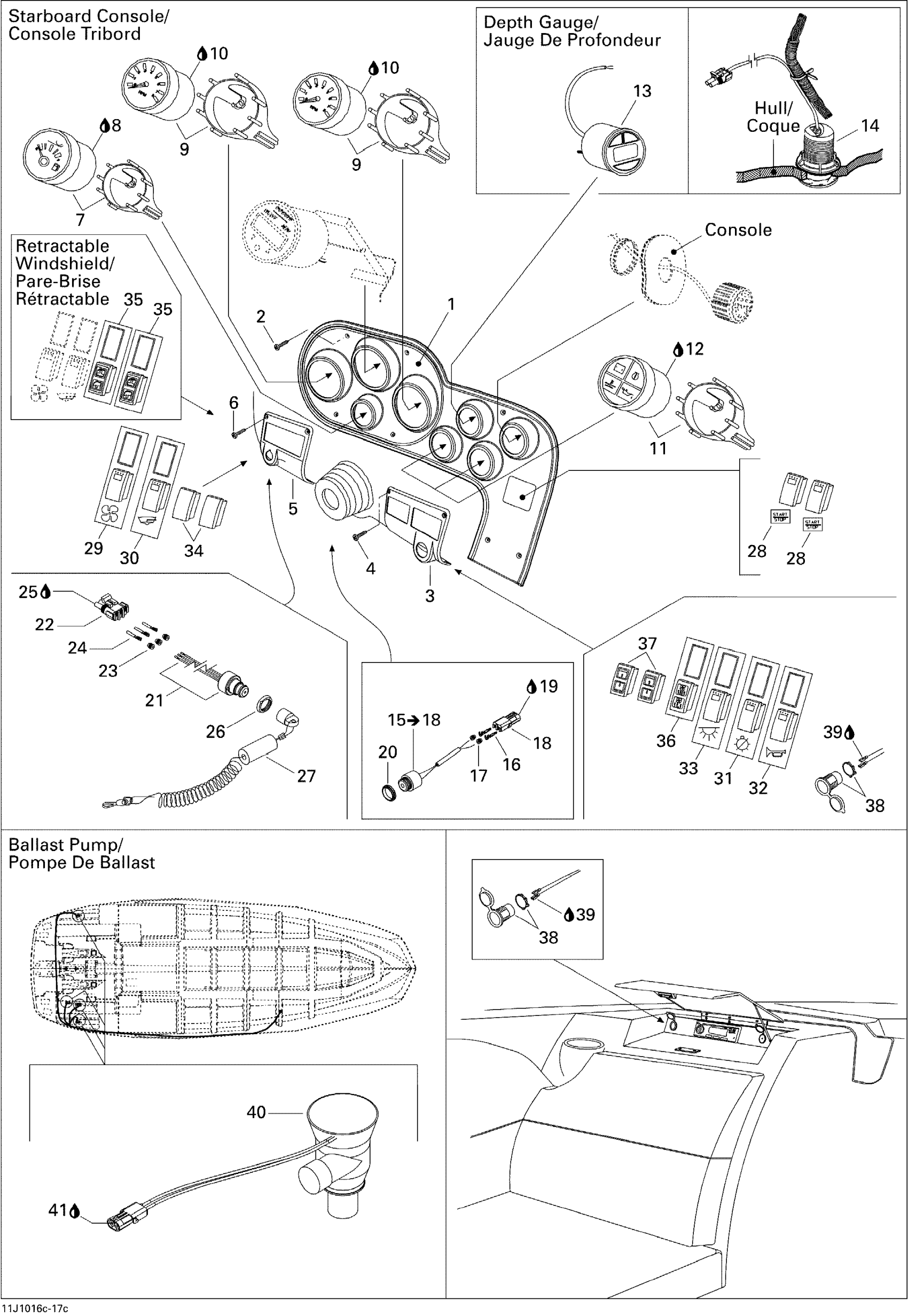

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 Electrical Accessories 3 Diagram

#

Description
Price

1

Fascia

204471334

Unavailable

2

Socket Head Screw M4 X 25

205342560

Unavailable

3

RH Panel Switch

204471173

Unavailable

4

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

5

LH PANEL SWITCH - Call your local BRP dealership

204471174

Unavailable

6

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

7

FUEL GAUGE - Call your local BRP dealership

204471163

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

9

Tachometer Gauge

204471162

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

ENGINE WARNING GAUGE - Call your local BRP dealership

204471201

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

13

Depth Gauge

204471157

Unavailable

14

Depth Sensor

204471292

Unavailable

15

Buzzer Ass'y

204470913

$82.81

16

Male Terminal | XT Models

278000222

$2.55

17

Wire Seal

278000218

$3.48

18

Female Housing, 2 Circuits

278000217

$7.59

19

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

20

Buzzer Nut

278000707

Unavailable

21

Safety Switch This part replaces 278002325.

278002773

$89.67

22

Male Housing, 3 Circuits

278000273

$7.59

23

Wire Seal

278000218

$3.48

24

Female Terminal

278000223

$2.55

25

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

26

Safety Nut (DESS Switch)

278002963

$2.72

27

Safety Lanyard

204471206

$68.87

28

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

29

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

30

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

31

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

32

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$44.75

33

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

34

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

35

WINDSHIELD SWITCH - Call your local BRP dealership | Retractable Windshield

204471167

Unavailable

36

HEATING SYSTEM SWITCH - Call your local BRP dealership

204471166

Unavailable

37

BALLAST SWITCH - Call your local BRP dealership

204471165

Unavailable

38

DC Outlet

710001248

$31.17

39

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

40

Ballast Pump | WAKE

204471407

Unavailable

41

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
