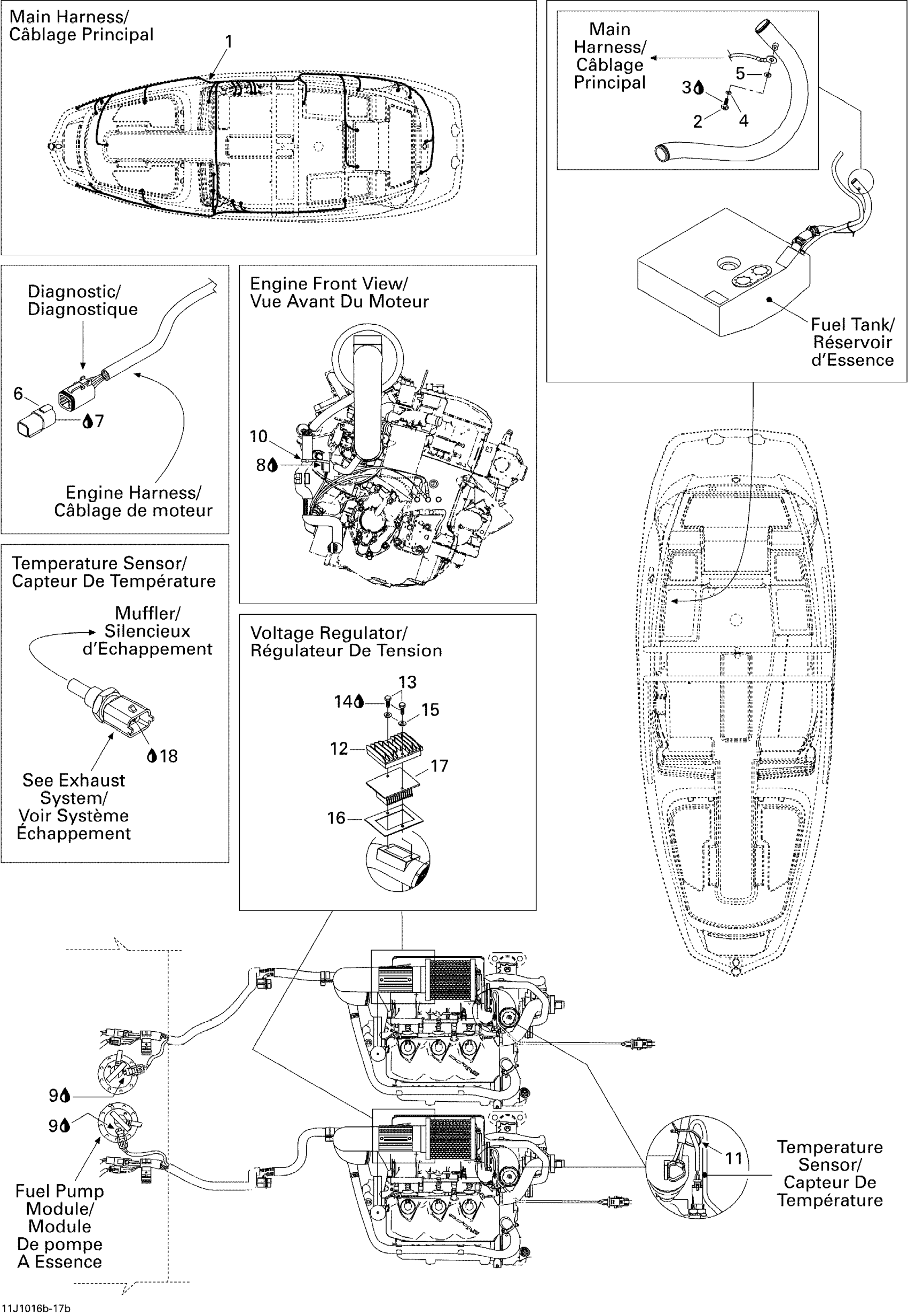

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 10- Electrical Accessories 2 Diagram

Accessory Harness

204471409

Unavailable

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Lock Washer 4 mm

234141601

$1.15

Flat Washer 4 mm, Stainless

234041600

$1.15

Diagnostic Connector

278002704

$19.49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Lock Washer 1/4”

211200025

$1.29

SEAL - Call your local BRP dealership

204471293

Unavailable

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
