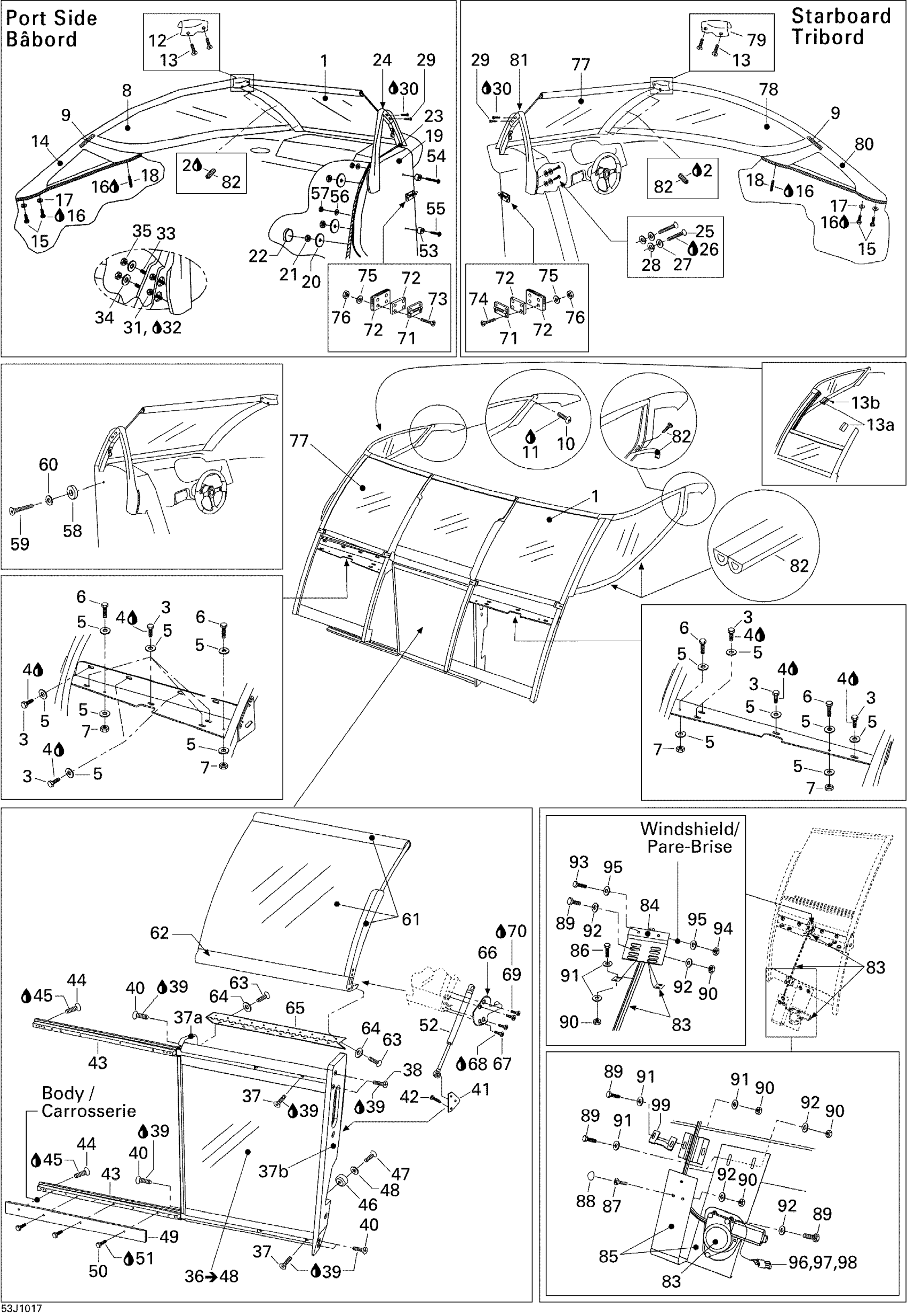

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 09- Windshield, Retractable Diagram

#

Description
Price

1

WINDSHIELD GATE ASS'Y, PORT SIDE - Call your local BRP dealership

204072991

Unavailable

2

Loctite 243, 10 ml

293800060

$21.49

3

Hex. Screw M6 X 16

207161660

$1.59

4

Loctite 243, 10 ml

293800060

$21.49

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Screw M6 X 25

207162560

$1.47

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

WINDSHIELD WING ASS'Y, PORT SIDE - Call your local BRP dealership

204072506

Unavailable

9

STAINLESS STEEL DOWEL PIN 1/4 - Call your local BRP dealership

204130183

Unavailable

10

SCREW M5 X 10 - Call your local BRP dealership

208651060

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Corner Cap, Port Side

204072925

Unavailable

13

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

13a

RUBBER GROMMET - Call your local BRP dealership

204130263

Unavailable

13b

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

14

WINDSHIELD SUPPORT - Call your local BRP dealership

204440049

Unavailable

15

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Filler Board Ass'y

204440065

Unavailable

20

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

21

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

22

BLACK CAP 1 1/2 - Call your local BRP dealership

204130190

Unavailable

23

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

24

STANCHION, PORT SIDE - Call your local BRP dealership

204440048

Unavailable

25

Hex. Screw M8 X 18

207181860

$1.48

26

Loctite 243, 10 ml

293800060

$21.49

27

Flat Washer 8 mm, Stainless

234082600

$2.43

28

Lock Washer 8 mm, Stainless

234181601

$0.55

29

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

THREADED STUD M8 X 60 - Call your local BRP dealership

204100217

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

THREADED STUD M8 X 80 - Call your local BRP dealership

204100218

Unavailable

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Hex. Elastic Nut M8

232581600

$1.48

36

Sliding Door Ass'y | Includes 36 to 48

204440067

Unavailable

37

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

37a

END CAP RH - Call your local BRP dealership

204072732

Unavailable

37b

Sliding Door End Cap

204440441

Unavailable

38

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

39

Loctite 243, 10 ml

293800060

$21.49

40

Phillips Screw M6 X 25

208562560

$2.32

41

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

42

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

43

DRAWER SLIDE - Call your local BRP dealership

204073342

Unavailable

44

Phillips Screw M4 X 12

208641260

$1.03

45

Loctite 243, 10 ml

293800060

$21.49

46

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

47

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

48

Flat Washer M3, Stainless

234032600

$0.55

49

Walk-Thru Door Support

204072896

Unavailable

50

Hex. Screw M6 X 30

207163060

$1.48

51

Loctite 243, 10 ml

293800060

$21.49

52

GAS SHOCK - Call your local BRP dealership

204072899

Unavailable

53

LOCATOR STUD - Call your local BRP dealership

204130166

Unavailable

54

Socket Screw M5 X 60

205056060

$2.11

55

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205053560

Unavailable

56

Flat Washer M5, Stainless

234051600

$0.77

57

Hex. Elastic Nut M5 | X

232551600

$1.15

58

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

59

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

60

Flat Washer M3, Stainless

234032600

$0.55

61

CENTER DOOR WINDOW - Call your local BRP dealership

204072727

Unavailable

62

CENTRAL WINDOW EXTRUSION - Call your local BRP dealership

204073096

Unavailable

63

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

64

Flat Washer 4 mm, Stainless

234041600

$1.15

65

HINGE - Call your local BRP dealership

204073092

Unavailable

66

SHOCK SUPPORT, PORT SIDE - Call your local BRP dealership

204440045

Unavailable

66

SHOCK SUPPORT, STARBOARD - Call your local BRP dealership

204440046

Unavailable

67

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

68

Loctite 243, 10 ml

293800060

$21.49

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Loctite 243, 10 ml

293800060

$21.49

71

Latch Bolt

204100233

Unavailable

72

LATCH SPACER - Call your local BRP dealership

204440038

Unavailable

72

LATCH SPACER - Call your local BRP dealership

204440052

Unavailable

73

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

74

Phillips Screw M4 X 30

208443060

$1.48

75

Flat Washer 4 mm, Stainless

234041600

$1.15

76

Elastic Stop Nut M4

232541600

$1.15

77

WINDSHIELD GATE ASS'Y, STARBOARD - Call your local BRP dealership

204072995

Unavailable

78

Windshield Wing Ass'y, Starboard

204072517

Unavailable

79

Corner Cap, Starboard

204072926

Unavailable

80

Windshield Wing Support, Starboard

204440051

Unavailable

81

STANCHION, STARBOARD - Call your local BRP dealership

204440050

Unavailable

82

WINDSHIELD INSTALLATION HARDWARE KIT - Call your local BRP dealership

204072544

Unavailable

83

WINDSHIELD ACTUATOR - Call your local BRP dealership

204072539

Unavailable

84

WINDSHIELD ACTUATOR BRACKET - Call your local BRP dealership

204073015

Unavailable

85

ACTUATOR MOTOR SUPPORT - Call your local BRP dealership

204073014

Unavailable

86

Hex. Screw M6 X 45

207164560

$1.89

87

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

88

CAP SCREW - Call your local BRP dealership

204440047

Unavailable

89

Hex. Screw M6 X 16

207161660

$1.59

90

Hex. Elastic Stop Nut M6

232561600

$1.15

91

Stainless Flat Washer M6

234061600

$0.33

92

Flat Washer M6, Stainless

234062600

$0.77

93

Hex. Screw M5 X 20

207152060

$1.47

94

Hex. Elastic Nut M5 | X

232551600

$1.15

95

Flat Washer M5, Stainless

234051600

$0.77

96

Female Housing, 2 Circuits

278000217

$9.59

97

Male Terminal | XT Models

278000222

$3.19

98

Wire Seal

278000218

$4.39

99

WINDSHIELD STOPPER - Call your local BRP dealership

204440029

Unavailable
