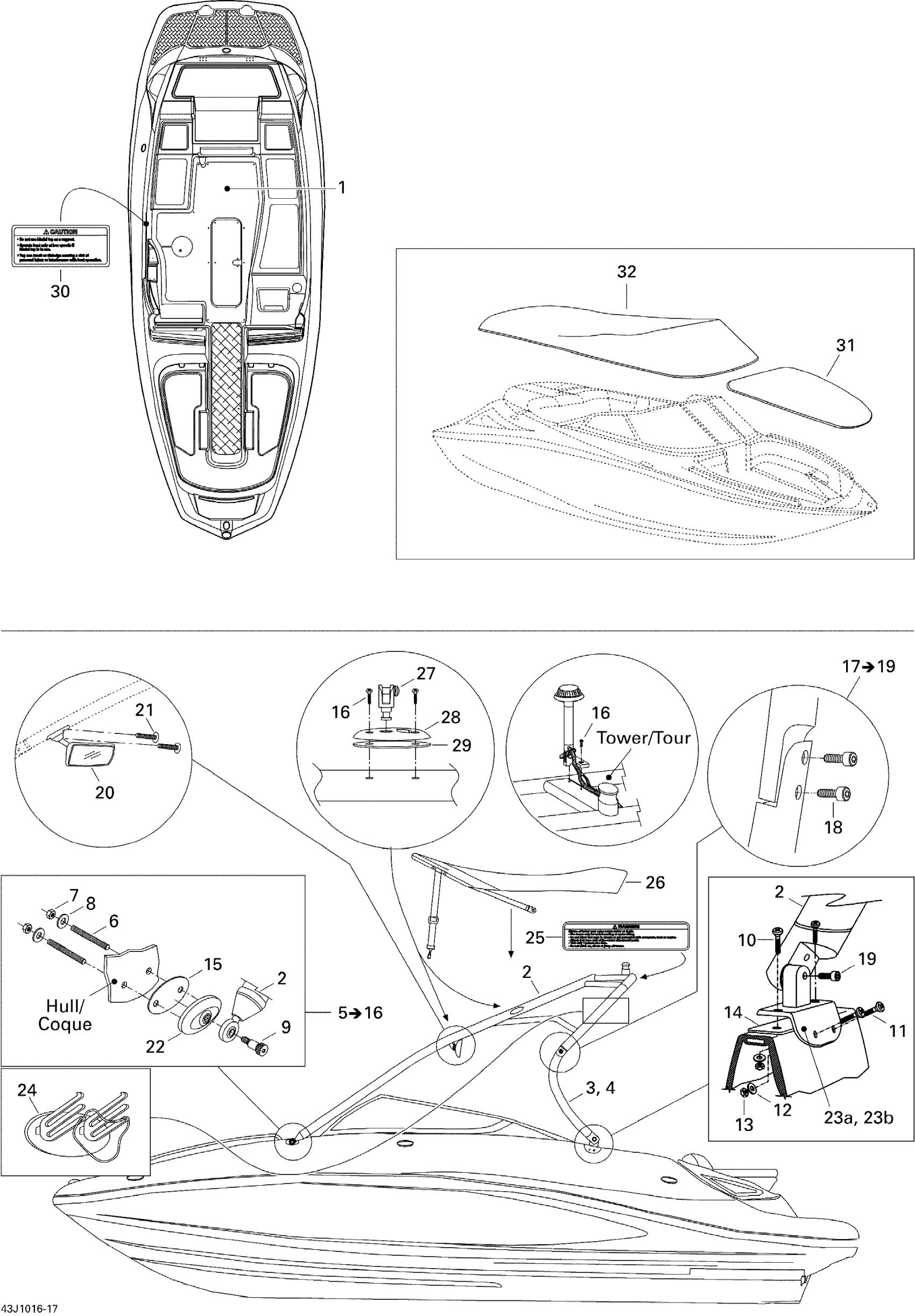

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 09- Tower And Bimini Top Diagram

#

Description
Price

1

ANTI SLIP MAT - Call your local BRP dealership

204950203

Unavailable

2

Tower Upper, Wake

204950205

Unavailable

3

Lower Tower | Port

295501106

Unavailable

4

Lower Tower | Port

295501106

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Threaded Stud

204100152

Unavailable

7

LOCK NUT 1/2? - Call your local BRP dealership

204100131

Unavailable

8

FENDER WASHER - Call your local BRP dealership

204100132

Unavailable

9

SCREW-BUTTON HD.CAP 1/2-13 X 1.5 SS - Call your local BRP dealership

204100242

Unavailable

10

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

11

HEX. SCREW 1/4-20 X 1 1/2 - Call your local BRP dealership

204100250

Unavailable

12

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

13

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

14

REAR GASKET - Call your local BRP dealership

204130304

Unavailable

15

Front Gasket

204130272

Unavailable

16

PHILLIP HEAD SCREW 8-18 X 1 - Call your local BRP dealership

204100240

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

19

HEX. SCREW 3/8-16 X 2 - Call your local BRP dealership

204100251

Unavailable

20

SKI MIRROR - Call your local BRP dealership This part replaces 204071420.

295100386

Unavailable

21

PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership

204100129

Unavailable

22

Black, Front Tower Support

204950218

Unavailable

23a

REAR TOWER SUPPORT, PORT - Call your local BRP dealership | Port

204950219

Unavailable

23b

REAR TOWER SUPPORT, STARBOARD - Call your local BRP dealership | Starboard

204950220

Unavailable

24

WAKEBOARD RACK - Call your local BRP dealership

204950147

Unavailable

25

WARNING LABEL, TOWER - Call your local BRP dealership | With Tower

204902068

Unavailable

26

BIMINI TOP ASS'Y, RED - Call your local BRP dealership

204950227

Unavailable

27

BIMINI POST - Call your local BRP dealership

204950033

Unavailable

28

BIMINI BASE - Call your local BRP dealership

204950034

Unavailable

29

BIMINI SPACER - Call your local BRP dealership

204950031

Unavailable

30

CAUTION LABEL, BIMINI TOP - Call your local BRP dealership

204901331

Unavailable

31

BOW COVER - Call your local BRP dealership

204950103

Unavailable

32

COCKPIT COVER - Call your local BRP dealership

204950217

Unavailable
