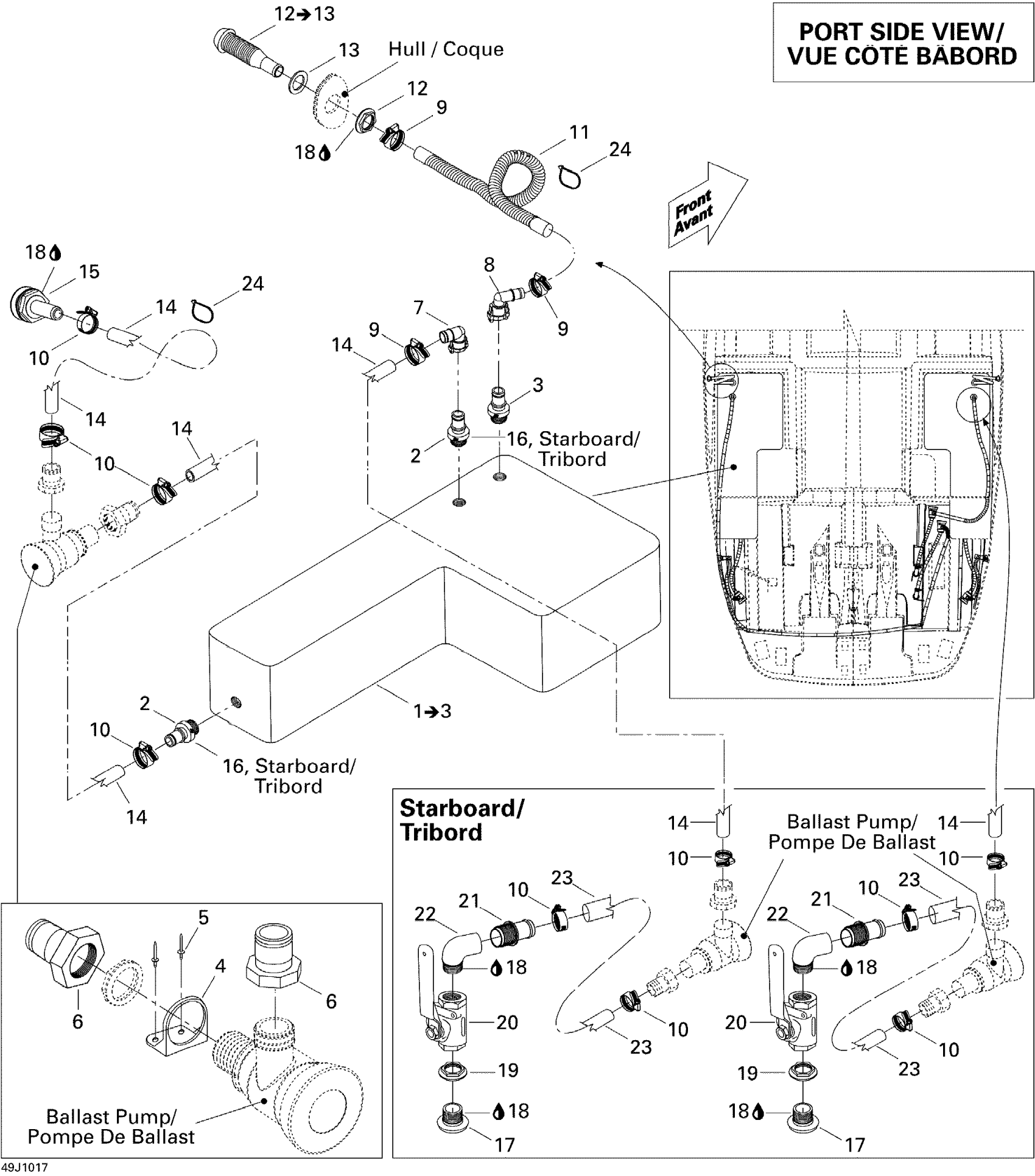

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 09- Ballast Tank Diagram
#
Description
Price
1
BALLAST TANK ASS'Y, PORT - Call your local BRP dealership | Includes 43 to 45
204061375
Unavailable
1
BALLAST TANK ASS'Y, STARBOARD - Call your local BRP dealership | Includes 46 to 48
204061376
Unavailable
2
VALVE FITTING 1 - Call your local BRP dealership
204130265
Unavailable
3
FITTING - Call your local BRP dealership
204130188
Unavailable
4
MOUNTING PUMP BRACKET - Call your local BRP dealership
204061378
Unavailable
5
RIVET - Call your local BRP dealership
293150065
Unavailable
6
PUMP FITTING - Call your local BRP dealership
204130266
Unavailable
7
ELBOW FITTING 1 - Call your local BRP dealership
204130267
Unavailable
8
ELBOW FITTING - Call your local BRP dealership
204130189
Unavailable
9
Tridon Clamp
293650016
$10.99
10
Tridon Gear Clamp
293650045
$5.69
11
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
12
Fitting
293710162
$13.49
13
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
14
BALLAST HOSE 1-1/8 - Call your local BRP dealership
204061377
Unavailable
15
THRU HULL 1-18 STANLESS STEEL - Call your local BRP dealership
204130269
Unavailable
16
STRAIGHT FITTING 1 - Call your local BRP dealership
204130268
Unavailable
17
THRU HULL FITTING, 3/4 - Call your local BRP dealership
204061017
Unavailable
18
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
19
Flange Nut 3/4", Bronze
204100165
Unavailable
20
Shut-OFF Valve
204061379
Unavailable
21
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
22
ELBOW FITTING 3/4, YELLOW - Call your local BRP dealership
204130270
Unavailable
23
RUBBER HOSE, PORT - Call your local BRP dealership
204061380
Unavailable
24
Tie Wrap 368 mm
293750008
$1.04
