01- Engine And Air Intake Silencer

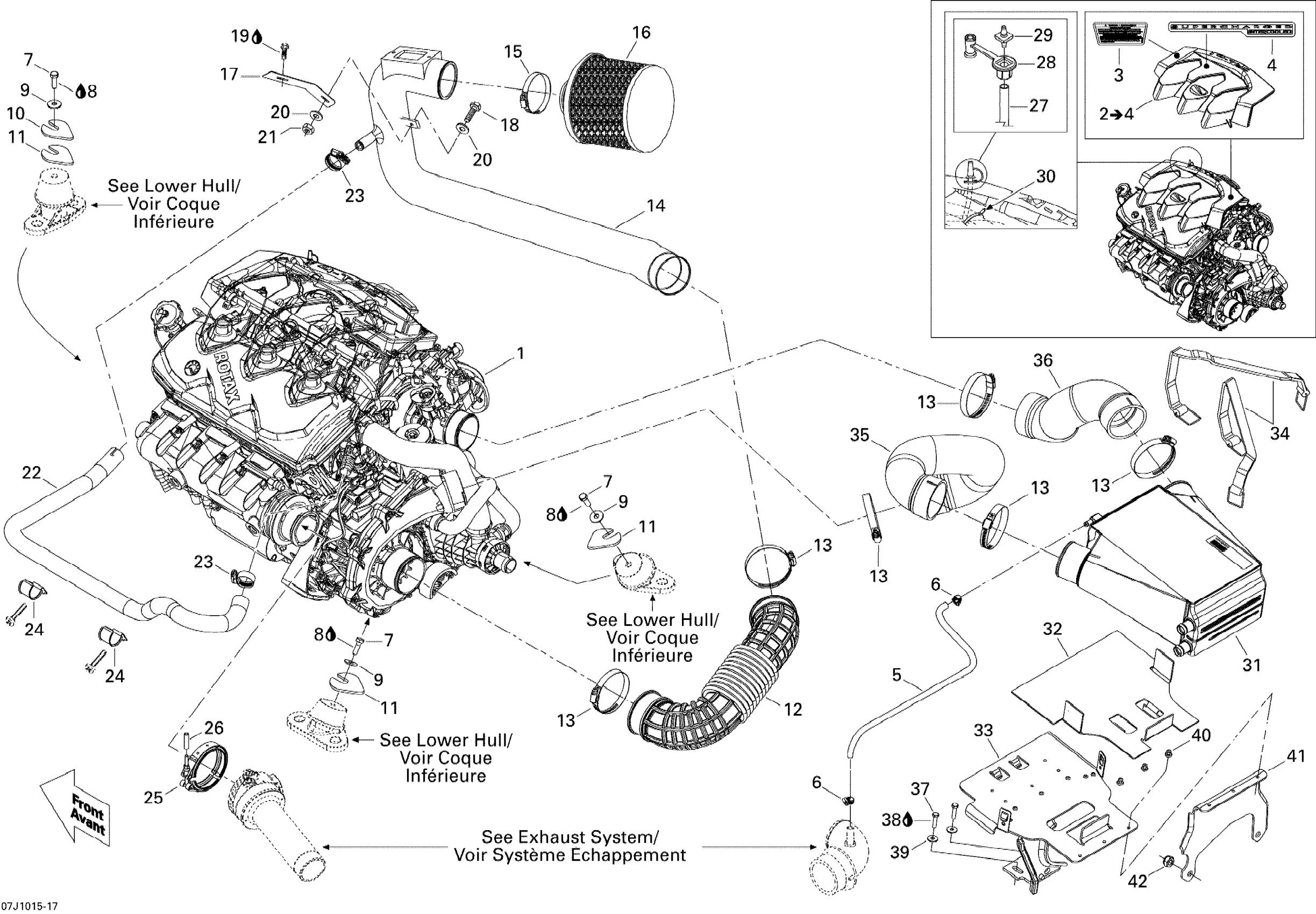

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 01- Engine And Air Intake Silencer Diagram
#
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
2
ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3
270000727
Unavailable
3
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
4
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership
219902676
Unavailable
5
Was 275500549 Hose 1/4"
219704357
$194.99
6
Tridon Gear Clamp
293650170
$1.99
7
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
8
Loctite 243, 10 ml
293800060
$21.49
9
Flat Washer 8 mm, Stainless
234082600
$2.43
10
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
11
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
12
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
13
Tridon Clamp
293650179
$11.49
14
AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst
204250437
Unavailable
15
Tridon Clamp
293650179
$11.49
16
Air Filter This part replaces 204250436.
204250466
$137.99
17
BRACKET - Call your local BRP dealership | Without Catalyst
204250404
Unavailable
18
Hex. Screw M6 X 30
207163060
$1.48
19
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
20
Flat Washer, Stainless/Neoprene
211200055
$0.73
21
Hex. Elastic Stop Nut M6
232561600
$1.15
22
FORMED HOSE - Call your local BRP dealership
270000808
Unavailable
23
Tridon Gear Clamp
293650051
$4.19
24
Retainer
275500664
$14.75
25
Exhaust Clamp
274001417
$58.99
26
Polyurethane Hose 10000Mm Long
219704410
$56.99
27
HOSE 3 MM - Call your local BRP dealership
270000469
Unavailable
28
GROMMET CAP - Call your local BRP dealership
293830120
Unavailable
29
CONNECTOR - Call your local BRP dealership
293710107
$1.09
30
Tie Wrap 142 mm
293750002
$1.25
31
Intercooler
276000179
Unavailable
32
RUBBER PAD - Call your local BRP dealership
293830124
Unavailable
33
COOLER SUPPORT - Call your local BRP dealership
270000752
Unavailable
34
Fuel Tank Strap
293850093
$21.99
35
Inlet Hose This part replaces 273000284.
273000402
$83.49
35
Inlet Hose Cooler | Port Side
273000238
Unavailable
36
Outlet Hose | Starboard This part replaces 273000285.
273000403
$51.99
36
Outlet Hose Cooler | Port Side
273000239
Unavailable
37
Hex. Screw M6 X 25
207162560
$1.47
38
Loctite 243, 10 ml
293800060
$21.49
39
Flat Washer M6, Stainless
234062600
$0.77
40
Pop Rivet 3/16"
293150039
$1.49
41
Rear Support
204250443
Unavailable
42
Elastic Stop Nut M10, Brass
232501200
$2.64
