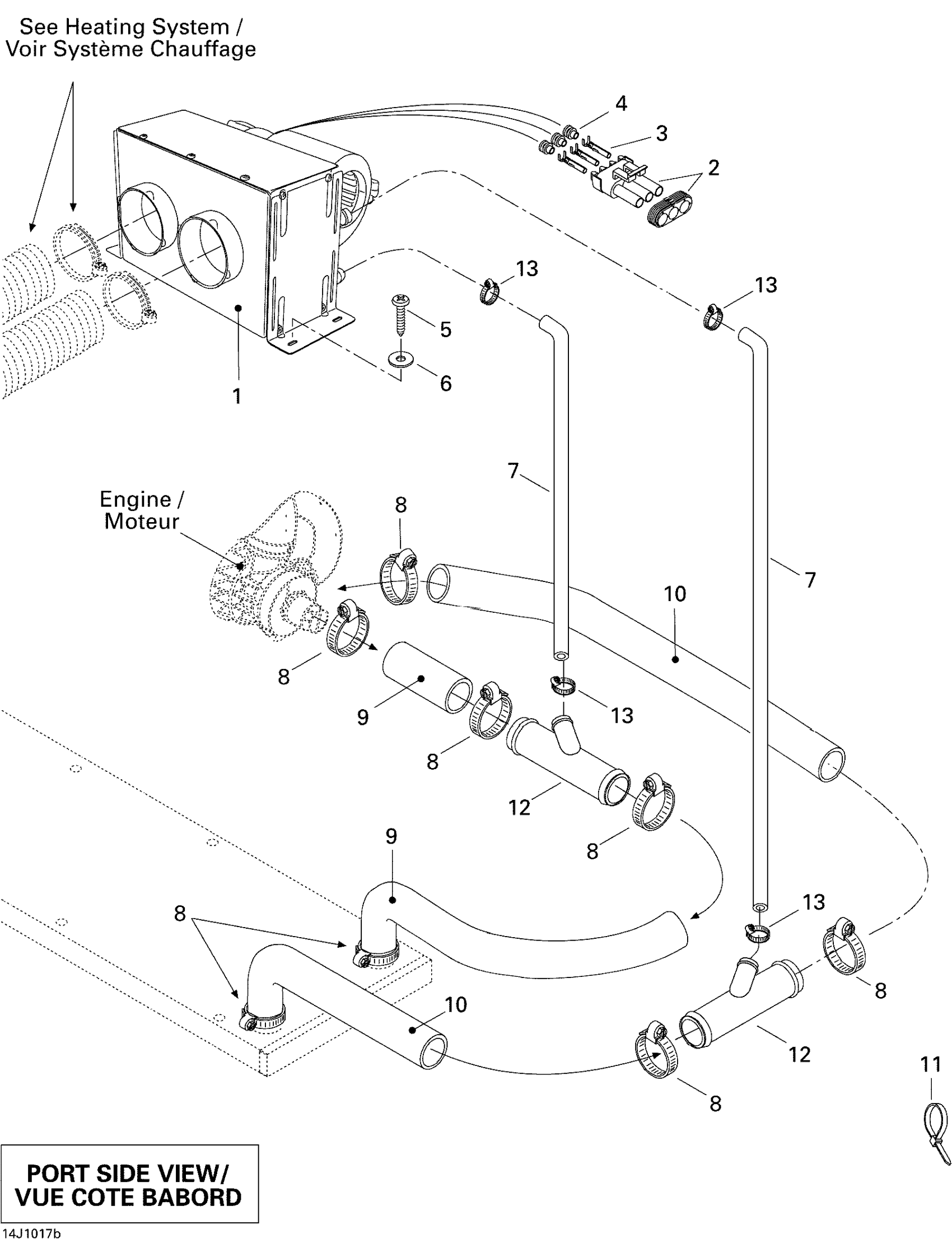

Sea-doo 230 Wake SE 510, 2x255 1503HO, 2010 Cooling System Diagram

#

Description

Price

1

HEATER UNIT - Call your local BRP dealership | WAKE

204300198

Unavailable

2

Male Housing, 3 Circuits

278000273

$7.59

3

Female Terminal

278000223

$2.55

4

Wire Seal

278000218

$3.48

5

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.64

7

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

8

Tridon Gear Clamp

293650045

$4.51

9

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

10

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

11

Tie-Rap 180 mm

414115200

$0.09

12

Y-Fitting | WAKE

204130174

Unavailable

13

Tridon Gear Clamp

293650045

$4.51
