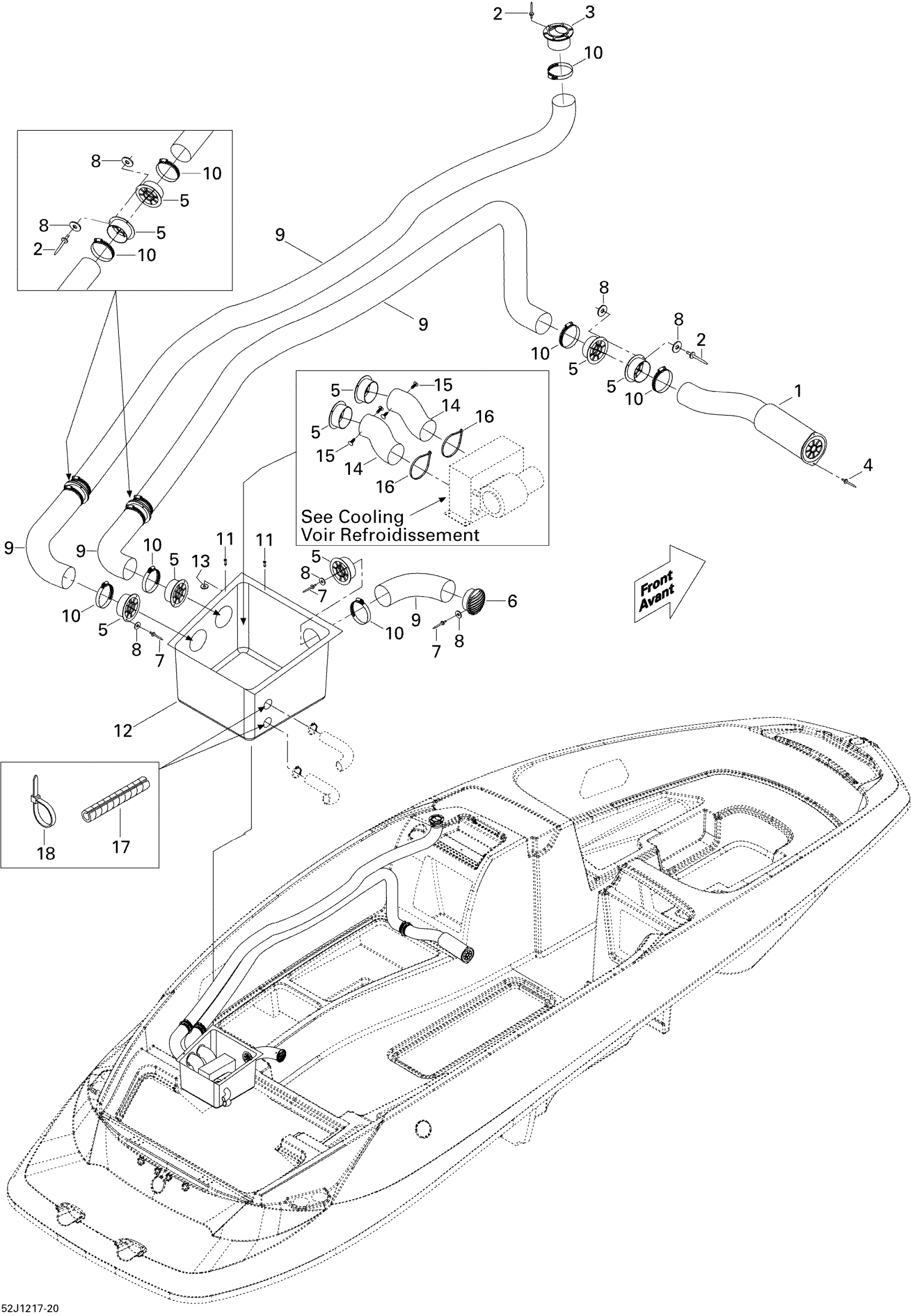

Sea-doo 230 Wake 520, 2012 10- Swimmer Heating System Diagram

HEATER TUBE ASS'Y - Call your local BRP dealership

204073799

Unavailable

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

HEATER VENT GRILL - Call your local BRP dealership

204072852

Unavailable

Pop Rivet 1/8”

293150015

$0.40

HEATER GRILL - Call your local BRP dealership

204072853

Unavailable

GRILL S/S - INTAKE/HEATER - Call your local BRP dealership This part replaces 204073011.

204073852

Unavailable

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

Tridon Clamp

293650179

$11.49

Pop Rivet 3/16”

204100051

Unavailable

230 STORAGE-HEATER - Call your local BRP dealership

291003161

Unavailable

Flat Washer M3, Stainless

234032600

$0.55

VENT HOSE - Call your local BRP dealership

204073009

Unavailable

Black, Dart

293730006

$0.99

Tie Wrap 368 mm

293750008

$1.04

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

Tie-Rap 180 mm

414115200

$0.11
