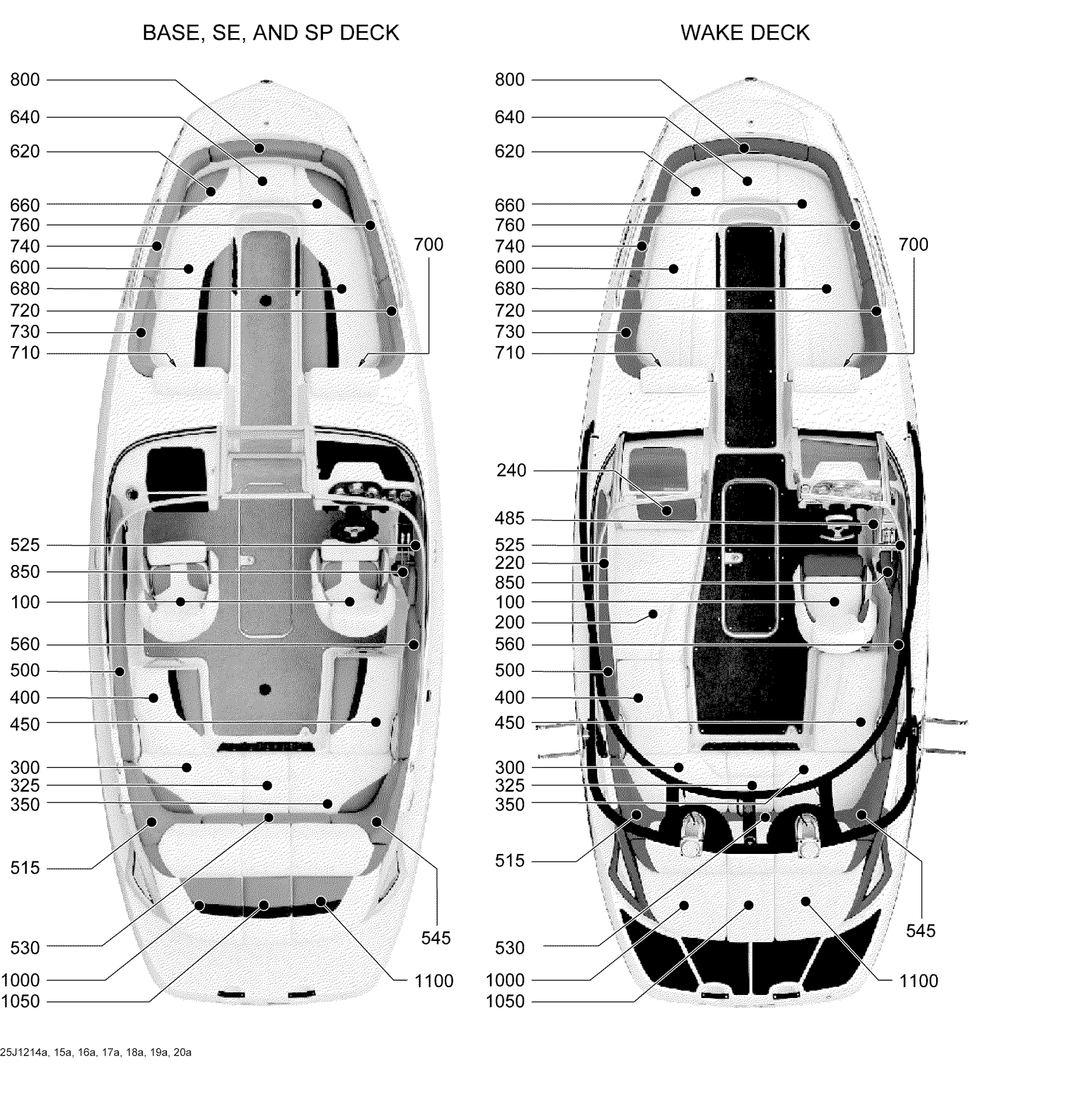

Sea-doo 230 Wake 520, 2012 09- Seat 1 Diagram
#
Description
Price
100
SEAT-BUCKET ASSY - Call your local BRP dealership | WAKE This part replaces 269002327.
269002738
Unavailable
200
CUSHION ASSY/SPOTTER - Call your local BRP dealership | WAKE This part replaces 269002597.
269002674
Unavailable
220
BACKREST ASSY/GUNNEL-SPOTTER - Call your local BRP dealership | WAKE This part replaces 269002424.
269002731
Unavailable
240
BACKREST ASSY/STORAGE-SPOTTER - Call your local BRP dealership | WAKE This part replaces 269002425.
269002675
Unavailable
300
CUSHION ASSY/REAR-PORT - Call your local BRP dealership | WAKE This part replaces 269002598.
269002678
Unavailable
325
CUSHION ASSY/REAR-CENTER - Call your local BRP dealership | WAKE This part replaces 269002600.
269002762
Unavailable
350
CUSHION ASSY/REAR-STBD - Call your local BRP dealership | WAKE This part replaces 269002599.
269002679
Unavailable
400
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | WAKE
269002602
Unavailable
450
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | WAKE
269002603
Unavailable
485
Lower Knee Pad
269002156
Unavailable
500
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | WAKE
269001973
Unavailable
515
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | WAKE
269001974
Unavailable
525
SIDE FLAT BACKREST, STARBOARD - Call your local BRP dealership | WAKE
269002307
Unavailable
530
REAR CENTER BACKREST - Call your local BRP dealership | WAKE
269001976
Unavailable
545
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | WAKE
269001977
Unavailable
560
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | WAKE
269001978
Unavailable
600
CUSHION ASS'Y, BOW PORT SIDE - Call your local BRP dealership | WAKE
269002604
Unavailable
620
CUSHION ASS'Y, BOW-FRONT, PORT SIDE - Call your local BRP dealership | WAKE
269002606
Unavailable
640
CUSHION ASS'Y, BOW-CENTER - Call your local BRP dealership | WAKE
269002608
Unavailable
660
CUSHION ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership | WAKE
269002607
Unavailable
680
CUSHION ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership | WAKE
269002605
Unavailable
700
BACKREST ASS'Y, BOW PORT, ACCESS DOOR - Call your local BRP dealership | WAKE
269002318
Unavailable
710
BACKREST ASSY/BOW-STBD ACCESS DOOR - Call your local BRP dealership | WAKE This part replaces 269002320.
269002684
Unavailable
720
BACKREST ASS'Y, BOW PORT SIDE - Call your local BRP dealership | WAKE
269002322
Unavailable
730
BACKREST ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership | WAKE
269002324
Unavailable
740
BOW FRONT BACKREST, PORT SIDE - Call your local BRP dealership | WAKE
269001986
Unavailable
760
BOW FRONT BACKREST, STARBOARD SIDE - Call your local BRP dealership | WAKE
269001987
Unavailable
800
BACKREST ASS'Y, BOW CENTER - Call your local BRP dealership | WAKE
269002330
Unavailable
850
ELBOWREST ASSY/STBD - Call your local BRP dealership
269002161
Unavailable
1000
SUNDECK CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | WAKE
269002609
Unavailable
1050
SUNDECK CUSHION ASS'Y, CENTER - Call your local BRP dealership | WAKE
269002611
Unavailable
1100
SUNDECK CUSHION ASS'Y, STARBORD SIDE - Call your local BRP dealership | WAKE
269002610
Unavailable
