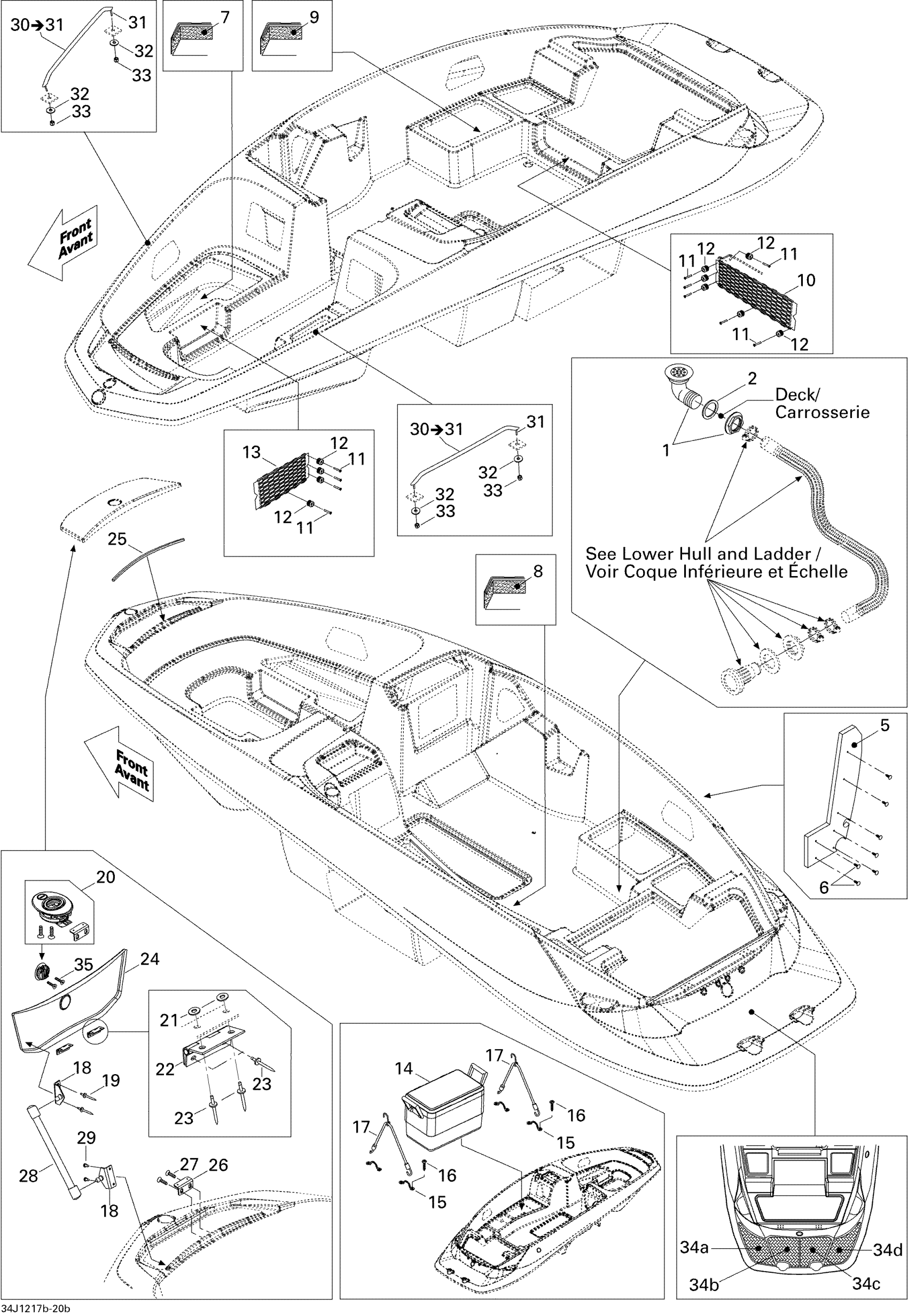

Sea-doo 230 Wake 520, 2012 09- Body And Accessories 2 Diagram
#
1
DRAIN FITTING - Call your local BRP dealership
204073301
Unavailable
2
GASKET - Call your local BRP dealership
292800106
Unavailable
3
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
4
Norma Clamp
293650074
$17.05
5
SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership
204072504
Unavailable
6
Black Dart
293730014
$0.99
7
FRONT CARPET - Call your local BRP dealership
291003315
Unavailable
8
Not Available As Spare Parts
XXX
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
STORAGE NET, REAR - Call your local BRP dealership
291003523
Unavailable
11
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
12
Attachment Knob
204073221
$8.19
13
STORAGE NET - Call your local BRP dealership
291003524
Unavailable
14
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership
204073816
Unavailable
15
STRAP EYE - Call your local BRP dealership
204071845
Unavailable
16
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
17
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
18
Shock Bracket
204073074
$27.99
19
POP RIVET 3/16 - Call your local BRP dealership
204130050
Unavailable
20
Latch, Stainless Steel
291003415
Unavailable
21
Flat Washer M5, Stainless
234051600
$0.77
22
HINGE - Call your local BRP dealership
204072601
Unavailable
23
Avdel Rivet 3/16"
293150037
$0.56
24
ANCHOR LID - Call your local BRP dealership
291003713
Unavailable
25
Was 293200017 Neoprene Seal
219704365
$149.99
26
KEEPER - Call your local BRP dealership
204070060
Unavailable
27
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
28
GAS SHOCK - Call your local BRP dealership
204073017
Unavailable
29
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
30
BOW RAIL ASS'Y - Call your local BRP dealership | Includes 27 to 28
204073416
Unavailable
31
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
32
Flat Washer 10 mm, Stainless
234002600
$2.22
33
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
34a
SWIM PLATFORM MAT, OUTSIDE PORT - Call your local BRP dealership | WAKE
291003727
Unavailable
34b
SWIM PLATFORM MAT, INSIDE PORT - Call your local BRP dealership | WAKE
291003728
Unavailable
34c
SWIM PLATFORM MAT, INSIDE STARBOARD - Call your local BRP dealership | WAKE
291003729
Unavailable
34d
SWIM PLATFORM MAT, OUTSIDE STARBOARD - Call your local BRP dealership | WAKE
291003730
Unavailable
35
Phillips Screw M5 X 25
208652560
$3.39
