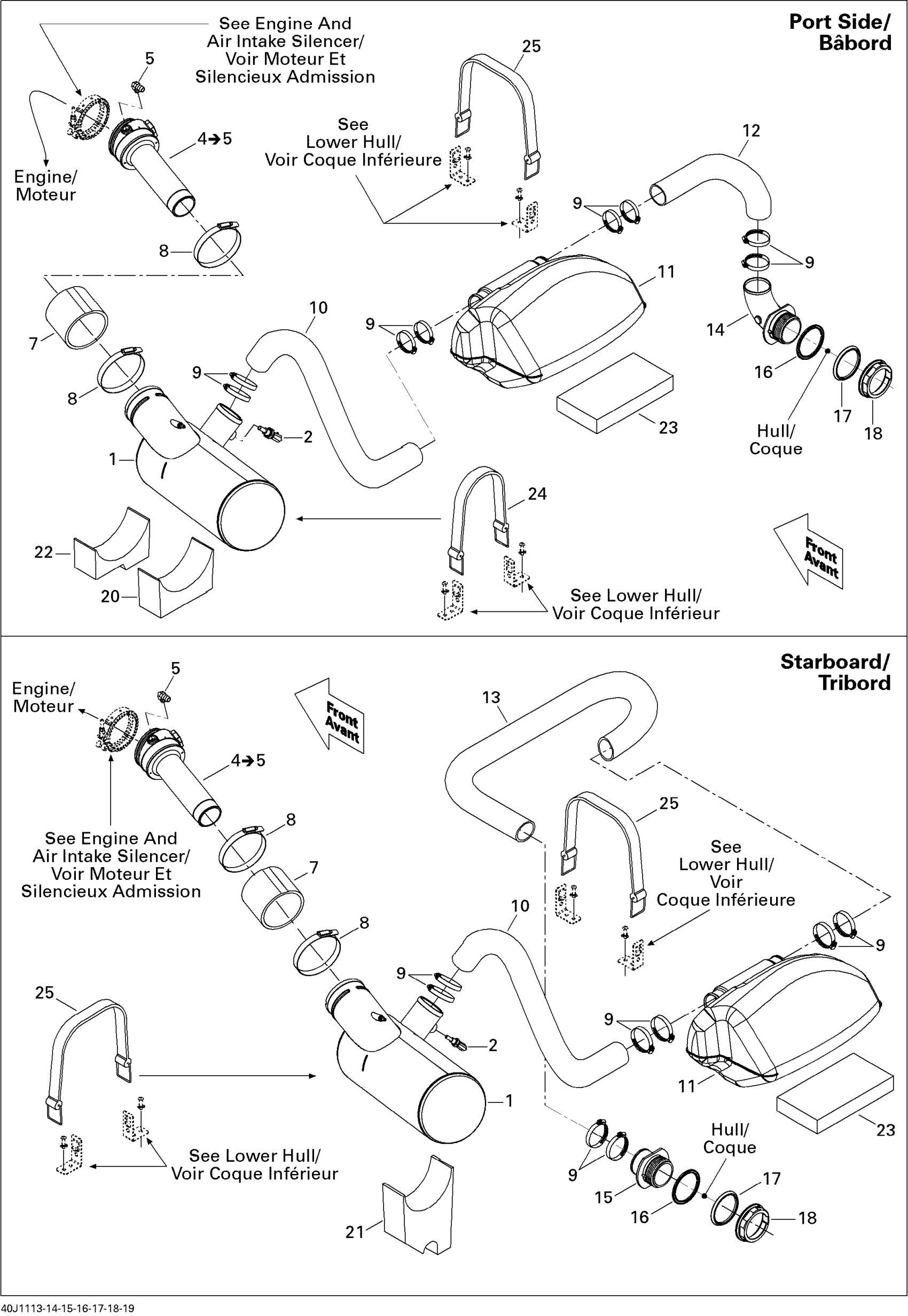

Sea-doo 230 Wake 520, 2012 01- Exhaust System Diagram
#
Description
Price
1
MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst
274001350
Unavailable
2
Temperature Sensor
278002895
$39.99
4
NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.
423462834
$194.99
5
Elbow Fitting 90° | Without Catalyst
293700023
$20.99
7
Hose | Without Catalyst
274001348
$24.49
8
Gear Clamp This part replaces 293650281.
293650202
$15.88
9
Tridon Clamp
293650179
$11.49
10
EXHAUST HOSE - Call your local BRP dealership
204340533
Unavailable
11
RH Resonator
274001045
$217.49
12
EXHAUST HOSE - Call your local BRP dealership | Port Side
204340488
Unavailable
13
EXHAUST HOSE - Call your local BRP dealership | Starboard
204340519
Unavailable
14
Exhaust Hose, Outlet
274001389
$29.49
15
Exhaust Hose, Outlet
274001391
$29.49
16
GASKET - Call your local BRP dealership
293250041
Unavailable
17
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
18
Nut 72 mm
274000224
$16.34
20
SUPPORT_EXHAUST - Call your local BRP dealership
204340502
Unavailable
21
MUFFLER SUPPORT - Call your local BRP dealership
204340521
Unavailable
22
MUFFLER SUPPORT - Call your local BRP dealership
204340522
Unavailable
23
MUFFLER SUPPORT - Call your local BRP dealership | With Catalyst
204340491
Unavailable
24
Fuel Tank Strap
293850093
$21.99
25
STRAP - Call your local BRP dealership
293850022
Unavailable
