- 230 Wake 510, 2011
10- Electrical System Battery & Dash Board

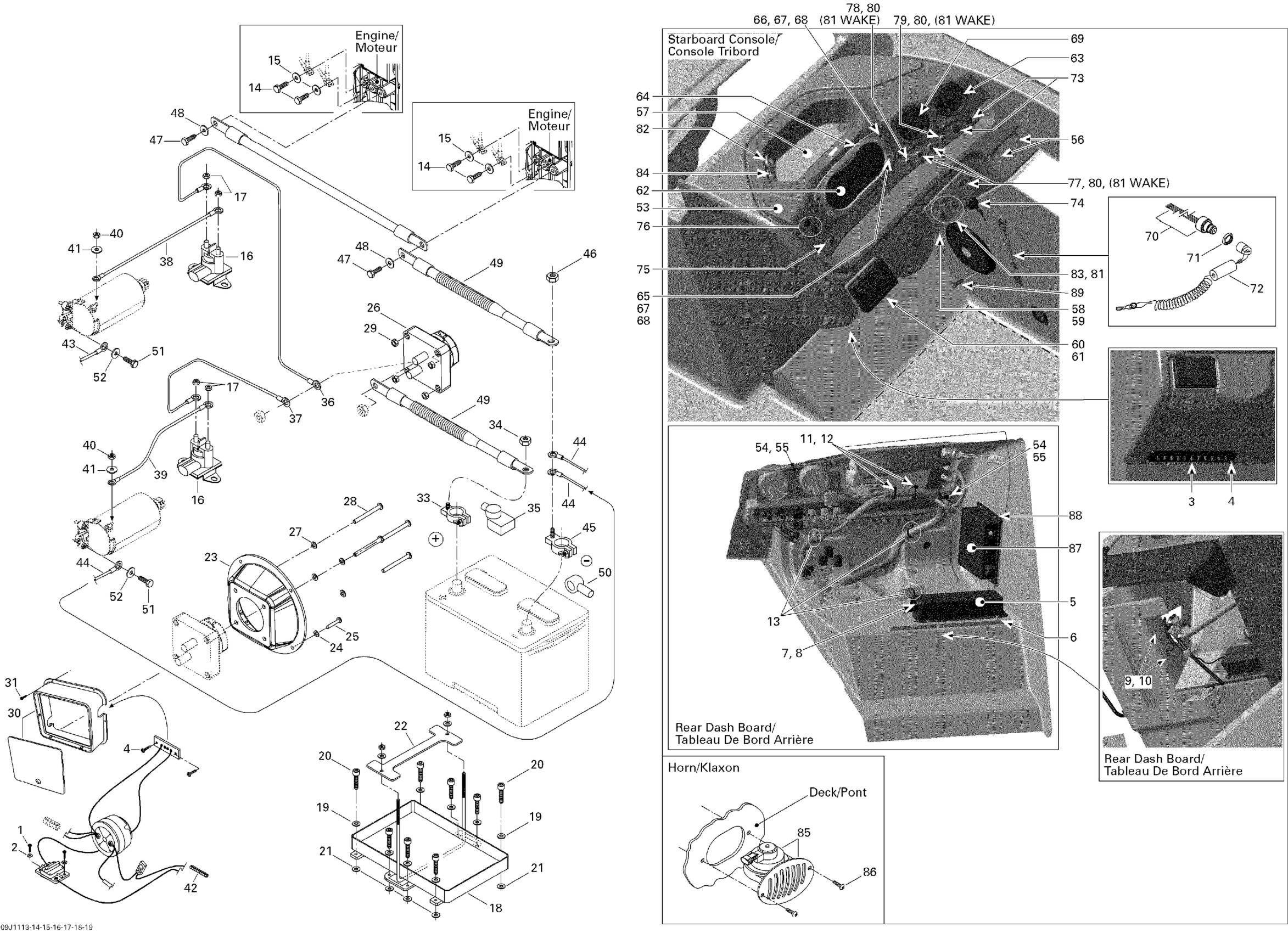

Sea-doo 230 Wake 510, 2011 10- Electrical System Battery & Dash Board Diagram
#
1
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
2
Flat Washer 4 mm, Stainless
234041600
$1.15
3
BREAKER CIRCUIT PANEL - Call your local BRP dealership
204471329
Unavailable
3
BREAKER CIRCUIT PANEL - Call your local BRP dealership | CE
278002535
Unavailable
4
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
5
Circuit Breaker Panel Cover
204471375
Unavailable
6
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
7
Hex. Nut
212100005
$1.35
8
Helical Lock Washer M5
234151601
$1.15
9
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
10
Flat Washer 4 mm, Stainless
234041600
$1.15
11
Mount Dart
293730040
$1.04
12
Tie-Rap 180 mm
414115200
$0.11
13
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
14
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
15
Stainless Flat Washer M6
234061600
$0.33
16
Starter Relay
278003012
$42.49
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
19
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
20
Socket Head Screw M6 X 25
205062560
$1.69
21
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
22
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
23
SWITCH SUPPORT - Call your local BRP dealership
204471341
Unavailable
24
Flat Washer 4 mm, Stainless
234041600
$1.15
25
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
26
BATTERY SWITCH - Call your local BRP dealership
204471339
Unavailable
27
Flat Washer M5, Stainless
234051600
$0.77
28
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
29
Hex. Nut M5
232051600
$1.15
30
BATTERY SWITCH COVER - Call your local BRP dealership
204471175
Unavailable
31
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
32
POSITIF SWITCH CABLE - Call your local BRP dealership
204471193
Unavailable
33
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
34
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
35
RED BOOT - Call your local BRP dealership
204470269
Unavailable
36
RED CABLE, PORT SIDE - Call your local BRP dealership
204471190
Unavailable
37
RED CABLE - Call your local BRP dealership
204471423
Unavailable
38
Red Cable
204471188
Unavailable
39
RED CABLE, STARBOARD - Call your local BRP dealership
204471187
Unavailable
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
Stainless Flat Washer M6
234061600
$0.33
42
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
43
GROUND CABLE - Call your local BRP dealership
204471191
Unavailable
44
GROUND CABLE - Call your local BRP dealership
204471192
Unavailable
45
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
46
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
47
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
48
Flat Washer M6, Stainless
234062600
$0.77
49
GROUND CABLE - Call your local BRP dealership
204470839
Unavailable
50
BOOT-BLACK - Call your local BRP dealership
278002575
Unavailable
51
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
52
Stainless Flat Washer M6
234061600
$0.33
53
FASCIA ASS'Y - Call your local BRP dealership
278002593
Unavailable
54
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
55
HEXAGONAL NUT 8-32 - Call your local BRP dealership
204100262
Unavailable
56
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
57
HELM STORAGE MAT - Call your local BRP dealership
278002618
Unavailable
58
RH PANEL SWITCH, WAKE - Call your local BRP dealership
278002615
Unavailable
59
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
60
STEREO PANEL - Call your local BRP dealership
278002546
Unavailable
61
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
62
CLUSTER-GAUGE - Call your local BRP dealership This part replaces 204471374.
204471539
Unavailable
63
FUEL/VOLT GAUGE - Call your local BRP dealership
278002424
Unavailable
64
GAUGE BEZEL - Call your local BRP dealership This part replaces 278002664.
278002433
Unavailable
65
Socket Head Screw M6 X 20
205062060
$2.32
66
Socket Head Screw M6 X 35
205063560
$2.22
67
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
68
Hex. Elastic Stop Nut M6
232561600
$1.15
69
SPEEDO GAUGE - Call your local BRP dealership
278002423
Unavailable
70
LANYARD SWITCH - Call your local BRP dealership
278002421
Unavailable
71
FLANGED NUT - Call your local BRP dealership
278002472
Unavailable
72
SAFETY LANYARD - Call your local BRP dealership
278002450
Unavailable
73
START SWITCH - Call your local BRP dealership
278002504
Unavailable
74
Ignition Switch With Key
710002323
$86.99
75
SWITCH - Call your local BRP dealership
278002422
Unavailable
76
Switch
278002446
Unavailable
77
SWITCH - Call your local BRP dealership
278002413
Unavailable
78
SWITCH - Call your local BRP dealership
278002414
Unavailable
79
SWITCH - Call your local BRP dealership
278002505
Unavailable
80
Not Available As Spare Parts
XXX
Unavailable
81
NUT SWITCH - Call your local BRP dealership
278002416
Unavailable
82
USB CONNECTOR - Call your local BRP dealership
278002417
Unavailable
83
TOGGLE SWITCH - Call your local BRP dealership
278002591
Unavailable
84
DC Outlet
710001248
$37.99
85
HORN - Call your local BRP dealership
204470801
Unavailable
86
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
87
Not Available As Spare Part - Friction Washer
Unavailable
88
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
89
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
