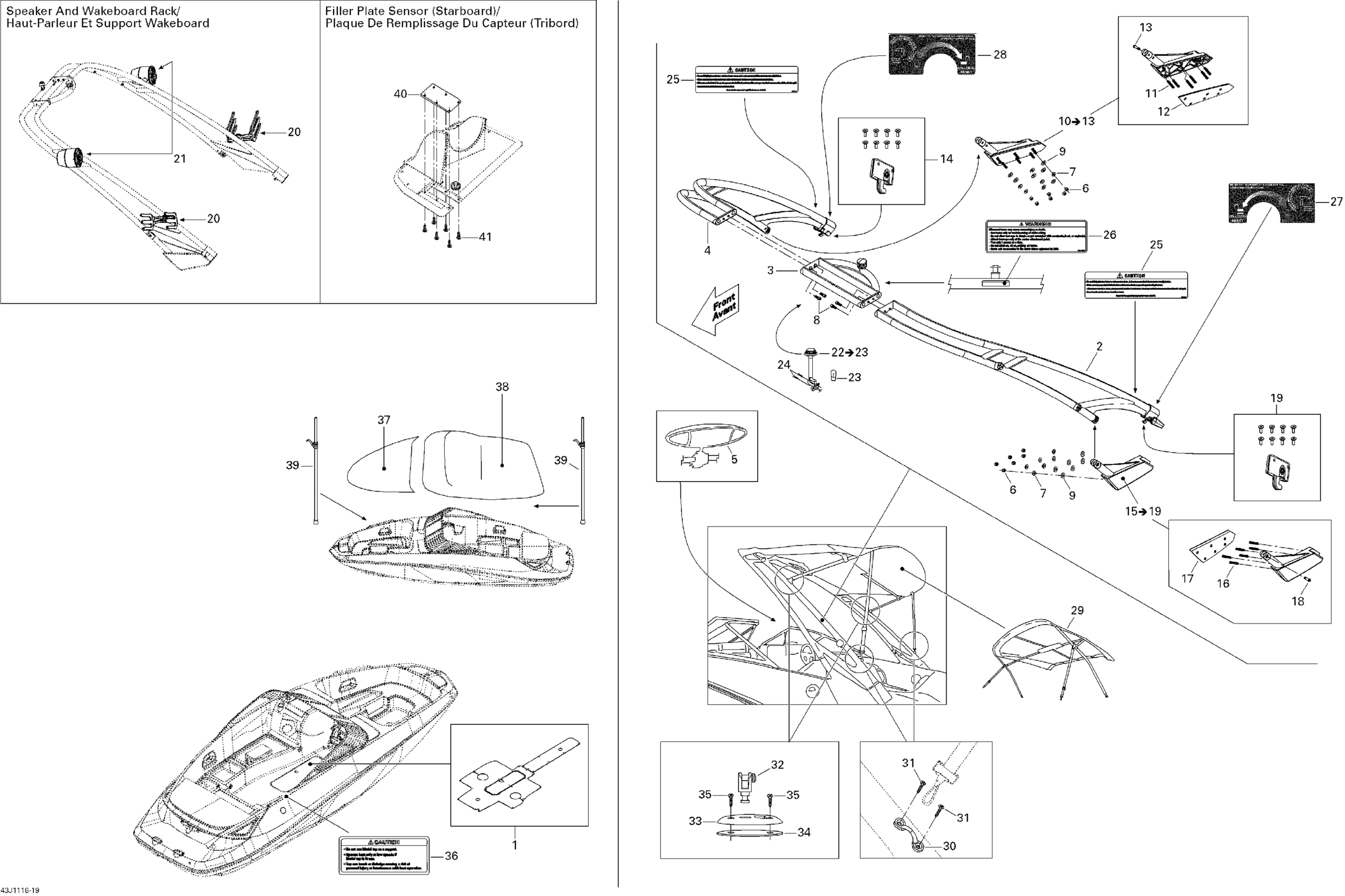

Sea-doo 230 Wake 510, 2011 09- Tower And Bimini Top Diagram
#
1
ANTI SLIP MAT - Call your local BRP dealership
204950203
Unavailable
2
TOWER SIDE PORT/BLK 210/230 W/NUBS - Call your local BRP dealership This part replaces 269800450.
269800545
Unavailable
3
TOWER HEADER BLACK 210/230 - Call your local BRP dealership This part replaces 269800244.
269800544
Unavailable
4
STARBOARD SIDE TOWER - Call your local BRP dealership
269800451
Unavailable
5
MIRROR - Call your local BRP dealership
269800236
Unavailable
6
HEX. NUT 1/2 X 13 - Call your local BRP dealership
269800421
Unavailable
7
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
8
SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership
269800197
Unavailable
9
TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership
269800344
Unavailable
10
RH TOWER SUPPORT - Call your local BRP dealership | With Tower
269800255
Unavailable
11
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
12
TOWER MOUNT GASKET - 230 - PORT - Call your local BRP dealership
269800440
Unavailable
13
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
14
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
15
LH TOWER SUPPORT - Call your local BRP dealership | With Tower
269800256
Unavailable
16
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
17
TOWER MOUNT GASKET - 230 - PORT - Call your local BRP dealership
269800440
Unavailable
18
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
19
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
20
WAKEBOARD RACK - Call your local BRP dealership
204072339
Unavailable
21
SPEAKER ASS. - Call your local BRP dealership
269800274
Unavailable
22
Stern Light
204471183
Unavailable
23
Bulb
204470053
Unavailable
24
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
25
CAUTION LABEL, TOWER - Call your local BRP dealership | With Tower
269800405
Unavailable
26
WARNING LABEL, TOWER - Call your local BRP dealership | With Tower
204902068
Unavailable
27
LABEL-TOWER/LEVER-PORT - Call your local BRP dealership | With Tower
219903499
Unavailable
28
LABEL-TOWER/LEVER-STBD. - Call your local BRP dealership | With Tower
219903500
Unavailable
29
Bimini Top
269800218
Unavailable
30
STRAP EYE, STAINLESS - Call your local BRP dealership
269800358
Unavailable
31
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
32
BIMINI POST - Call your local BRP dealership
204950033
Unavailable
33
BIMINI BASE - Call your local BRP dealership
204950034
Unavailable
34
BIMINI SPACER - Call your local BRP dealership
204950031
Unavailable
35
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
36
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
37
Bow Cover | Challenger SE
269800379
Unavailable
38
Cockpit Cover | With Tower
269800381
Unavailable
39
SUPPORT POLE COVER - Call your local BRP dealership
269800404
Unavailable
40
PLATE FILLER SENSOR - Call your local BRP dealership
204120341
Unavailable
41
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
