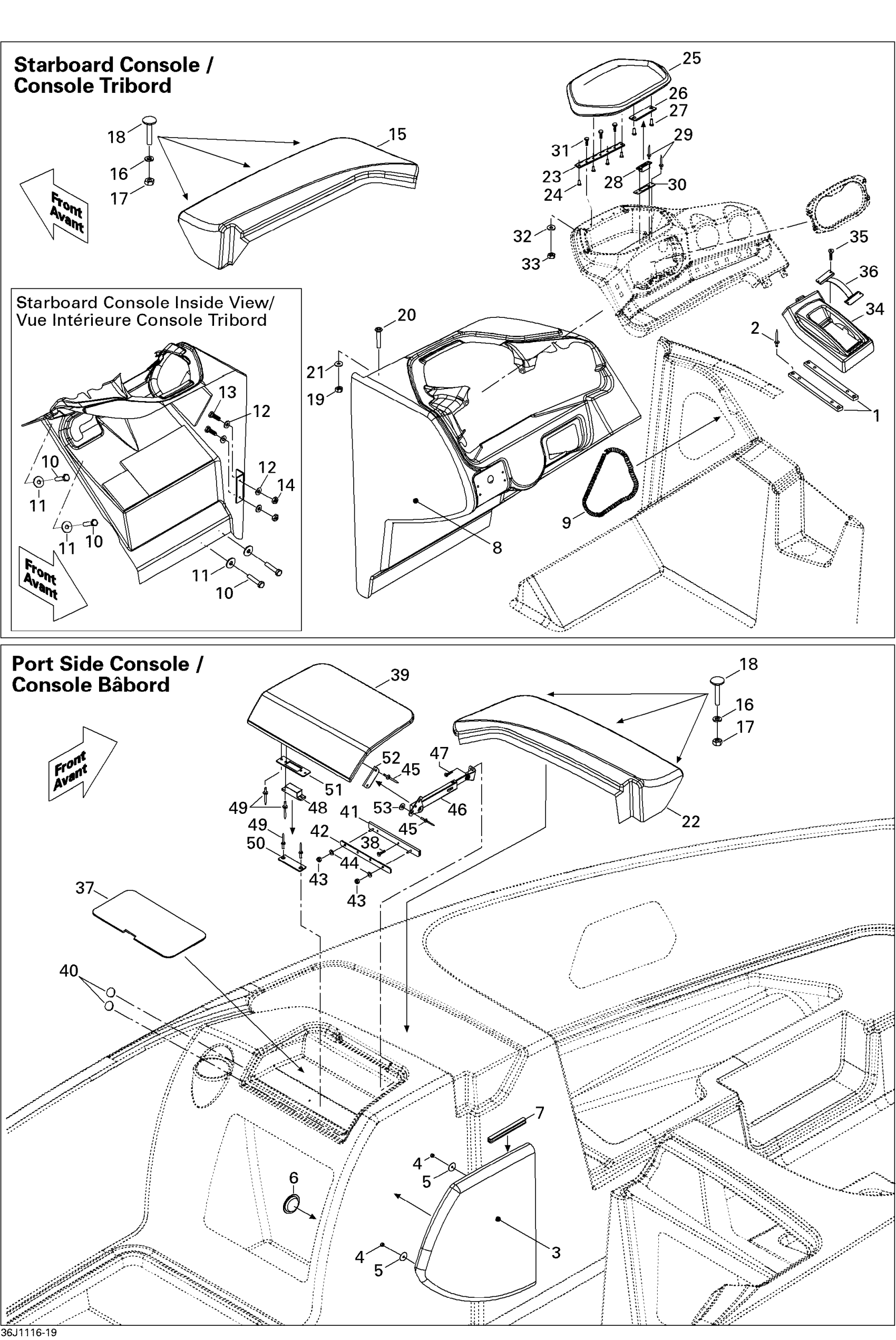

Sea-doo 230 Wake 510, 2011 Front Console And Glove Box Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

LATERAL FILLER PANEL - Call your local BRP dealership

291003356

Unavailable

4

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

5

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

6

BLACK CAP 1 1/2 - Call your local BRP dealership

204130190

Unavailable

7

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

8

CONSOLE ASS'Y, STARBOARD - Call your local BRP dealership

291003135

Unavailable

9

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

10

Hex. Screw M6 X 30

207163060

$1.48

11

Flat Washer M6, Stainless

234062600

$0.77

12

Stainless Flat Washer M6

234061600

$0.33

13

Hex. Screw M6 X 30

207163060

$1.48

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

CONSOLE CAP, STARBOARD - Call your local BRP dealership

291003155

Unavailable

16

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

17

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

18

Elevator Bolt

204000130

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

21

Flat Washer M6, Stainless

234062600

$0.77

22

CONSOLE CAP, PORT SIDE - Call your local BRP dealership

291003156

Unavailable

23

HINGE - Call your local BRP dealership

291003006

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

CONSOLE BROW - Call your local BRP dealership

291003181

Unavailable

26

LATCH BRACKET - Call your local BRP dealership

204072908

Unavailable

27

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

28

MAGNETIC CATCH - Call your local BRP dealership

204072907

Unavailable

29

Rivet 1/8”

293150057

Unavailable

30

LATCH SPACER - Call your local BRP dealership

204073168

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Flat Washer 5 mm, Stainless

234052600

$0.77

33

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

34

SHIFTER PANEL - Call your local BRP dealership

291003138

Unavailable

35

Phillips Screw M4 X 12

208641260

$1.03

36

SHIFTER PANEL INSERT - Call your local BRP dealership

291003310

Unavailable

37

MAT - Call your local BRP dealership

204073048

Unavailable

38

Socket Head Screw M4 X 16

205441660

$1.47

39

GLOVE BOXE UPPER COVER - Call your local BRP dealership

204073523

Unavailable

40

BUMPER - Call your local BRP dealership

204070940

Unavailable

41

HINGE, BLACK - Call your local BRP dealership

204073197

Unavailable

42

SPACER - Call your local BRP dealership

204130226

Unavailable

43

Elastic Stop Nut M4

232541600

$1.15

44

Flat Washer 4 mm, Stainless

234041600

$1.15

45

Pop RIvet 1/8 X ,375

293150285

$0.33

46

GLOVEBOX STAY - Call your local BRP dealership

204073220

Unavailable

47

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

48

MAGNETIC CATCH - Call your local BRP dealership

204072907

Unavailable

49

Pop RIvet 1/8 X ,375

293150285

$0.33

50

LATCH BRACKET - Call your local BRP dealership

204072908

Unavailable

51

LATCH SPACER - Call your local BRP dealership

204073168

Unavailable

52

GLOVEBOX STAY BRACKET - Call your local BRP dealership

204073309

Unavailable

53

Flat Washer M3, Stainless

234032600

$0.55
