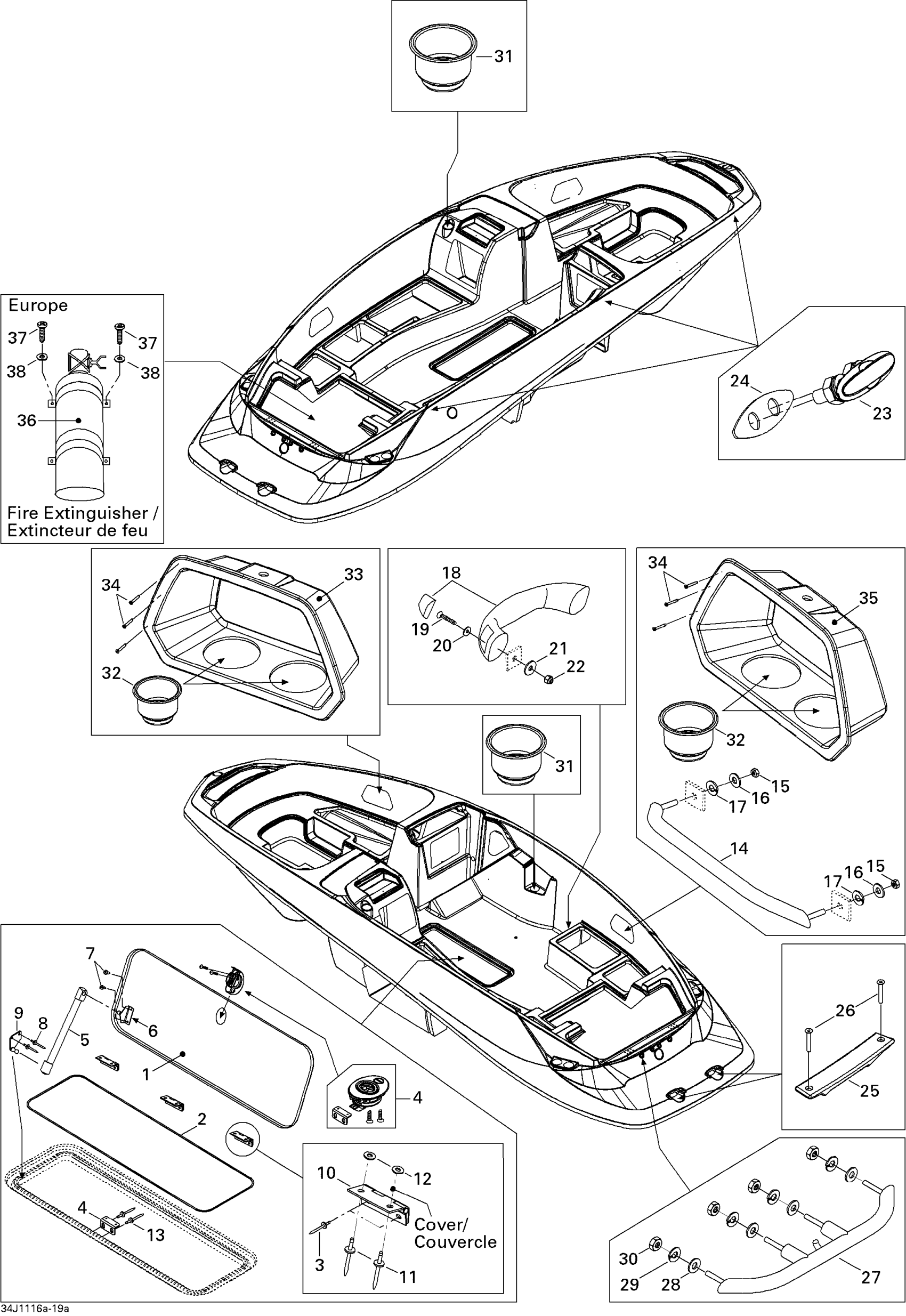

Sea-doo 230 Wake 510, 2011 09- Body And Accessories 1 Diagram
#
1
SKI LOCKER LID - Call your local BRP dealership
291003153
Unavailable
2
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
3
Avdel Rivet 3/16"
293150037
$0.56
4
Latch, Stainless Steel
204073230
$139.99
5
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
6
Shock Bracket
204073074
$27.99
7
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
8
Pop Rivet 3/16"
293150043
$2.09
9
RH SHOCK BRACKET - Call your local BRP dealership
204072219
Unavailable
10
HINGE - Call your local BRP dealership
204072601
Unavailable
11
Pop Rivet 3/16"
293150088
$0.99
12
Flat Washer M5, Stainless
234051600
$0.77
13
Pop Rivet 3/16"
293150039
$1.49
14
GRAB HANDLE 12'' - Call your local BRP dealership
262000103
Unavailable
15
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
16
Flat Washer 8 mm, Stainless
234082600
$2.43
17
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
18
GRIP HANDLE, BLACK - Call your local BRP dealership
204073190
Unavailable
19
Socket Screw M6 X 40
205464060
$2.22
20
Stainless Flat Washer M6
234061600
$0.33
21
Flat Washer 8 mm, Stainless
234082600
$2.43
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
PULL-UP CLEAT - Call your local BRP dealership
204073198
Unavailable
24
CLEAT BACKING PLATE - Call your local BRP dealership
204073199
Unavailable
25
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
26
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
27
SKI-TOW HANDLE - Call your local BRP dealership
204073442
Unavailable
28
Flat Washer 10 mm, Stainless
234002600
$2.22
29
Lock Washer 8 mm, Stainless
234181601
$0.55
30
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
31
CUP HOLDER - Call your local BRP dealership | SE & SP
204073519
Unavailable
32
CUP HOLDER - Call your local BRP dealership | SE & SP
204073519
Unavailable
33
BOX-COAMING ASSY - Call your local BRP dealership | STD
291003264
Unavailable
34
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
35
Coaming Box, Port Side
291003281
Unavailable
35
BOX-COAMING ASSY/STBD. - Call your local BRP dealership
291003283
Unavailable
36
FIRE EXTIGUISHER SYSTEM - Call your local BRP dealership | Europe
291003323
Unavailable
37
Hex. Screw M4 X 16 | Europe
207141660
$1.47
38
Flat Washer 4 mm, Stainless
234042600
$1.15
