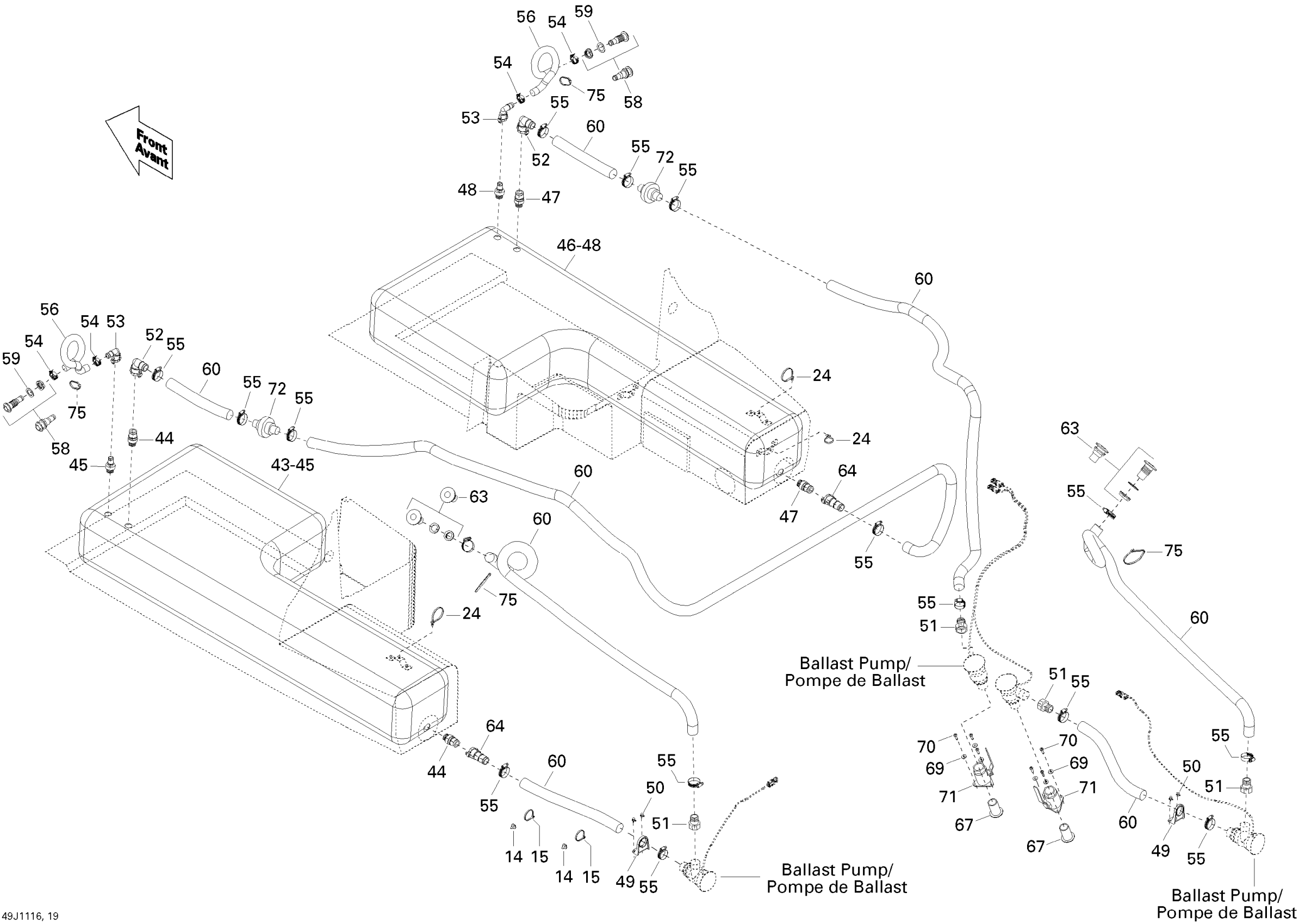

Sea-doo 230 Wake 510, 2011 09- Ballast System Diagram
#
Description
Price
14
Mount Dart
293730040
$1.04
15
Tie-Rap 180 mm
414115200
$0.11
24
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
43
BALLAST TANK ASS'Y, PORT - Call your local BRP dealership | Includes 43 to 45
204061375
Unavailable
44
VALVE FITTING 1 - Call your local BRP dealership
204130265
Unavailable
45
FITTING - Call your local BRP dealership
204130188
Unavailable
46
BALLAST TANK ASS'Y, STARBOARD - Call your local BRP dealership | Includes 46 to 48
204061376
Unavailable
47
VALVE FITTING 1 - Call your local BRP dealership
204130265
Unavailable
48
FITTING - Call your local BRP dealership
204130188
Unavailable
49
MOUNTING PUMP BRACKET - Call your local BRP dealership
204061378
Unavailable
50
RIVET - Call your local BRP dealership
293150065
Unavailable
51
PUMP FITTING - Call your local BRP dealership
204130266
Unavailable
52
ELBOW FITTING 1 - Call your local BRP dealership
204130267
Unavailable
53
ELBOW FITTING - Call your local BRP dealership
204130189
Unavailable
54
Tridon Clamp
293650016
$10.99
55
Tridon Gear Clamp
293650045
$5.69
56
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
58
Fitting
293710162
$13.49
59
GASKET - Call your local BRP dealership
293250254
Unavailable
60
BALLAST HOSE 1-1/8 - Call your local BRP dealership
204061377
Unavailable
63
THRUE HULL WITH SEAL - Call your local BRP dealership
204130423
Unavailable
64
STRAIGHT FITTING 1 - Call your local BRP dealership
204130268
Unavailable
67
HULL INSERT (BALLAST) - Call your local BRP dealership
262000130
Unavailable
69
Flat Washer M6, Stainless
234062600
$0.77
70
PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership
209662560
Unavailable
71
SEACOCK 1 NPT - Call your local BRP dealership This part replaces 262000129.
204940073
Unavailable
72
CHECK VALVE 1-1/8 - Call your local BRP dealership
262000088
Unavailable
75
Tie Wrap 368 mm
293750008
$1.04
