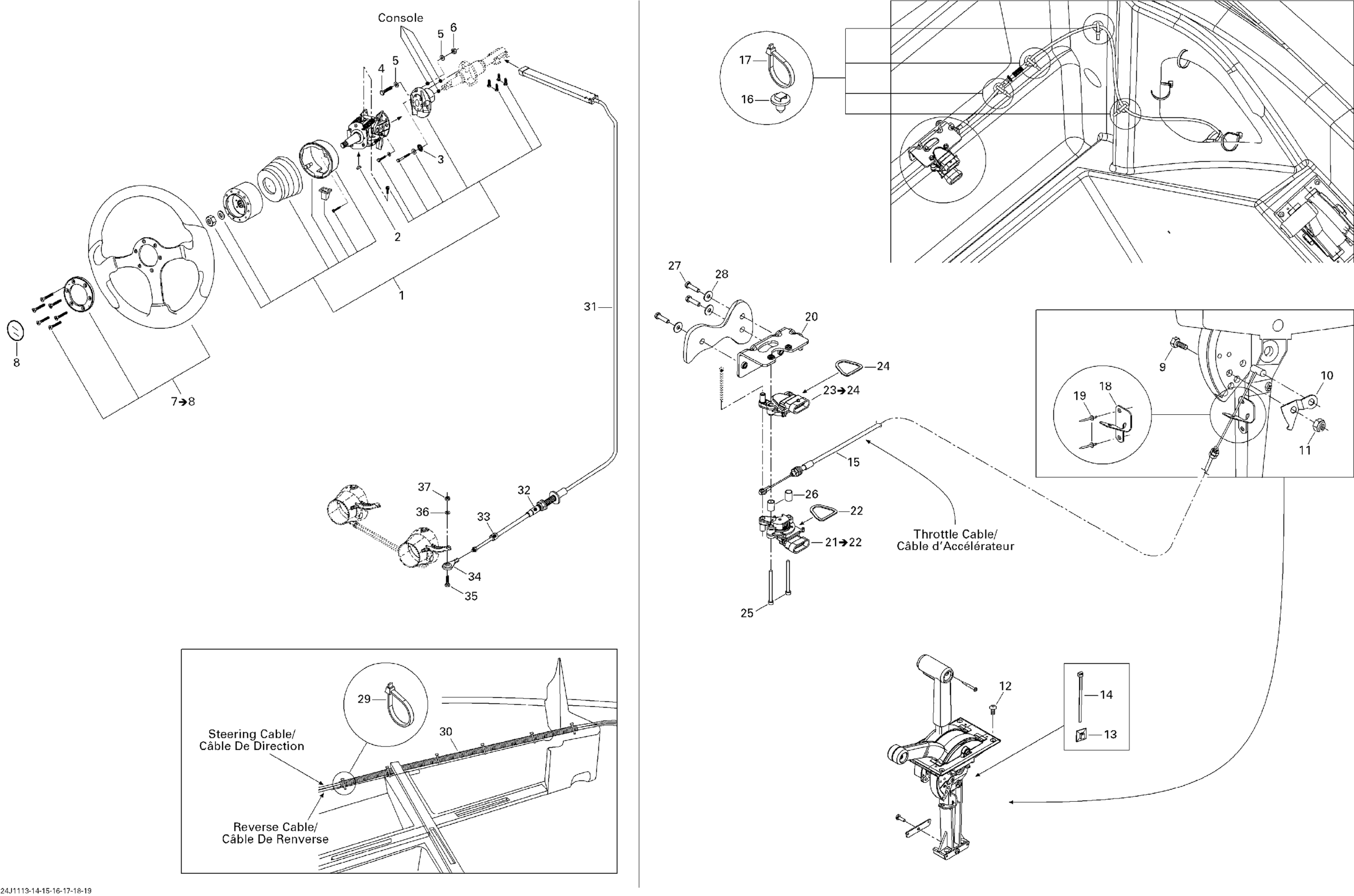

Sea-doo 230 Wake 510, 2011 Steering Diagram

#

Description
Price

1

HELM TILT ASS'Y - Call your local BRP dealership | Twin Engine Models

277001690

Unavailable

2

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

3

Serrated Lock Washer 8 mm

234481608

$1.06

4

Hex. Screw M6 X 40

207164060

$2.74

5

Stainless Flat Washer M6

234061600

$0.25

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Steering Wheel Ass'y | WAKE

204390554

Unavailable

8

CENTER CAP - Call your local BRP dealership | SE

204390549

Unavailable

9

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

10

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

11

Hex. Elastic Nut M5 | X

232551600

$0.91

12

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

13

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

14

Tie Wrap 94 mm | 4X4

293750001

$0.83

15

THROTTLE CABLE - Call your local BRP dealership

277001780

Unavailable

16

Mount Dart

293730040

$0.86

17

Tie Wrap 142 mm

293750002

$0.88

18

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

19

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

20

SENSOR BRACKET - Call your local BRP dealership

277001694

Unavailable

21

RH THROTTLE SENSOR - Call your local BRP dealership | Twin Engine Models

277001726

Unavailable

22

O-Ring

270000544

$4.27

23

SENSOR_POSITION THROTTLE - Call your local BRP dealership

277001727

Unavailable

24

O-Ring

270000544

$4.27

25

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

26

Spacer

278000644

Unavailable

27

Hex. Screw M5 X 20

207152060

$1.22

28

Flat Washer 5 mm, Stainless

234052600

$0.64

29

Tie Wrap 142 mm

293750002

$0.88

30

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

31

STEERING CABLE - Call your local BRP dealership

277001866

Unavailable

32

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

33

Terminal Wiper

277000441

Unavailable

34

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

35

Hex. Screw M6 X 35

207063560

$1.85

36

Stainless Flat Washer M6

234061600

$0.25

37

Hex. Elastic Stop Nut M6

232561600

$0.92
