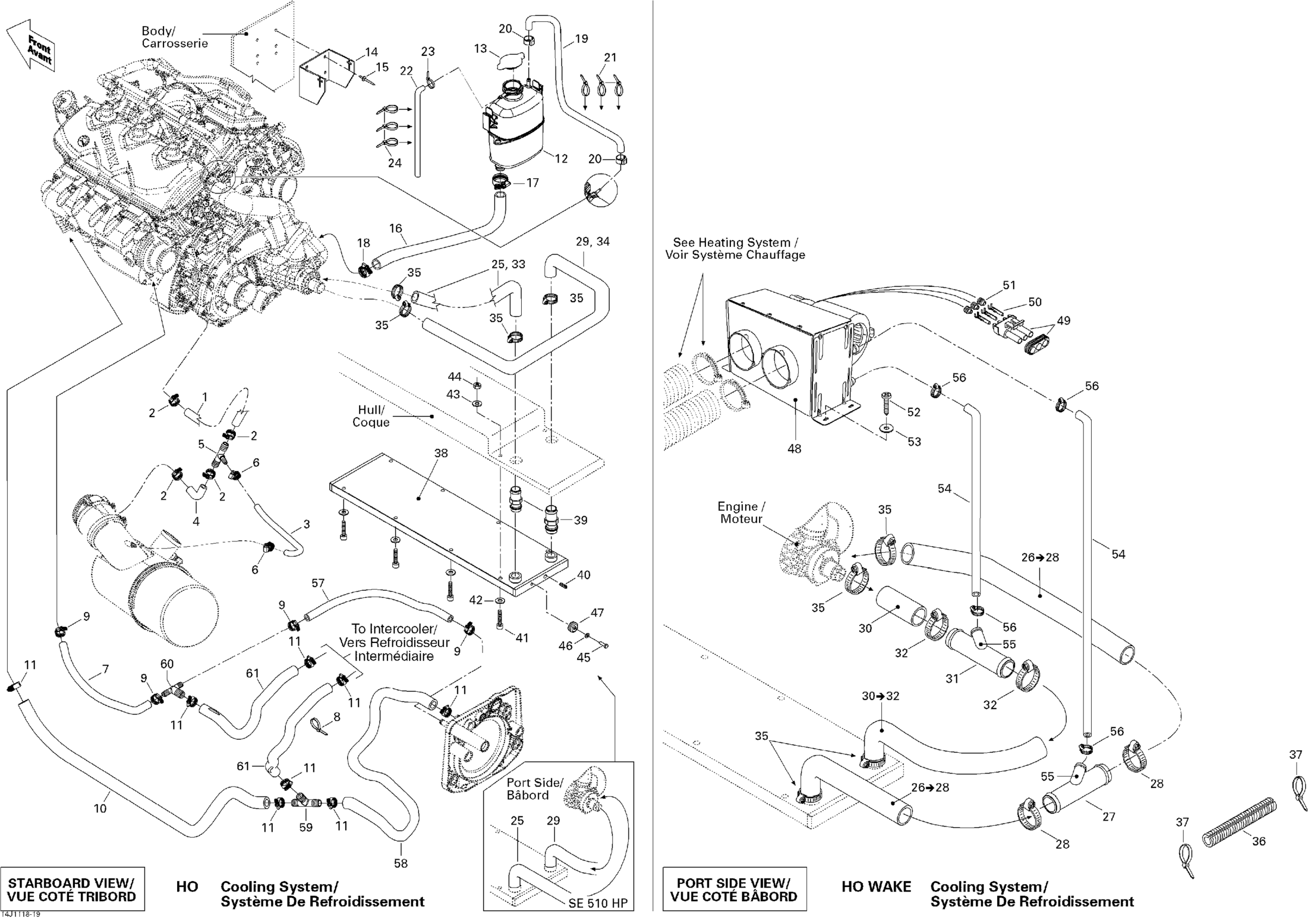

Sea-doo 230 Wake 510, 2011 01- Cooling System Diagram
#
1
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
2
Tridon Gear Clamp
293650172
$3.09
3
Formed Hose | Without Catalyst
276000246
$19.49
4
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
5
T-Fitting
293710116
$17.62
6
Tridon Gear Clamp
293650171
$3.09
7
Was 276000001 Hose 12.5 mm
219704394
$51.99
8
Tie Wrap 368 mm
293750008
$1.04
9
Tridon Gear Clamp
293650172
$3.09
10
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
11
Tridon Gear Clamp
293650051
$4.19
12
Coolant Tank
276000086
$109.99
13
Pressure Cap | Includes 720 to 720a
276000100
$25.99
14
COOLANT TANK BRACKET - Call your local BRP dealership
276000288
Unavailable
15
Pop Rivet 3/16"
204000081
$1.49
16
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
17
Tridon Gear Clamp
293650051
$4.19
18
Tridon Gear Clamp
293650019
$5.82
19
Was 275500549 Hose 1/4"
219704357
$194.99
20
Oetiker Gear Clamp
293650025
$3.09
21
Tie Wrap 142 mm
293750002
$1.25
22
Polyurethane Hose 10000Mm Long
219704410
$56.99
23
Tie Wrap 94 mm | 4X4
293750001
$1.03
24
Tie Wrap 142 mm
293750002
$1.25
25
Not Available As Spare Parts
XXX
Unavailable
26
HOSE-ASSY B - Call your local BRP dealership
276000284
Unavailable
27
Y-Fitting | WAKE
204130174
Unavailable
28
Tridon Gear Clamp
293650045
$5.69
29
Not Available As Spare Parts
XXX
Unavailable
30
HOSE-ASSY A - Call your local BRP dealership
276000285
Unavailable
31
Y-Fitting | WAKE
204130174
Unavailable
32
Tridon Gear Clamp
293650045
$5.69
33
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
34
Starboard Formed Hose - Call your local BRP dealership
204300174
Unavailable
35
Tridon Gear Clamp
293650045
$5.69
36
SPLIT CONDUIT - Call your local BRP dealership
204130408
Unavailable
37
Tie-Rap 180 mm
414115200
$0.11
38
HEAT EXCHANGER - Call your local BRP dealership
204300255
Unavailable
39
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
40
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
41
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
42
Flat Washer 10 mm, Stainless
234000600
$1.46
43
Flat Washer 10 mm, Stainless
234002600
$2.22
44
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
45
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
46
Stainless Flat Washer M6
234061600
$0.33
47
Anode Zinc
271001813
$18.99
48
HEATER UNIT - Call your local BRP dealership | WAKE
204300198
Unavailable
49
Male Housing, 3 Circuits
278000273
$9.59
50
Female Terminal
278000223
$3.19
51
Wire Seal
278000218
$4.39
52
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
53
Flat Washer 5 mm, Stainless
234052600
$0.77
54
HOSE 16 MM - Call your local BRP dealership | WAKE
204300204
Unavailable
55
RUBBER HOSE, PORT - Call your local BRP dealership
204061380
Unavailable
56
Tridon Gear Clamp
293650019
$5.82
57
Was 276000001 Hose 12.5 mm
219704394
$51.99
58
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
59
T-Fitting
293710131
$15.87
60
T-Fitting
293710132
$12.65
61
FORMED HOSE - Call your local BRP dealership
276000242
Unavailable
