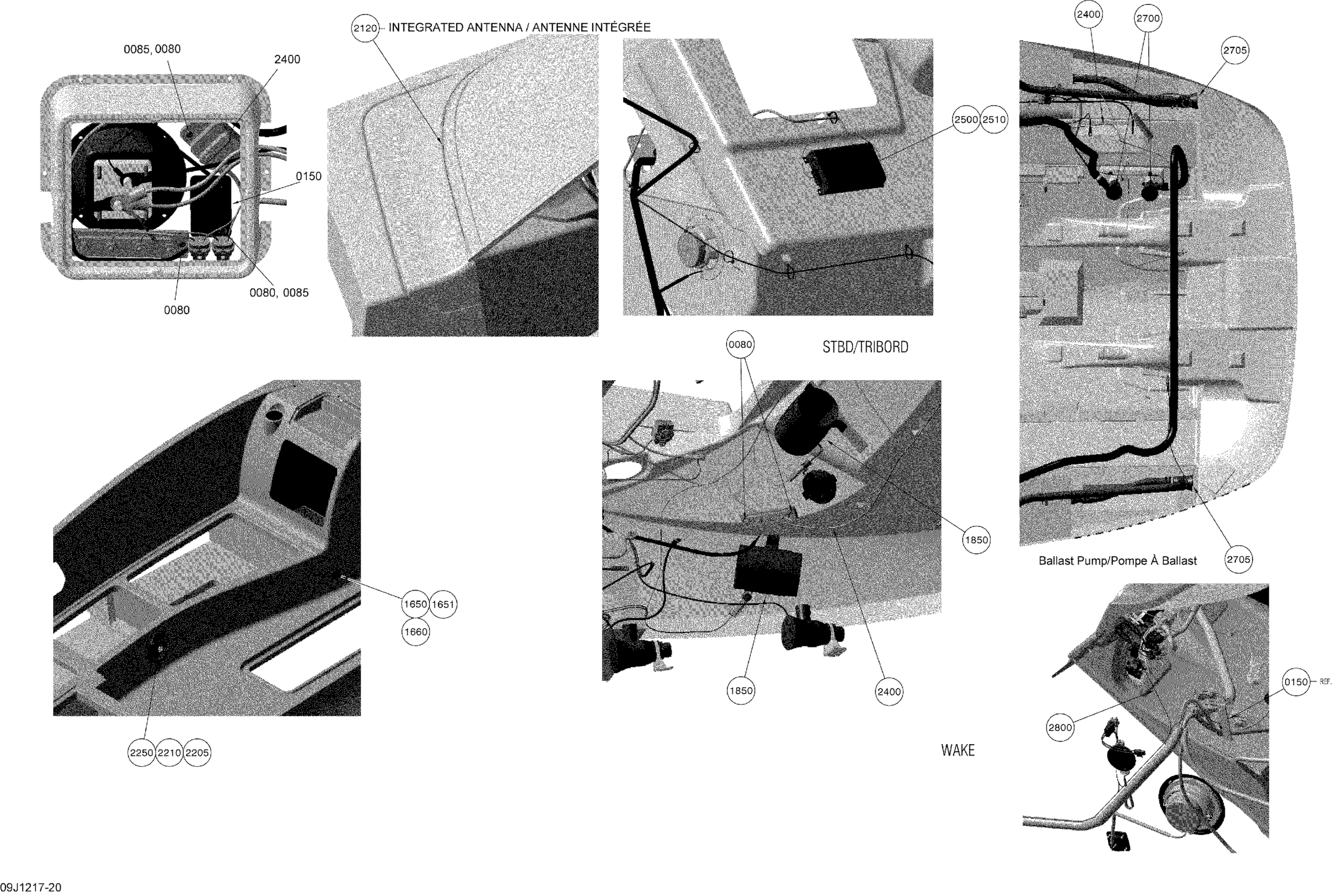

Sea-doo 230 Wake 430, 2012 Electrical System Ballast Pump Diagram

#

Description
Price

80

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

85

Flat Washer 4 mm, Stainless

234041600

$1.15

150

HARNESS ACCESSORY ASS'Y - Call your local BRP dealership

278002536

Unavailable

1650

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

1651

BULB - Call your local BRP dealership

204470081

Unavailable

1660

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

1850

Fan Ass'y | Includes 44 to 47

204470108

$144.99

2120

STEREO ANTENNA - Call your local BRP dealership

204471215

Unavailable

2205

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

2210

Speaker Cover | 180 Challenger

204471226

Unavailable

2250

SPEAKER SET, SILVER - Call your local BRP dealership | SE

204471317

Unavailable

2400

ACCESSORIES HARNESS, WAKE - Call your local BRP dealership

278002723

Unavailable

2500

SPEAKER AMPLIFIER - Call your local BRP dealership | WAKE

204471416

Unavailable

2510

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

2700

Ballast Pump | WAKE

278002517

Unavailable

2705

Ballast Pump | WAKE

204471407

Unavailable

2800

FIRE EXTINGUISHER HARNESS - Call your local BRP dealership | CE

278002881

Unavailable
