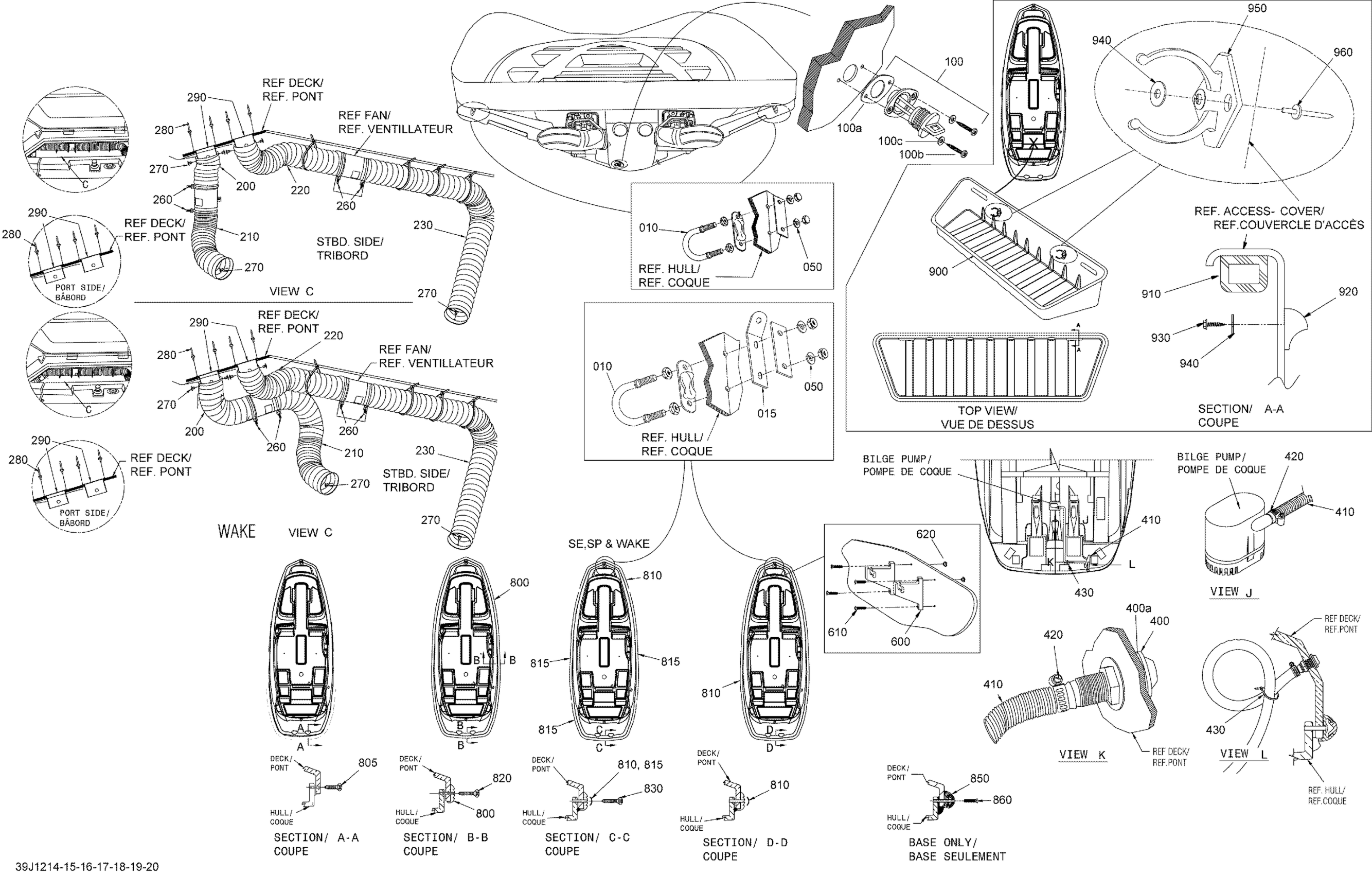

Sea-doo 230 Wake 430, 2012 Hull Diagram

#

Description
Price

10

BOW EYE KIT 1/2? - Call your local BRP dealership

204050336

Unavailable

15

BRACKET-TIE DOWN - Call your local BRP dealership

204050722

Unavailable

50

WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership

204100048

Unavailable

100

Drain Plug

292000187

$14.49

100a

GASKET - Call your local BRP dealership

293250030

Unavailable

100b

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

100c

Flat Washer 4 mm, Stainless

234041600

$1.15

200

Was 204050122 Vent Hose 4"

219704358

$25.99

210

Was 204050122 Vent Hose 4"

219704358

$25.99

220

Was 204050122 Vent Hose 4"

219704358

$25.99

230

Was 204050122 Vent Hose 4"

219704358

$25.99

260

Tie Rap, 533 mm

293750047

$2.09

270

Black, Dart

293730006

$0.99

280

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

290

Vent Grille 4 - Call your local BRP dealership

204050637

Unavailable

400

Fitting

293710162

$13.49

400a

Gasket

292001486

$6.60

410

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

420

Tridon Clamp

293650016

$10.99

430

Tie-Rap 180 mm

414115200

$0.11

600

ANCHOR BRACKET - Call your local BRP dealership

204050723

Unavailable

610

PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership

204100201

Unavailable

620

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

800

BUMPER TRIM, BLACK - Call your local BRP dealership | Challenger 310 SE

262000201

Unavailable

805

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

810

BUMPER TRIM, INOX. - Call your local BRP dealership | Challenger 310 SE

204050769

Unavailable

815

BUMPER TRIM, INOX. - Call your local BRP dealership | Chalenger SE

204050767

Unavailable

820

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

830

PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership | Chalenger SE

250000395

Unavailable

850

Not Available As Spare Parts

XXX

Unavailable

860

Not Available As Spare Parts

XXX

Unavailable

900

ACCESS COVER 230 - Call your local BRP dealership

292001385

Unavailable

910

Seal Tray 1000Mm Long

219704368

$13.99

920

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

930

Hex. Flange Screw K40 X 16

241141660

$1.48

940

Not Available As Spare Parts

XXX

Unavailable

950

Not Available As Spare Parts

XXX

Unavailable

960

Not Available As Spare Parts

XXX

Unavailable
