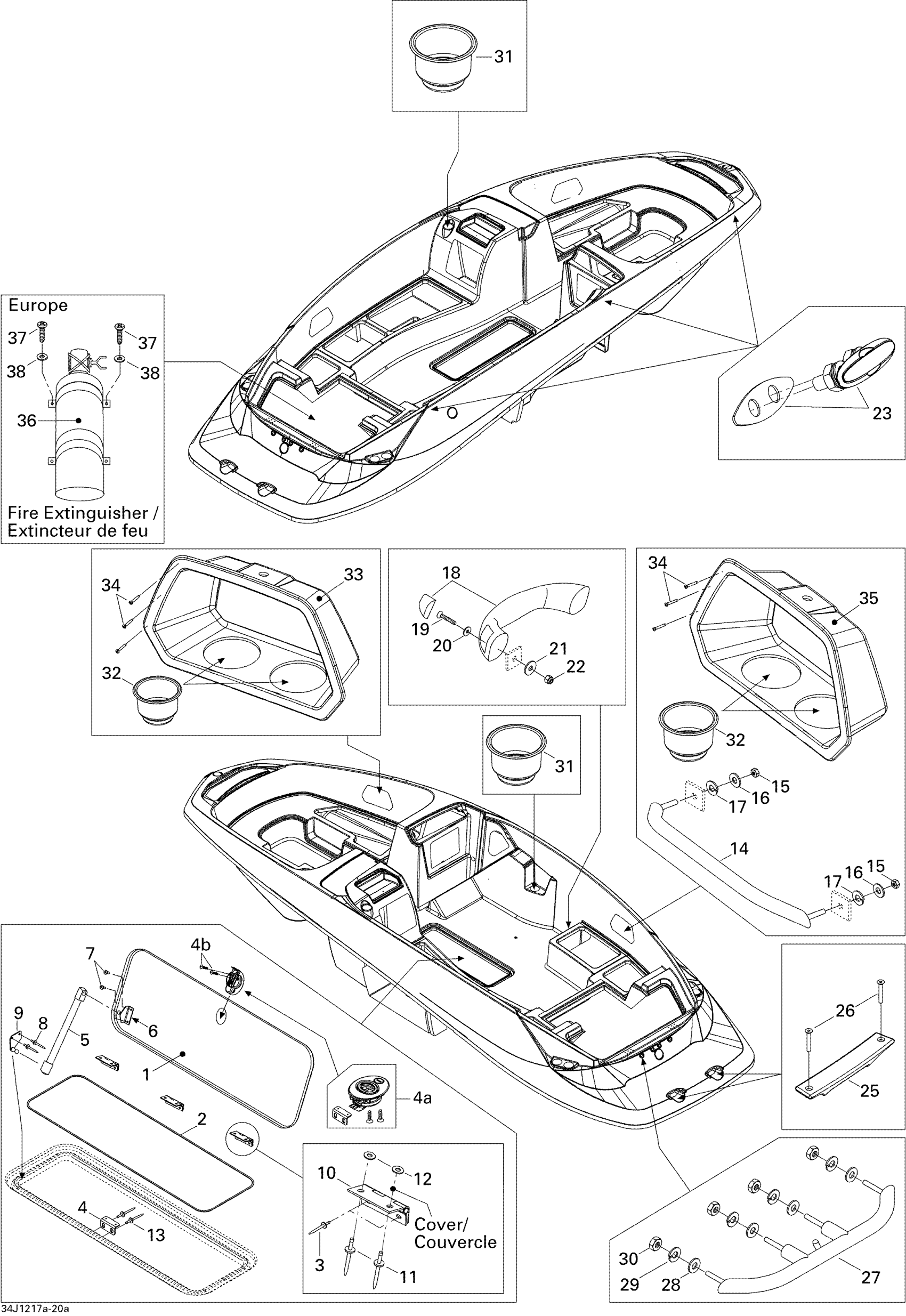

Sea-doo 230 Wake 430, 2012 Body And Accessories 1 Diagram

#

Description
Price

1

SKI LOCKER LID - Call your local BRP dealership

291003660

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

Avdel Rivet 3/16"

293150037

$0.56

4a

Latch, Stainless Steel

291003415

Unavailable

4b

Phillips Screw M5 X 25

208652560

$3.39

5

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

6

Shock Bracket

204073074

$27.99

7

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

8

Pop Rivet 3/16"

293150043

$2.09

9

RH SHOCK BRACKET - Call your local BRP dealership

204072219

Unavailable

10

HINGE - Call your local BRP dealership

204072601

Unavailable

11

Pop Rivet 3/16"

293150088

$0.99

12

Flat Washer M5, Stainless

234051600

$0.77

13

Pop Rivet 3/16"

293150039

$1.49

14

GRAB HANDLE ASS. - Call your local BRP dealership

204073792

Unavailable

15

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

18

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

19

Socket Screw M6 X 40

205464060

$2.22

20

Stainless Flat Washer M6

234061600

$0.33

21

Flat Washer 8 mm, Stainless

234082600

$2.43

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

PULL-UP CLEAT - Call your local BRP dealership | SE

262000154

Unavailable

25

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

26

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

27

SKI-TOW HANDLE - Call your local BRP dealership

204073442

Unavailable

28

Flat Washer 10 mm, Stainless

234002600

$2.22

29

Lock Washer 8 mm, Stainless

234181601

$0.55

30

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

31

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

32

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

33

BOX-COAMING ASSY - Call your local BRP dealership | STD

291003681

Unavailable

34

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

35

Coaming Box, Port Side | SE

291003683

Unavailable

35

Coaming Box, Starboard | SE

291003684

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable
