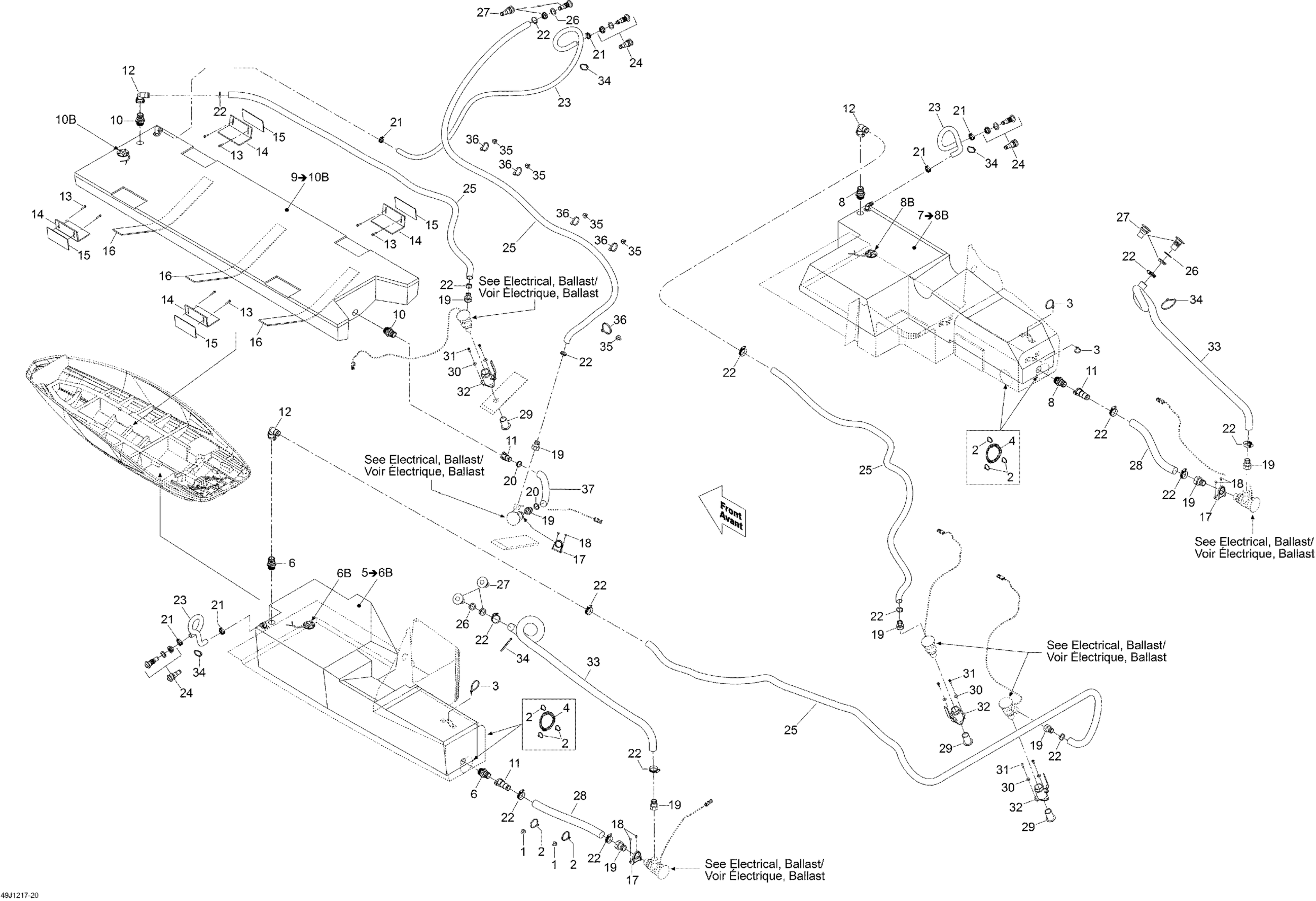

Sea-doo 230 Wake 430, 2012 09- Ballast System Diagram
#
1
Mount Dart
293730040
$1.04
2
Tie-Rap 180 mm
414115200
$0.11
3
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
4
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
5
BALLAST ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 5 to 6B
262000211
Unavailable
6
QUICK-LOCK ADAPTER 1-1/8 - Call your local BRP dealership
204940070
Unavailable
6B
WATER SENSOR - Call your local BRP dealership
204061408
Unavailable
7
BALLAST ASS'Y, STARBOARD - Call your local BRP dealership | Includes 7 to 8B
262000213
Unavailable
8
QUICK-LOCK ADAPTER 1-1/8 - Call your local BRP dealership
204940070
Unavailable
8B
WATER SENSOR - Call your local BRP dealership
204061408
Unavailable
9
BALLAST ASS'Y, CENTER - Call your local BRP dealership | Includes 9 to 10B
262000215
Unavailable
10
QUICK-LOCK ADAPTER 1-1/8 - Call your local BRP dealership
204940070
Unavailable
10B
Water Sensor
204061407
Unavailable
11
QUICK-LOCK SOCKET 1-1/8 - Call your local BRP dealership
204940071
Unavailable
12
QUICK-LOCK SOCKET 1-1/8, 90 - Call your local BRP dealership
204940072
Unavailable
13
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
14
BALLAST TANK BRACKET - Call your local BRP dealership
204061427
Unavailable
15
NEOPRENE PAD - Call your local BRP dealership
204560191
Unavailable
16
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
17
MOUNTING PUMP BRACKET - Call your local BRP dealership
204061378
Unavailable
18
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership
204100126
Unavailable
19
PUMP FITTING - Call your local BRP dealership
204130266
Unavailable
20
Tridon Gear Clamp
293650045
$5.69
21
Tridon Clamp
293650016
$10.99
22
Tridon Gear Clamp
293650045
$5.69
23
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
24
Thru Hull Fitting 3/4"
262000074
Unavailable
25
BALLAST HOSE 1-1/8 - Call your local BRP dealership
204061377
Unavailable
26
THRUE HULL WITH SEAL - Call your local BRP dealership
204130423
Unavailable
27
THRU HULL FITTING 1-1/8 - Call your local BRP dealership
262000075
Unavailable
28
BALLAST HOSE 1-1/8 - Call your local BRP dealership
204061377
Unavailable
29
HULL INSERT (BALLAST) - Call your local BRP dealership
262000130
Unavailable
30
Flat Washer M6, Stainless
234062600
$0.77
31
PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership
209662560
Unavailable
32
SEACOCK 1 NPT - Call your local BRP dealership This part replaces 262000129.
204940073
Unavailable
33
BALLAST HOSE 1-1/8 - Call your local BRP dealership
204061377
Unavailable
34
Tie Wrap 368 mm
293750008
$1.04
35
Mount Dart
293730040
$1.04
36
Tie Wrap 368 mm
293750008
$1.04
37
BILGEFLEX HOSE - Call your local BRP dealership
292800135
Unavailable
