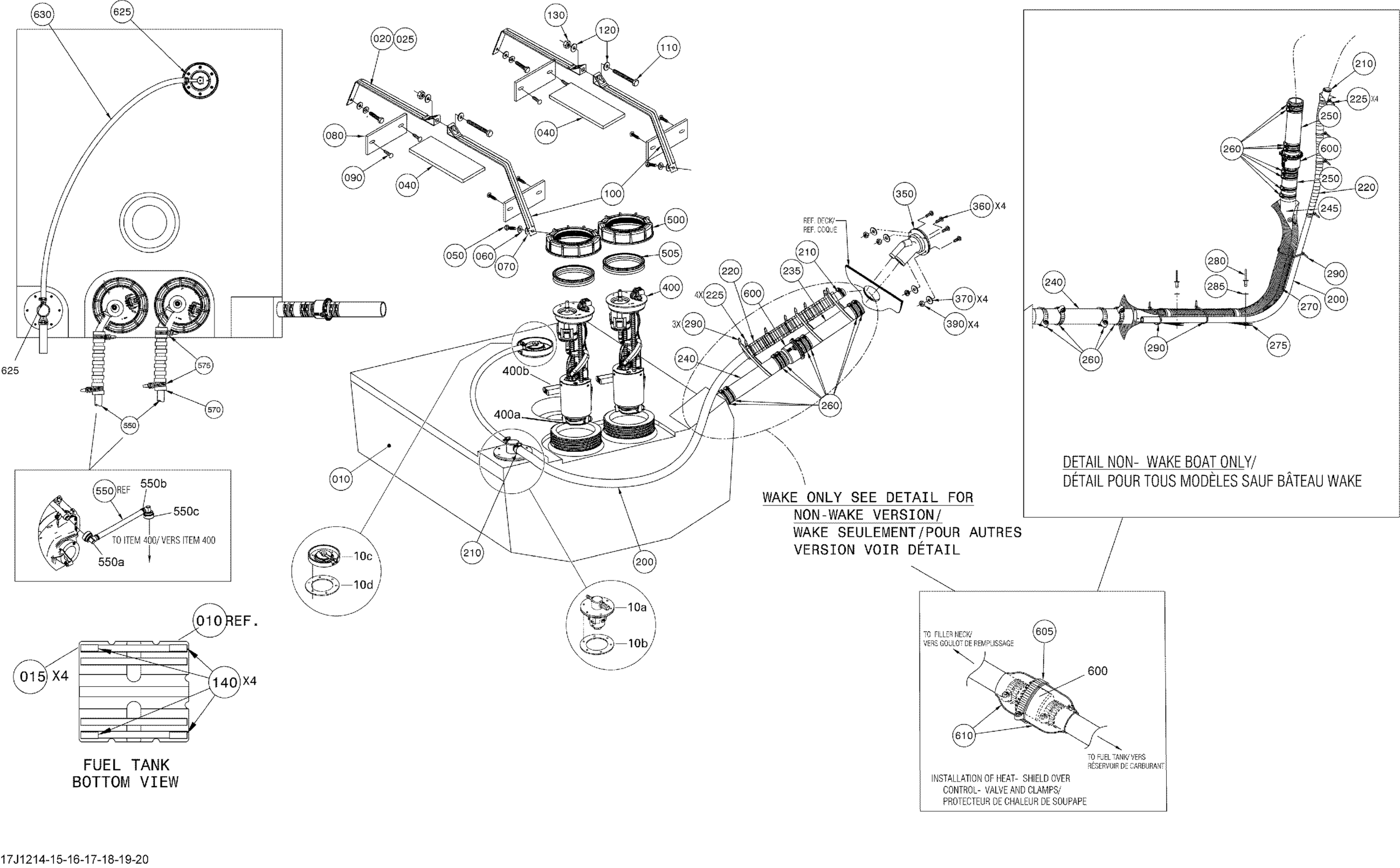

Sea-doo 230 Wake 430, 2012 Fuel System Diagram

#

Description
Price

10

FUEL TANK 51 GAL - C/U - Call your local BRP dealership | Includes 10 to 10d This part replaces 275500860.

204560467

Unavailable

10a

Fuel Limit Vent Valve

275500863

Unavailable

10b

Gasket

204560439

Unavailable

10c

Fuel Grade Valve

275500838

Unavailable

10d

Gasket

204560440

Unavailable

15

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

20

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

25

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

40

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

50

Hex. Screw M8 X 30

207183060

$1.58

60

Lock Washer 8 mm, Stainless

234181601

$0.55

70

Flat Washer 8 mm, Stainless

234082600

$2.43

80

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

90

Black, Dart

293730006

$0.99

100

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

110

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

120

Flat Washer 8 mm, Stainless

234082600

$2.43

130

Hex. Elastic Nut M8

232581600

$1.48

140

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

200

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

210

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

220

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

225

Tie-Rap 180 mm

414115200

$0.11

235

FILLER NECK HOSE - Call your local BRP dealership

204560451

Unavailable

240

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

245

Not Available As Spare Parts

XXX

Unavailable

250

Not Available As Spare Parts

XXX

Unavailable

260

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

270

Not Available As Spare Parts

XXX

Unavailable

275

Not Available As Spare Parts

XXX

Unavailable

280

Not Available As Spare Parts

XXX

Unavailable

285

Not Available As Spare Parts

XXX

Unavailable

290

Tie Wrap 368 mm

293750008

$1.04

350

FILLER NECK ASS'Y - Call your local BRP dealership

204560453

Unavailable

360

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

370

Flat Washer 4 mm

234040600

$0.55

390

Elastic Stop Nut M4

232541600

$1.15

400

Fuel Pump Ass'y

275500734

$439.99

400a

Fuel Filter

270600113

$33.99

400b

Sensor Lever

275500780

$224.99

500

SPECIAL NUT M150 - Call your local BRP dealership

204100257

Unavailable

505

Gasket

293250173

$18.49

550

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

550a

Quick Attach 90°

275500700

$16.49

550b

Norma Clamp

293650084

$4.12

550c

Elbow Fitting 90°

293710105

$14.22

570

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

575

Tie Wrap 142 mm

293750002

$1.25

600

FILLER HOSE INLET CONTROL VALVE - Call your local BRP dealership

275500836

Unavailable

605

Tridon Clamp

293650179

$11.49

610

HEAT SHIELD - Call your local BRP dealership

204560444

Unavailable

625

Norma Clamp

293650084

$4.12

630

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable
