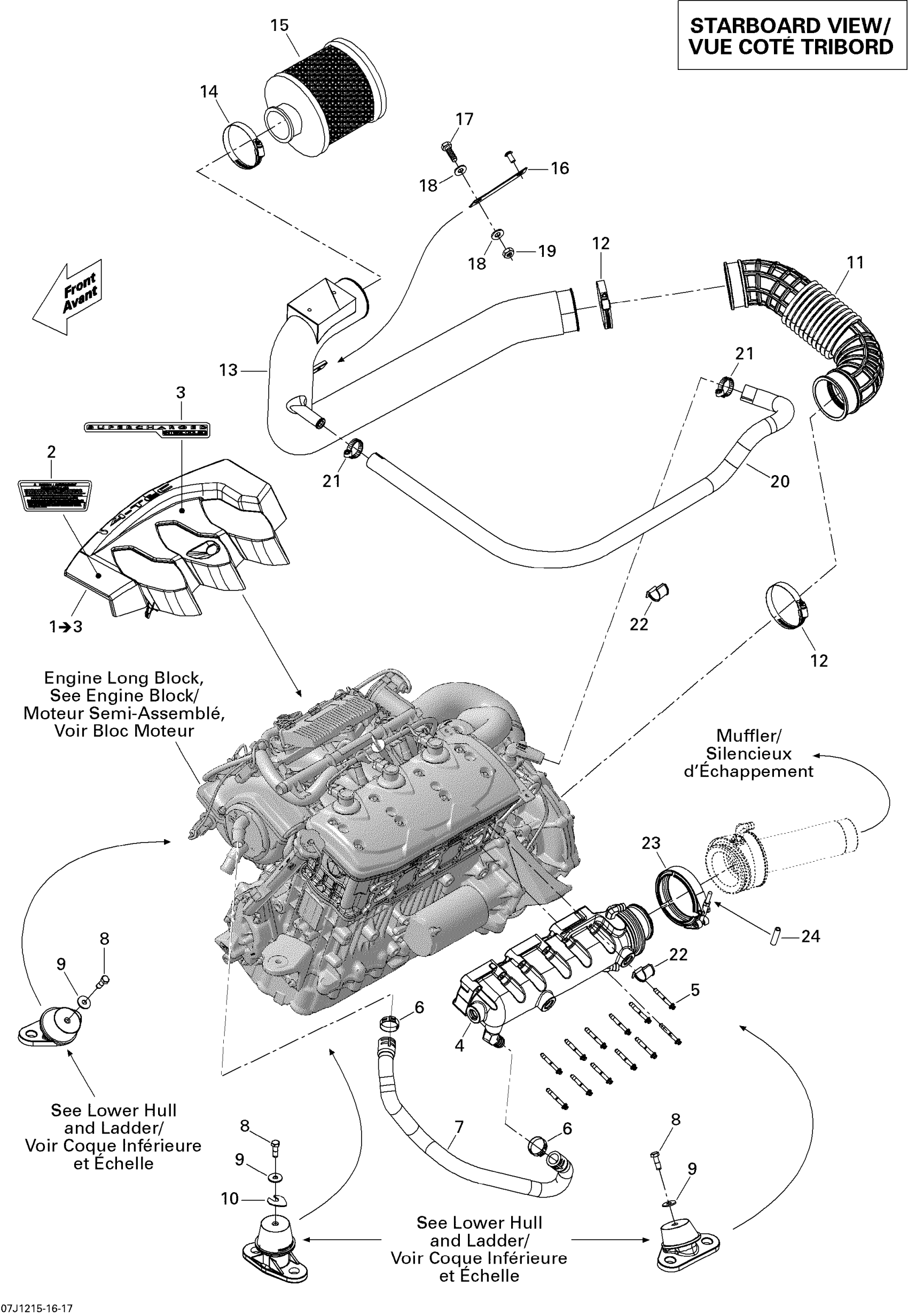

Sea-doo 230 Wake 430, 2012 01- Engine And Air Intake Silencer Diagram
#
Description
Price
1
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
2
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
3
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership
219902676
Unavailable
4
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
5
Torx Flange Screw M6 X 45
420641198
$4.12
6
Crimp Clamp
293650217
$8.47
7
FORMED HOSE - Call your local BRP dealership
420822173
Unavailable
8
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
9
Flat Washer 8 mm, Stainless
234082600
$2.43
10
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
11
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
12
Tridon Clamp
293650179
$11.49
13
AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst
204250437
Unavailable
14
Tridon Clamp
293650179
$11.49
15
Air Filter This part replaces 204250436.
204250466
$137.99
16
BRACKET - Call your local BRP dealership | Without Catalyst
204250404
Unavailable
17
Hex. Screw M6 X 30
207163060
$1.48
18
Flat Washer, Stainless/Neoprene
211200055
$0.73
19
Hex. Elastic Stop Nut M6
232561600
$1.15
20
FORMED HOSE - Call your local BRP dealership
270000808
Unavailable
21
Tridon Gear Clamp
293650051
$4.19
22
Retainer
275500664
$14.75
23
Exhaust Clamp
274001417
$58.99
24
Polyurethane Hose 10000Mm Long
219704410
$56.99
