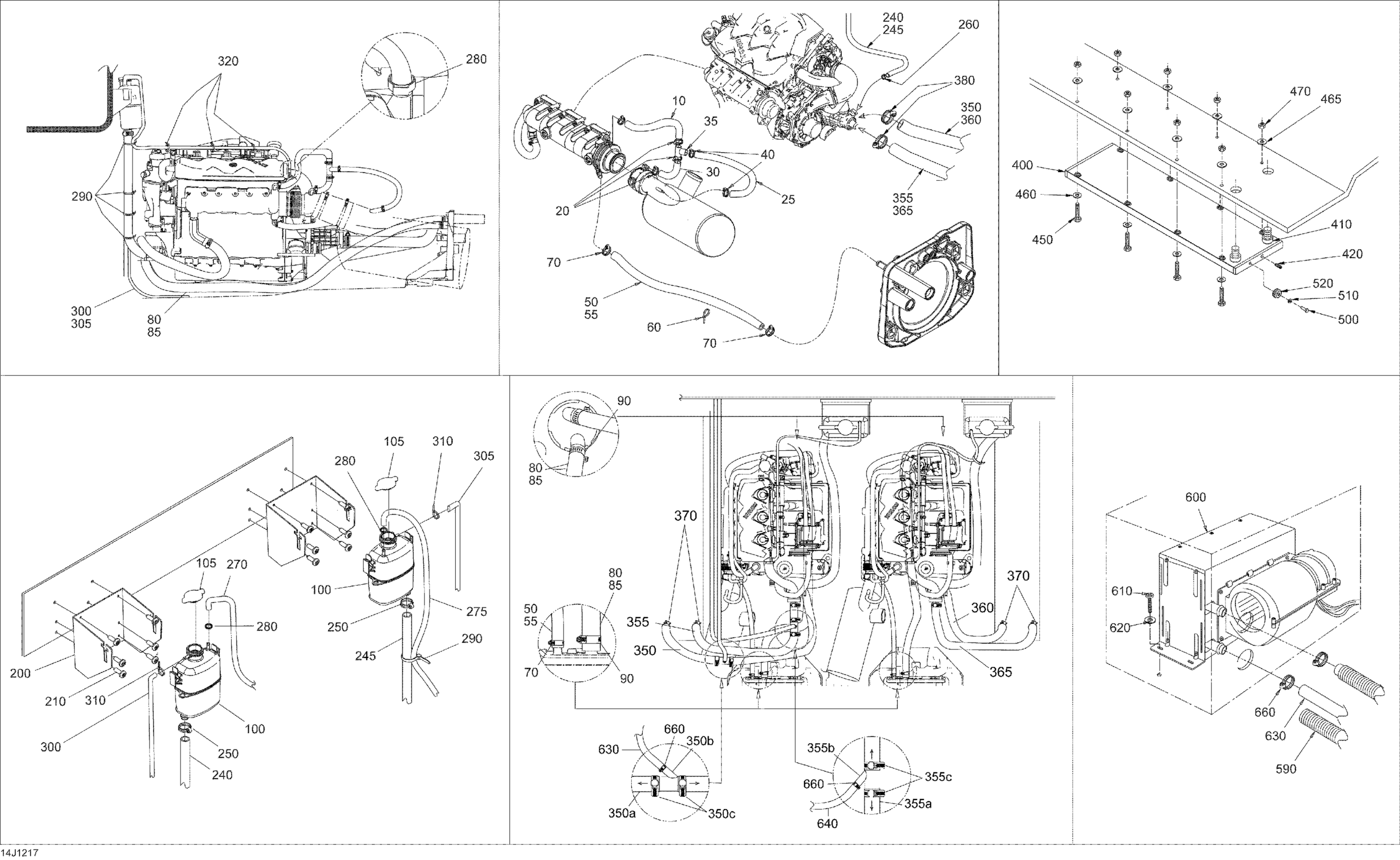

Sea-doo 230 Wake 430, 2012 Cooling System Diagram

#

Description
Price

10

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

20

Tridon Gear Clamp

293650172

$2.68

25

Formed Hose | Without Catalyst

276000246

$14.92

30

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

35

T-Fitting

293710116

$14.27

40

Tridon Gear Clamp

293650171

$2.46

50

Was 276000001 Hose 12.5 mm

219704394

$42.87

55

Was 276000001 Hose 12.5 mm

219704394

$42.87

60

Tie Wrap 368 mm

293750008

$0.85

70

Tridon Gear Clamp

293650172

$2.68

80

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

85

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

90

Tridon Gear Clamp

293650051

$3.61

100

Coolant Tank

276000086

$87.72

105

Pressure Cap | Includes 720 to 720a

276000100

$20.77

200

COOLANT TANK BRACKET - Call your local BRP dealership

276000288

Unavailable

210

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

240

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

245

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

250

Tridon Gear Clamp

293650051

$3.61

260

Tridon Gear Clamp

293650019

$4.81

270

Was 275500549 Hose 1/4"

219704357

$178.33

275

Was 275500549 Hose 1/4"

219704357

$178.33

280

Oetiker Gear Clamp

293650025

$2.46

290

Tie Wrap 142 mm

293750002

$0.88

300

Polyurethane Hose 10000Mm Long

219704410

$46.12

305

Polyurethane Hose 10000Mm Long

219704410

$46.12

310

Tie Wrap 94 mm | 4X4

293750001

$0.83

320

Tie Wrap 142 mm

293750002

$0.88

350

HOSE-ASSY B - Call your local BRP dealership

276000284

Unavailable

350a

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

350b

Y-Fitting | WAKE

204130174

Unavailable

350c

Tridon Gear Clamp

293650045

$4.51

355

HOSE-ASSY A - Call your local BRP dealership

276000285

Unavailable

355a

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

355b

Y-Fitting | WAKE

204130174

Unavailable

355c

Tridon Gear Clamp

293650045

$4.51

360

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

365

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

370

Tridon Gear Clamp

293650045

$4.51

380

Tridon Gear Clamp

293650045

$4.51

400

HEAT EXCHANGER - Call your local BRP dealership

276000299

Unavailable

410

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

420

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

450

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

460

Flat Washer 10 mm, Stainless

234000600

$1.07

465

Flat Washer 10 mm, Stainless

234002600

$1.85

470

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

500

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

510

Stainless Flat Washer M6

234061600

$0.25

520

Anode Zinc

271001813

$13.62

590

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

600

HEATER UNIT - Call your local BRP dealership | WAKE

204300198

Unavailable

600a

Male Housing, 3 Circuits

278000273

$7.59

600b

Female Terminal

278000223

$2.55

600c

Wire Seal

278000218

$3.48

610

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

620

Flat Washer 5 mm, Stainless

234052600

$0.64

630

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

640

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

650

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

660

Tridon Gear Clamp

293650019

$4.81
