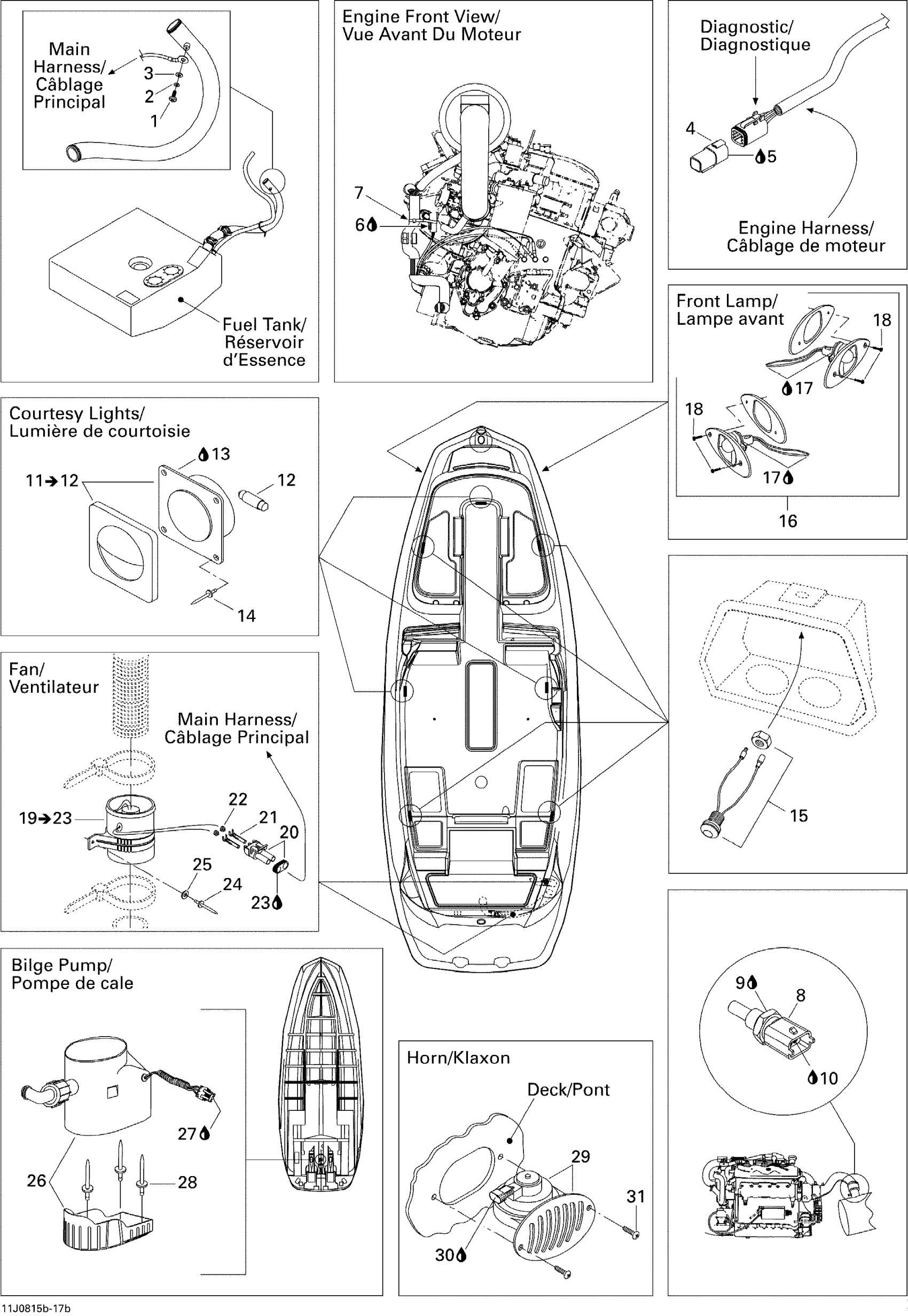

Sea-doo 230 Wake 430, 2008 Electrical Accessories 2 Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Lock Washer 4 mm

234141601

$1.06

3

Flat Washer 4 mm, Stainless

234041600

$0.91

4

Diagnostic Connector

278002704

$15.57

5

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

Tie-Rap 180 mm

414115200

$0.09

8

Temperature Sensor

278002895

$31.82

9

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

Courtesy Light Ass'y | Includes 29 to 30

204470026

$44.00

12

BULB - Call your local BRP dealership

204470081

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

14

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

15

LED Light Ass'y

204471169

Unavailable

16

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

18

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

19

Fan Ass'y | Includes 44 to 47

204470108

$114.37

20

Male Connector, 2 Circuits

278000220

$11.02

21

Female Terminal

278000223

$2.55

22

Wire Seal

278000218

$3.48

23

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

24

Pop Rivet 3/16"

293150008

$0.40

25

Flat Washer 5 mm, Stainless

234052600

$0.64

26

PUMP BILGE 750 GPH replaced by RM-800 - Call your local BRP dealership | WAKE This part replaces 204471202.

278002977

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

28

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

29

HORN - Call your local BRP dealership

204470801

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

31

Phillips Tapping Screw M4.2 X 32

209943260

$1.40
