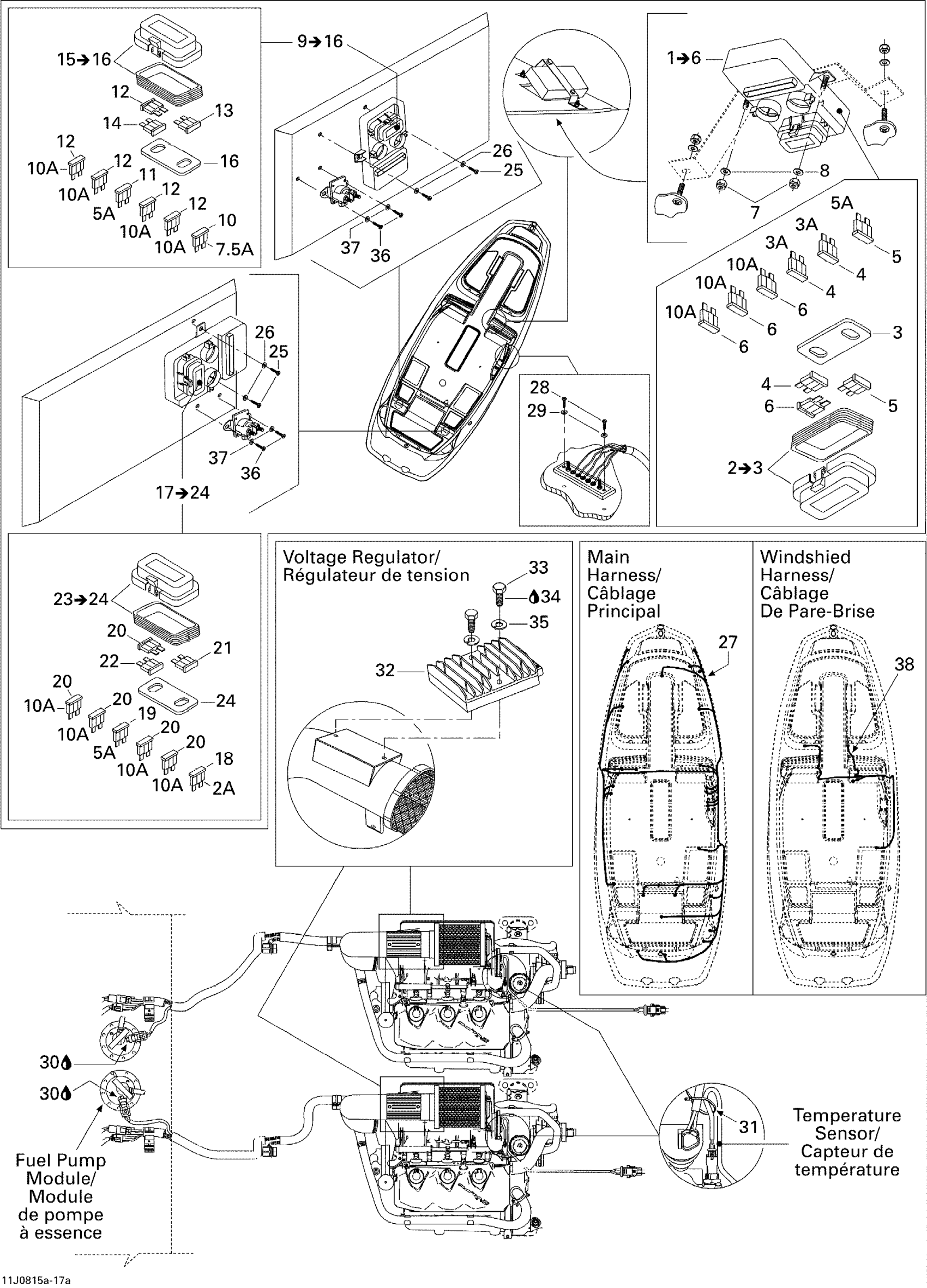

Sea-doo 230 Wake 430, 2008 10- Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Flat Washer M6, Stainless

234062600

$0.77

9

Fuse Block | Includes 4 to 11

204471091

Unavailable

10

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

11

Fuse, 5 Amperes | CE

278000344

$3.28

12

Fuse, 10 Amperes | North America

278001197

$2.21

13

Fuse, 20 Amperes

409003900

$3.28

14

Fuse, 30 Amperes

410917200

$3.28

15

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

16

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

17

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

18

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

19

Fuse, 5 Amperes | CE

278000344

$3.28

20

Fuse, 10 Amperes | North America

278001197

$2.21

21

Fuse, 20 Amperes

409003900

$3.28

22

Fuse, 30 Amperes

410917200

$3.28

23

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

24

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

25

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

ACCESSORY HARNESS ASS'Y - Call your local BRP dealership

204471231

Unavailable

28

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

29

Flat Washer 4 mm, Stainless

234041600

$1.15

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Tie Wrap 142 mm

293750002

$1.25

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

33

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Lock Washer 1/4”

211200025

$1.29

36

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

37

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

38

WINDSHIELD HARNESS - Call your local BRP dealership | Retractable Windshield

204471198

Unavailable
