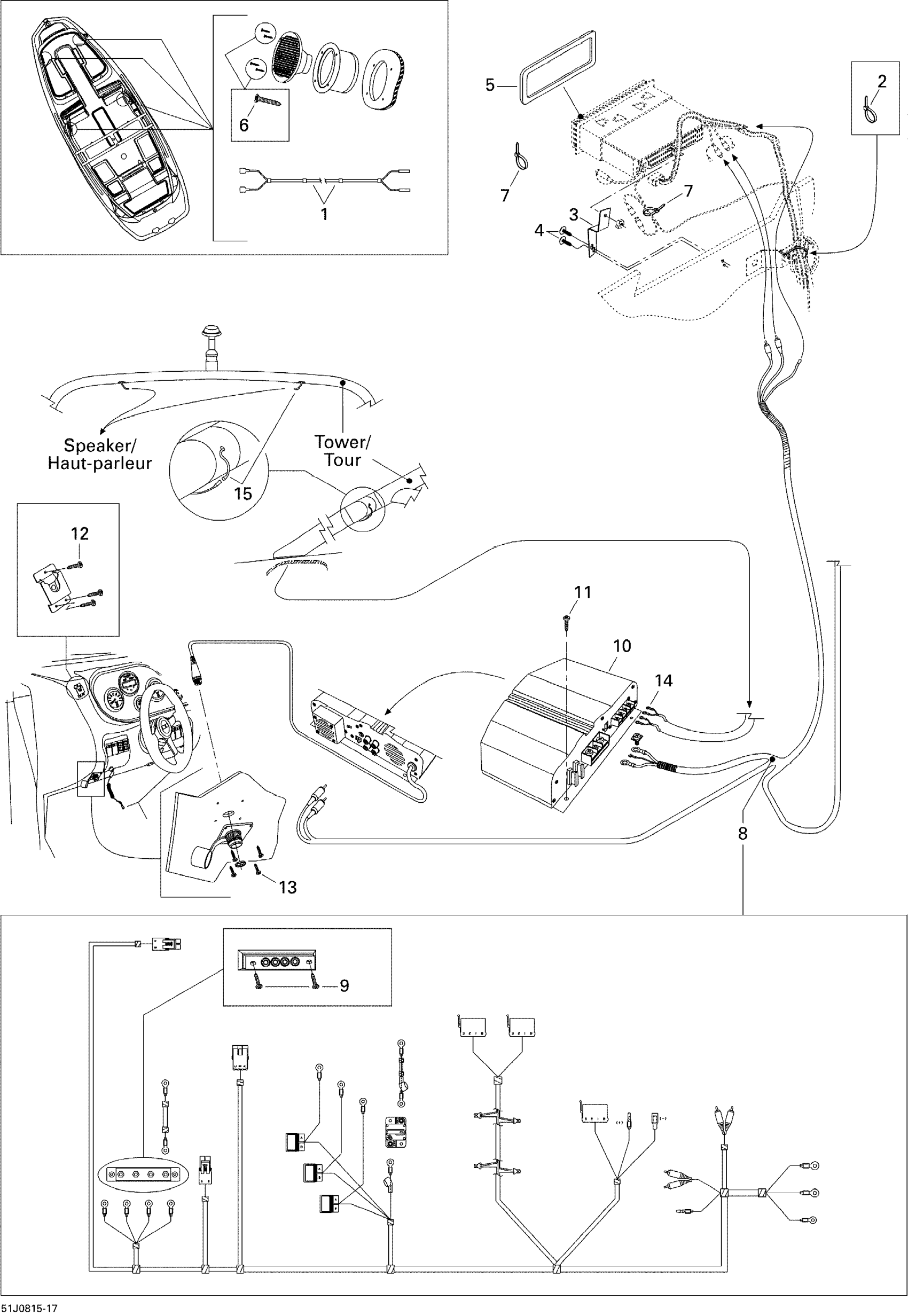

Sea-doo 230 Wake 430, 2008 10- Amplifier And Tower Speakers Diagram

#

Description
Price

1

SPEAKER EXTENSION HARNESS - Call your local BRP dealership

204471209

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

RADIO SUPPORT - Call your local BRP dealership

204471284

Unavailable

4

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

5

STEREO TRIM RING - Call your local BRP dealership

204471010

Unavailable

6

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8

ACCESSORY HARNESS, WAKE - Call your local BRP dealership

204471197

Unavailable

9

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

10

Amplifier And Tower Speakers

204471045

Unavailable

11

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

12

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

13

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

14

Terminal Ring Connector

204471087

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable
