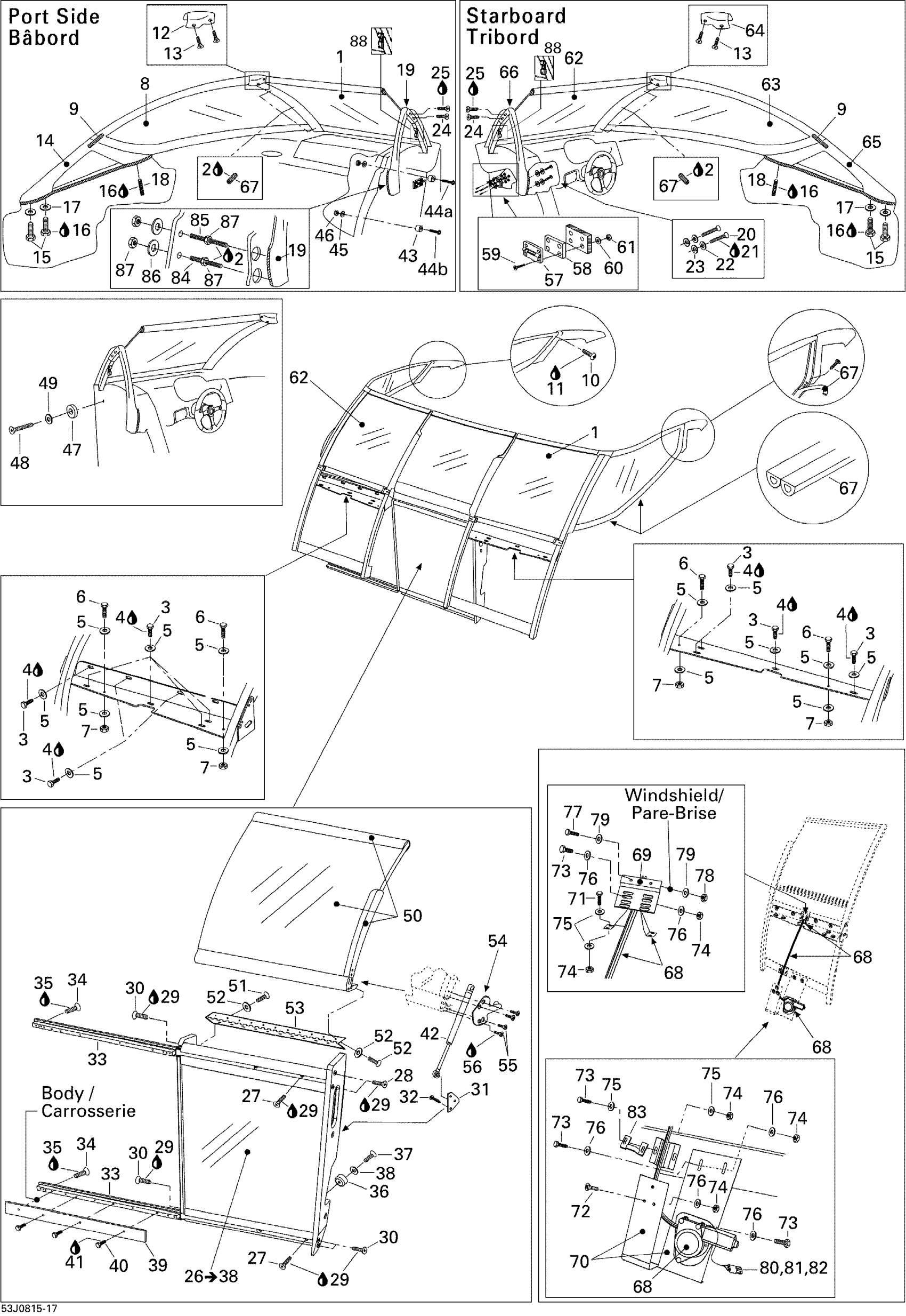

Sea-doo 230 Wake 430, 2008 Windshield, Retractable Diagram

#

Description
Price

1

WINDSHIELD GATE ASS'Y, PORT SIDE - Call your local BRP dealership

204072991

Unavailable

2

Loctite 243, 10 ml

293800060

$21.49

3

Hex. Screw M6 X 16

207161660

$1.59

4

Loctite 243, 10 ml

293800060

$21.49

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Screw M6 X 25

207162560

$1.47

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

WINDSHIELD WING ASS'Y, PORT SIDE - Call your local BRP dealership

204072506

Unavailable

9

STAINLESS STEEL DOWEL PIN 1/4 - Call your local BRP dealership

204130183

Unavailable

10

SCREW M5 X 10 - Call your local BRP dealership

208651060

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Corner Cap, Port Side

204072925

Unavailable

13

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

14

Windshield Wing Support, Port Side

204072833

Unavailable

15

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Stanchion, Port Side

204072534

Unavailable

20

Hex. Screw M8 X 18

207181860

$1.48

21

Loctite 243, 10 ml

293800060

$21.49

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

Lock Washer 8 mm, Stainless

234181601

$0.55

24

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Sliding Door Ass'y | Includes 26 to 38

204440021

Unavailable

27

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

28

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

29

Loctite 243, 10 ml

293800060

$21.49

30

Phillips Screw M6 X 25

208562560

$2.32

31

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

32

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

33

Drawer Slides, Long

204070612

Unavailable

34

Phillips Screw M4 X 12

208641260

$1.03

35

Loctite 243, 10 ml

293800060

$21.49

36

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

37

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

38

Flat Washer M3, Stainless

234032600

$0.55

39

Walk-Thru Door Support

204072896

Unavailable

40

Hex. Screw M6 X 30

207163060

$1.48

41

Loctite 243, 10 ml

293800060

$21.49

42

GAS SHOCK - Call your local BRP dealership

204072899

Unavailable

43

LOCATOR STUD - Call your local BRP dealership

204130166

Unavailable

44a

Socket Screw M5 X 60

205056060

$2.11

44b

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205053560

Unavailable

45

Flat Washer M5, Stainless

234051600

$0.77

46

Hex. Elastic Nut M5 | X

232551600

$1.15

47

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

48

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

49

Flat Washer M3, Stainless

234032600

$0.55

50

CENTER DOOR WINDOW - Call your local BRP dealership

204072727

Unavailable

51

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

52

Flat Washer 4 mm, Stainless

234041600

$1.15

53

HINGE - Call your local BRP dealership

204073092

Unavailable

54

Shock Support, Port Side

204072900

Unavailable

54

Shock Support, Starboard

204072901

Unavailable

55

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

56

Loctite 243, 10 ml

293800060

$21.49

57

DOOR LATCH - Call your local BRP dealership

204100204

Unavailable

58

Latch Spacer 3/8"

204072976

Unavailable

58

LATCH SPACER 1/8 - Call your local BRP dealership

204072977

Unavailable

59

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

59

Phillips Screw M4 X 30

208443060

$1.48

60

Flat Washer 4 mm, Stainless

234041600

$1.15

61

Elastic Stop Nut M4

232541600

$1.15

62

WINDSHIELD GATE ASS'Y, STARBOARD - Call your local BRP dealership

204072995

Unavailable

63

Windshield Wing Ass'y, Starboard

204072517

Unavailable

64

Corner Cap, Starboard

204072926

Unavailable

65

Windshield Wing Support, Starboard

204072834

Unavailable

66

Stanchion, Starboard

204072741

Unavailable

67

WINDSHIELD INSTALLATION HARDWARE KIT - Call your local BRP dealership

204072544

Unavailable

68

WINDSHIELD ACTUATOR - Call your local BRP dealership

204072539

Unavailable

69

WINDSHIELD ACTUATOR BRACKET - Call your local BRP dealership

204073015

Unavailable

70

ACTUATOR MOTOR SUPPORT - Call your local BRP dealership

204073014

Unavailable

71

Hex. Screw M6 X 45

207164560

$1.89

72

Phillips Screw M6 X 25

208562560

$2.32

73

Hex. Screw M6 X 16

207161660

$1.59

74

Hex. Elastic Stop Nut M6

232561600

$1.15

75

Stainless Flat Washer M6

234061600

$0.33

76

Flat Washer M6, Stainless

234062600

$0.77

77

Hex. Screw M5 X 20

207152060

$1.47

78

Hex. Elastic Nut M5 | X

232551600

$1.15

79

Flat Washer M5, Stainless

234051600

$0.77

80

Female Housing, 2 Circuits

278000217

$9.59

81

Male Terminal | XT Models

278000222

$3.19

82

Wire Seal

278000218

$4.39

83

WINDSHIELD STOPPER - Call your local BRP dealership

204440029

Unavailable

84

THREADED STUD M8 X 60 - Call your local BRP dealership

204100217

Unavailable

85

THREADED STUD M8 X 80 - Call your local BRP dealership

204100218

Unavailable

86

Flat Washer 8 mm, Stainless

234082600

$2.43

87

Hex. Elastic Nut M8

232581600

$1.48

88

Door Latch

204072875

Unavailable
