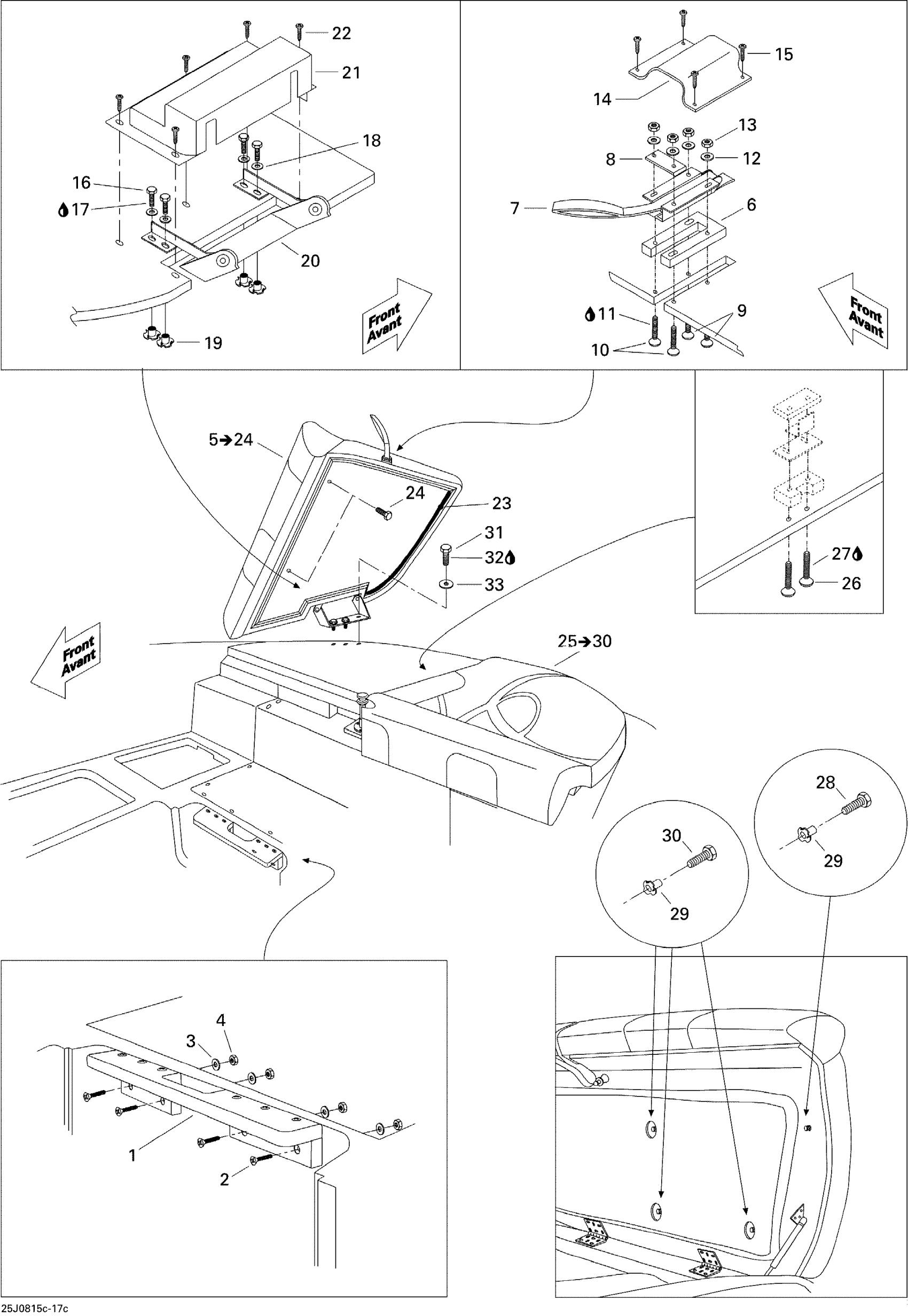

Sea-doo 230 Wake 430, 2008 Seat, Rear View 2 Diagram

#

Description
Price

1

Seat Support Ass'y

204614380

Unavailable

2

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.77

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Sundeck Cushion | Includes 5 to 24

204614208

Unavailable

6

Spacer

204614361

Unavailable

7

LATCH STRAP - Call your local BRP dealership

204614362

Unavailable

8

RETAINING LATCH - Call your local BRP dealership

204614370

Unavailable

9

Flange Head Tapping Ph. Screw M4 X 35

208443570

Unavailable

10

Screw M4 x 40

208444060

Unavailable

11

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

12

Flat Washer 4 mm, Stainless

234041600

$1.15

13

Elastic Stop Nut M4

232541600

$1.15

14

Latch Cover

204614378

Unavailable

15

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

16

TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership

204100134

Unavailable

17

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

18

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

19

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

20

Hinge Ass'y

204614364

Unavailable

21

Hinge Cover

204614438

Unavailable

22

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

23

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

24

SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership

204100037

Unavailable

25

Sundeck Cushion | Includes 25 to 30

204614210

Unavailable

26

Screw M4 x 40

208444060

Unavailable

27

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

28

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

29

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

30

PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership

204100201

Unavailable

31

SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership

204100037

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable
