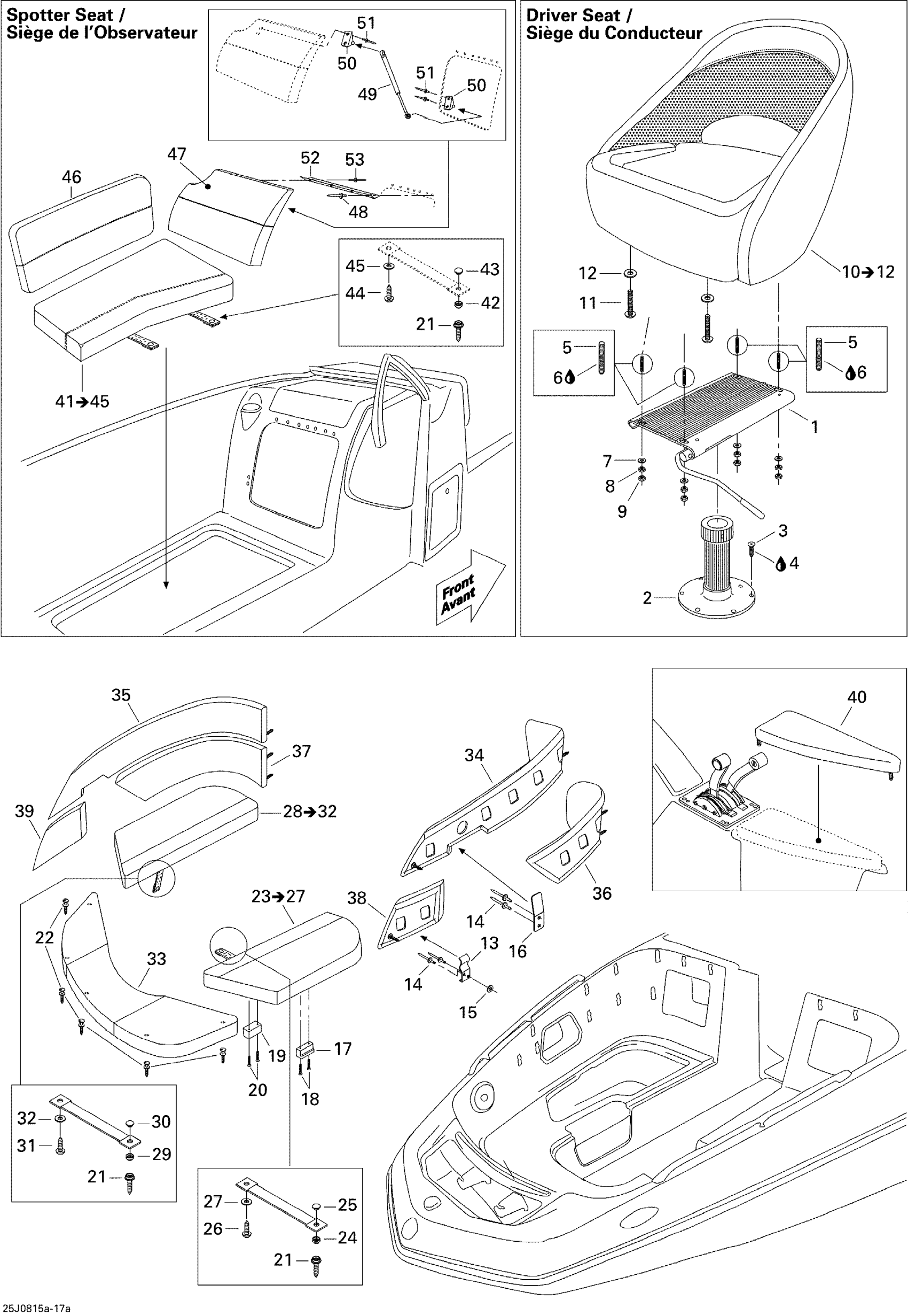

Sea-doo 230 Wake 430, 2008 09- Seat, Front View Diagram

#

Description
Price

1

SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership

204613742

Unavailable

2

SEAT PEDESTAL - Call your local BRP dealership

269001903

Unavailable

3

PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership

204100201

Unavailable

4

Loctite 243, 10 ml

293800060

$21.49

5

SEAT STUD 1/4-20 X 2 1/2 - Call your local BRP dealership

204613795

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Lock Washer 1/4”

211200025

$1.29

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

10

Bucket Seat Ass'y | Includes 10 to 12

204613769

Unavailable

11

Pan Head Phillips Screw 1/4-20

204100125

Unavailable

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

14

Pop Rivet 3/16"

293150043

$2.09

15

Stainless Flat Washer M6

234061600

$0.33

16

RETAINING CLIP - Call your local BRP dealership

204611531

Unavailable

17

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

18

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

19

LATCH - Call your local BRP dealership

204611805

Unavailable

20

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable

21

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

22

Dart

293730021

$7.79

23

Front Side Cushion, Port Side | Portside, Includes 23 to 27

204613781

Unavailable

24

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

25

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

26

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

27

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

28

Front Side Cushion, Starboard | Starboard, Includes 28 to 32

204613779

Unavailable

29

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

30

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

31

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

32

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

33

Front Cushion Ass'y

204613783

Unavailable

34

FRONT UPPER SIDE BACKREST, PORT SIDE - Call your local BRP dealership

204613777

Unavailable

35

FRONT UPPER SIDE BACKREST, STARBOARD - Call your local BRP dealership

204613775

Unavailable

36

Front Lower Side Backrest, Port Side

204613970

Unavailable

37

Front Lower Side Backrest, Starboard

204613968

Unavailable

38

Front Side Backrest, Port Side

204613971

Unavailable

39

Front Side Backrest, Starboard

204613969

Unavailable

40

Elbow Rest Cushion Ass'y, Starboard

204613785

Unavailable

41

Spotter Cushion Ass'Y | Includes 41 to 45

204613770

Unavailable

42

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

43

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

44

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

45

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

46

Spotter Side Backrest

204613771

Unavailable

47

Storage Backrest

204614418

Unavailable

48

Pop Rivet 3/16"

293150043

$2.09

49

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

50

Shock Bracket

204073074

$27.99

51

Pop Rivet 3/16"

293150008

$0.50

52

Hinge

204613980

Unavailable

53

Pop Rivet 3/16"

293150008

$0.50
