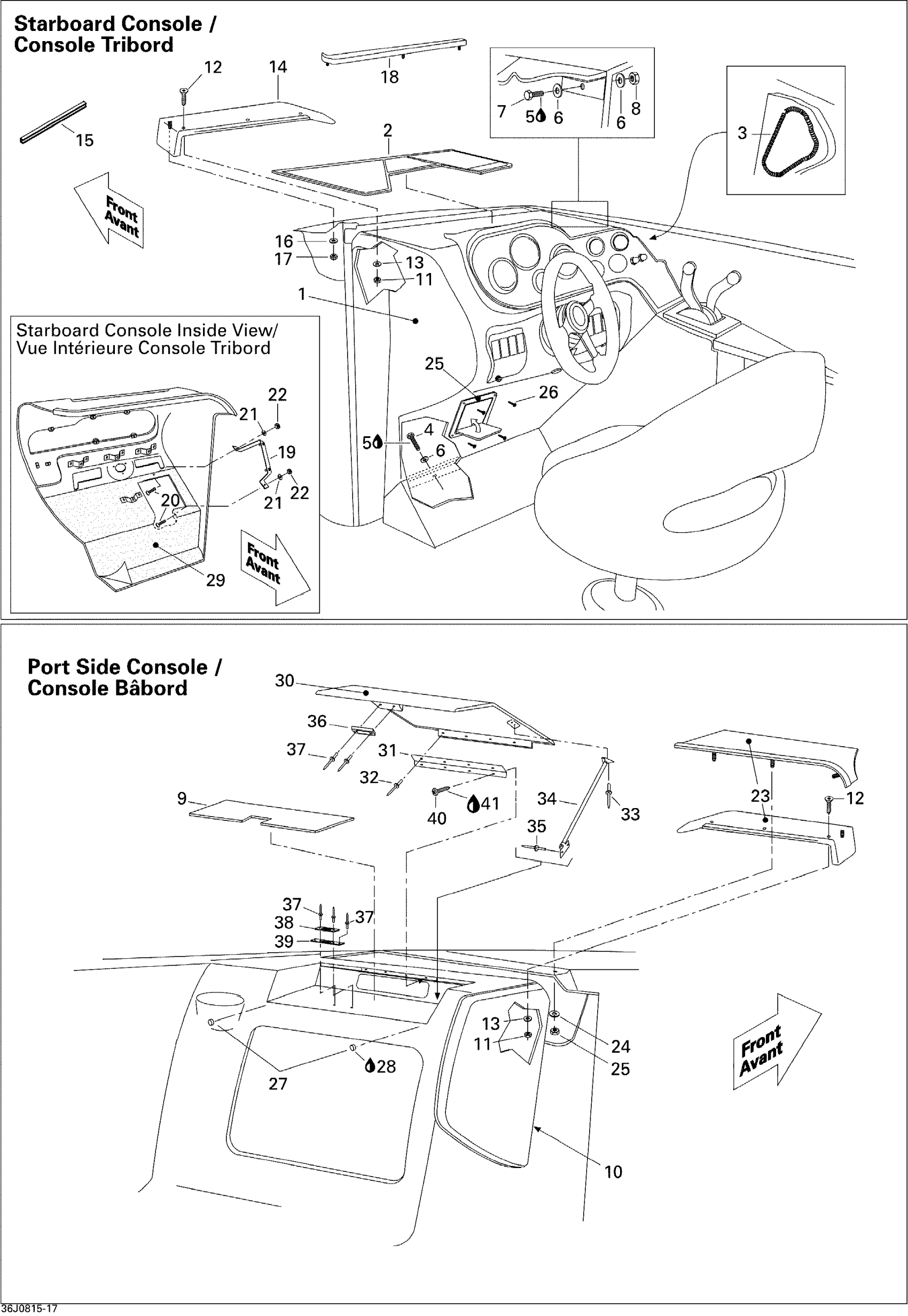

Sea-doo 230 Wake 430, 2008 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Ass'y, Starboard

204073106

Unavailable

1

Console Ass'y, Starboard | Retractable Windshield

204072495

Unavailable

2

DASHBOARD MAT - Call your local BRP dealership

204073047

Unavailable

3

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

4

Hex. Screw M6 X 30

207163060

$1.48

5

Loctite 243, 10 ml

293800060

$21.49

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Screw M6 X 45

207164560

$1.89

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

MAT - Call your local BRP dealership

204073048

Unavailable

10

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Console Cap Ass'y, Starboard

204073105

Unavailable

14

CONSOLE CAP ASS'Y, STARBOARD - Call your local BRP dealership | Retractable Windshield

204072689

Unavailable

15

TRIM, BLACK, 7/16?, METER - Call your local BRP dealership

204072752

Unavailable

16

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

17

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

18

Console Filler Pad, Starboard

204073089

Unavailable

19

Interface Bracket | Includes 14 to 15

204072325

Unavailable

20

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

21

Stainless Flat Washer M6

234061600

$0.33

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Console Cap Ass'y, Port Side

204073102

Unavailable

23

CONSOLE CAP ASS'Y, PORT SIDE - Call your local BRP dealership | Retractable Windshield

204072688

Unavailable

24

Console Filler Pad, Port Side

204073088

Unavailable

25

ACCESS DOOR - Call your local BRP dealership

204072447

Unavailable

26

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

27

BUMPER - Call your local BRP dealership

204070940

Unavailable

28

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

29

Console Carpet, Starboard

204072980

Unavailable

30

GLOVE BOXE UPPER COVER - Call your local BRP dealership

204073523

Unavailable

31

HINGE, BLACK - Call your local BRP dealership

204073197

Unavailable

32

Rivet 1/8”

293150057

Unavailable

33

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

34

HATCH SPRING - Call your local BRP dealership

204072937

Unavailable

35

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

36

MAGNETIC CATCH - Call your local BRP dealership

204072907

Unavailable

37

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

38

LATCH BRACKET - Call your local BRP dealership

204072908

Unavailable

39

LATCH SPACER - Call your local BRP dealership

204073168

Unavailable

40

Socket Head Screw M4 X 16

205441660

$1.47

41

Loctite 243, 10 ml

293800060

$21.49
